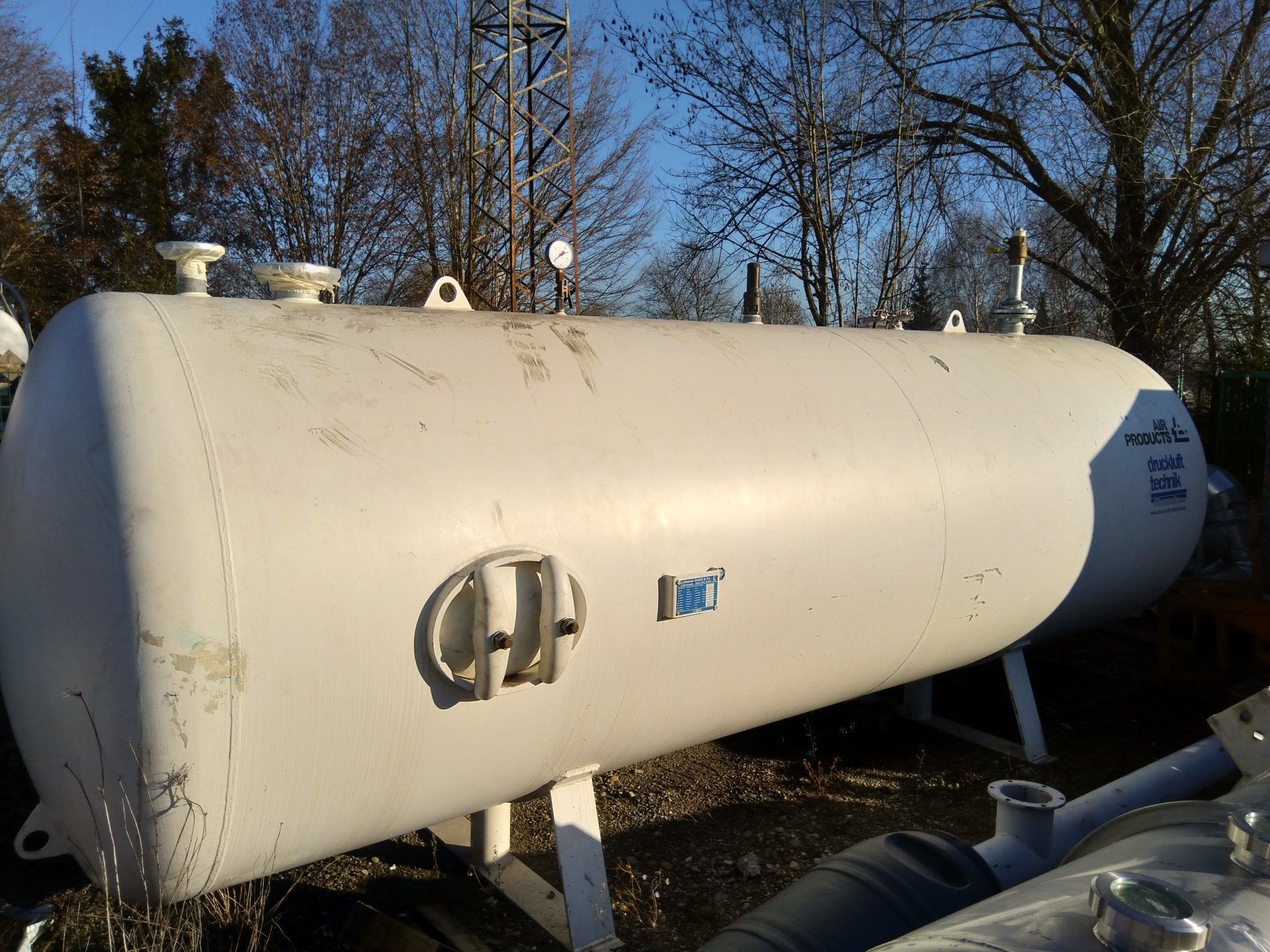

Compressed air tank 10 m³
Item number B 1000
Manufacturer: Lohenner GmbH & Co. KG
Content: 10 m³
Year of construction: 2008
Version: Galvanized, horizontal
Permissible operating pressure 0/11 bar
Permissible operating temperature: -10 / 50 ° C
Dimensions approx. (L) 5180 x (W) 1500 x (H) 2100 mm
Compressed air inlet: DN 100
Compressed air outlet: DN 100

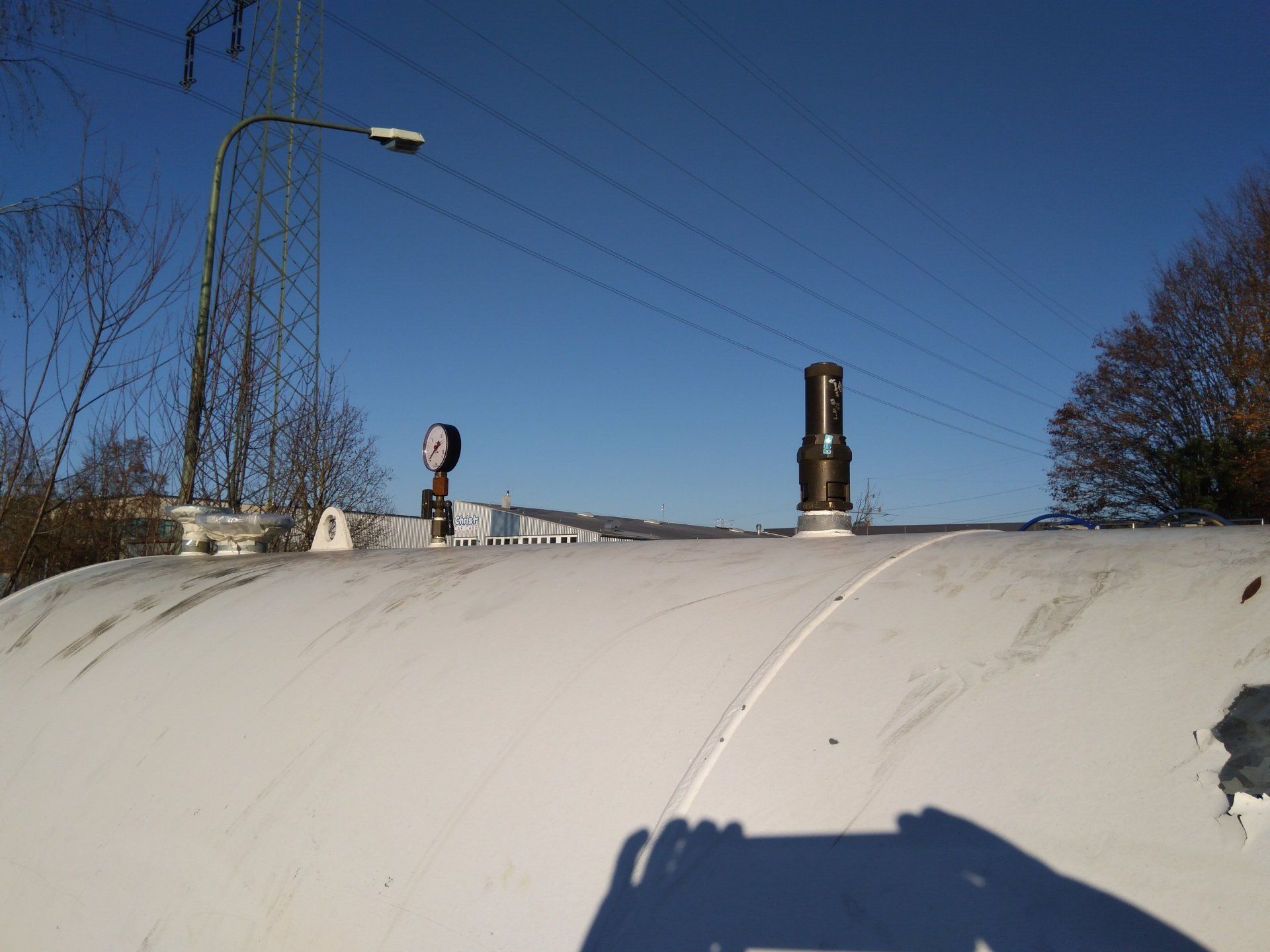

incl. Herose safety valve, blow-off capacity 1350 l / min
internal and strength test according to § 16 BetrSichV from 10/2018
Price 3000.00 € net plus VAT, free loading ex works
in stock
sold

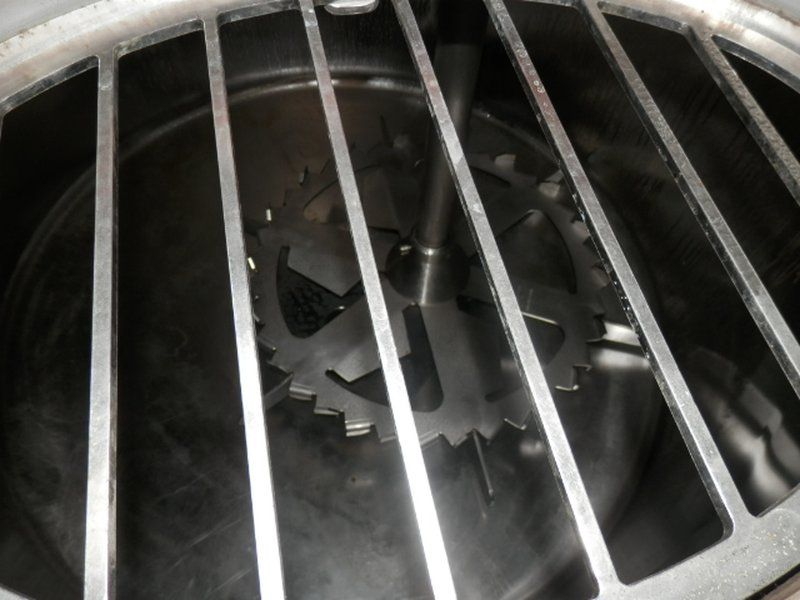

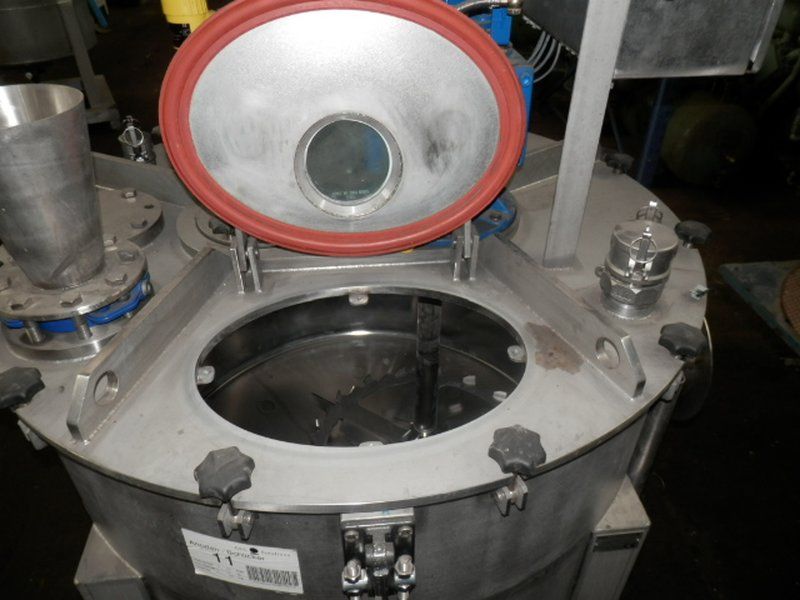

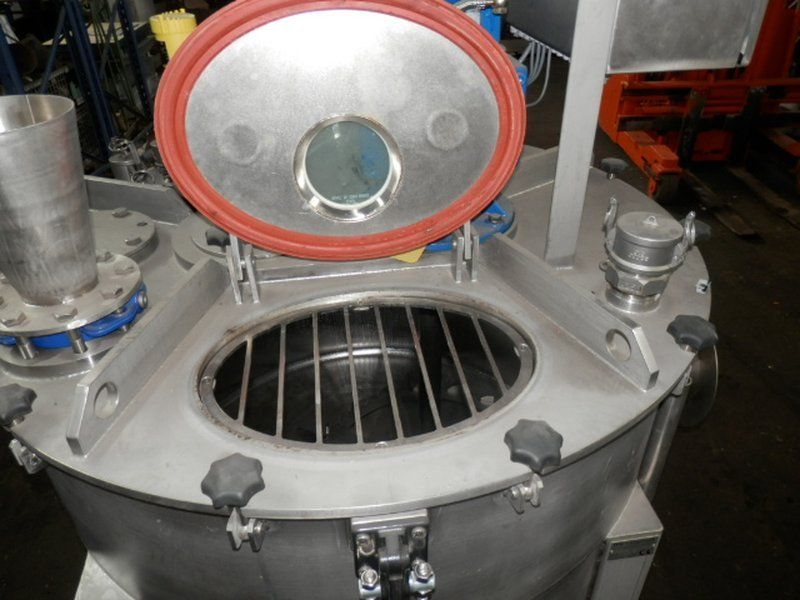

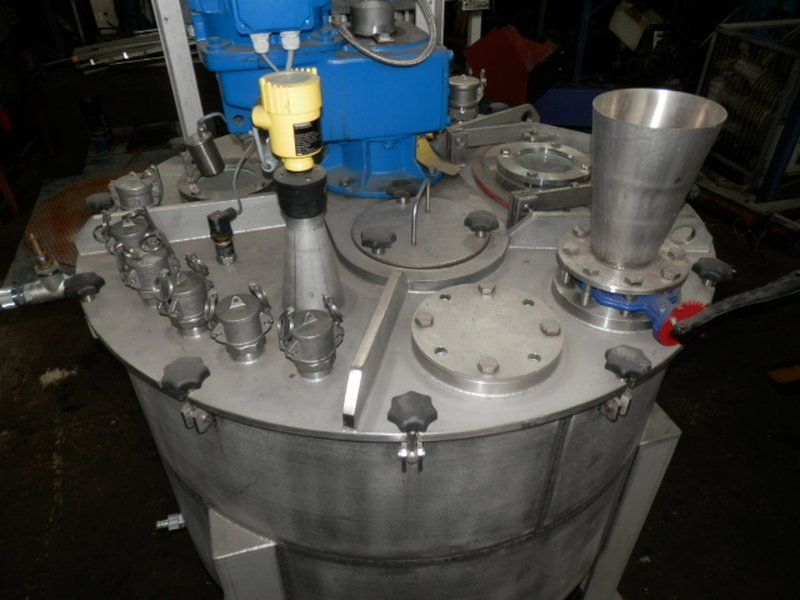

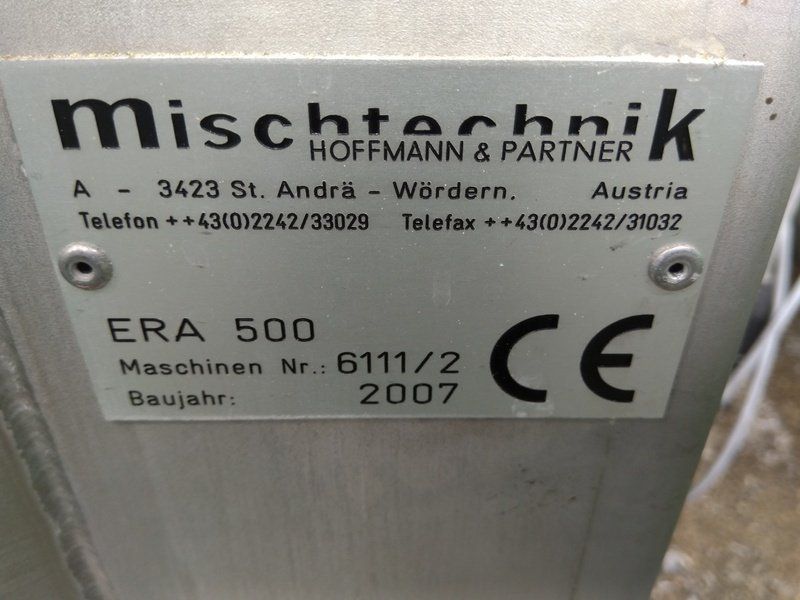

Mixing tank with agitator, double-walled for heating/cooling
Item number B 1137
Manufacturer: Hoffmann + Partner
Content: 500 litres
Year of construction: 2007
Version: Stainless steel, standing
Type: ERA 500
Machine number: 6111/2
Perm. operating pressure: -1 / 6 bar
Perm. operating temperature: 80°C
Internal dimension approx.: Cyl. height 700 x Ø 1100 mm
External dimensions approx.: 1400 x 1300 x 2100 mm (LxWxH),
Weight approx.780 KG
Mixer drive gear motor: Nord SK 132S/4; 400/690 V; 11,4/6,56 A; 50 Hz,
5,5 kW; 1445/307 rpm

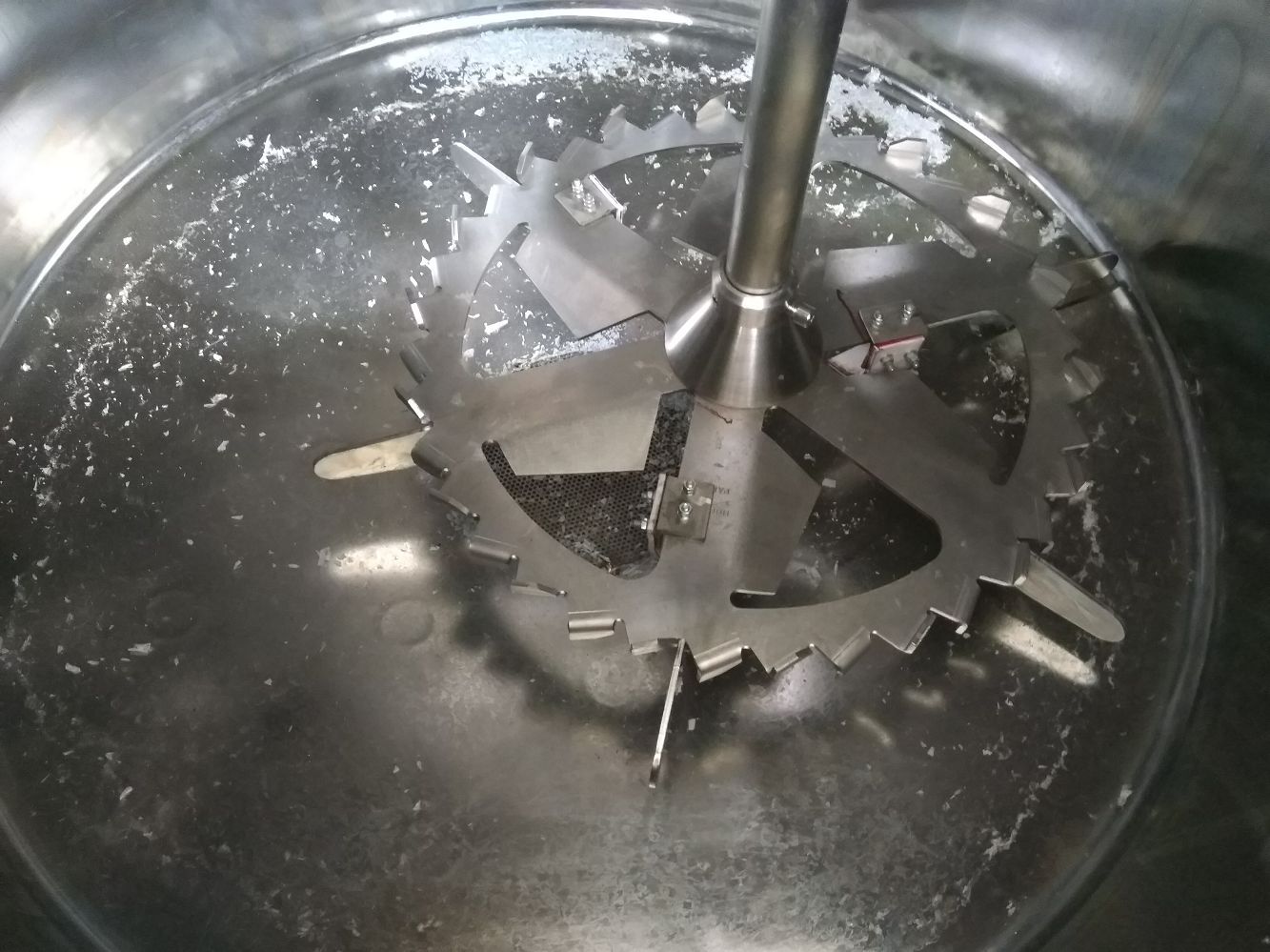

With Vegason 61 (ultrasonic sensor for continuous level measurement), Vegaswing 51, stirring disc dissolver disc, sight glass,
quick-coupling closures, manhole
Price on request
in stock
reserved

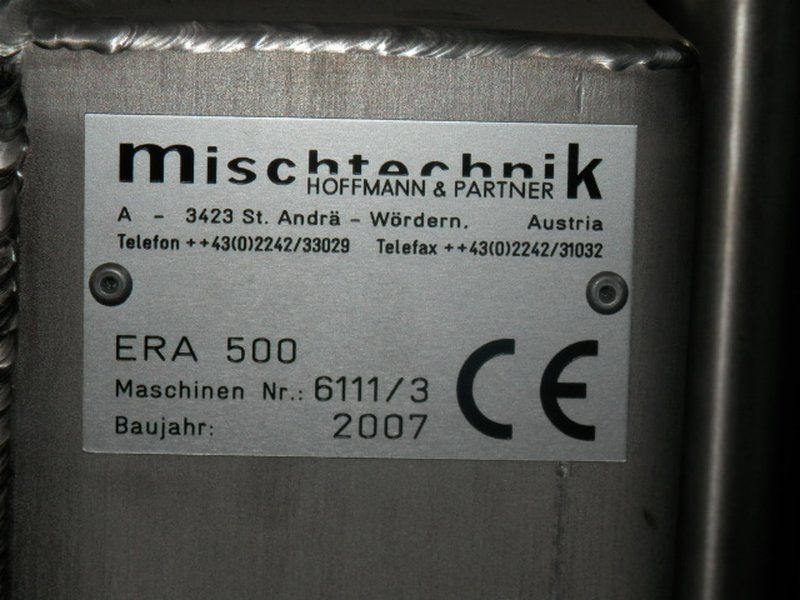

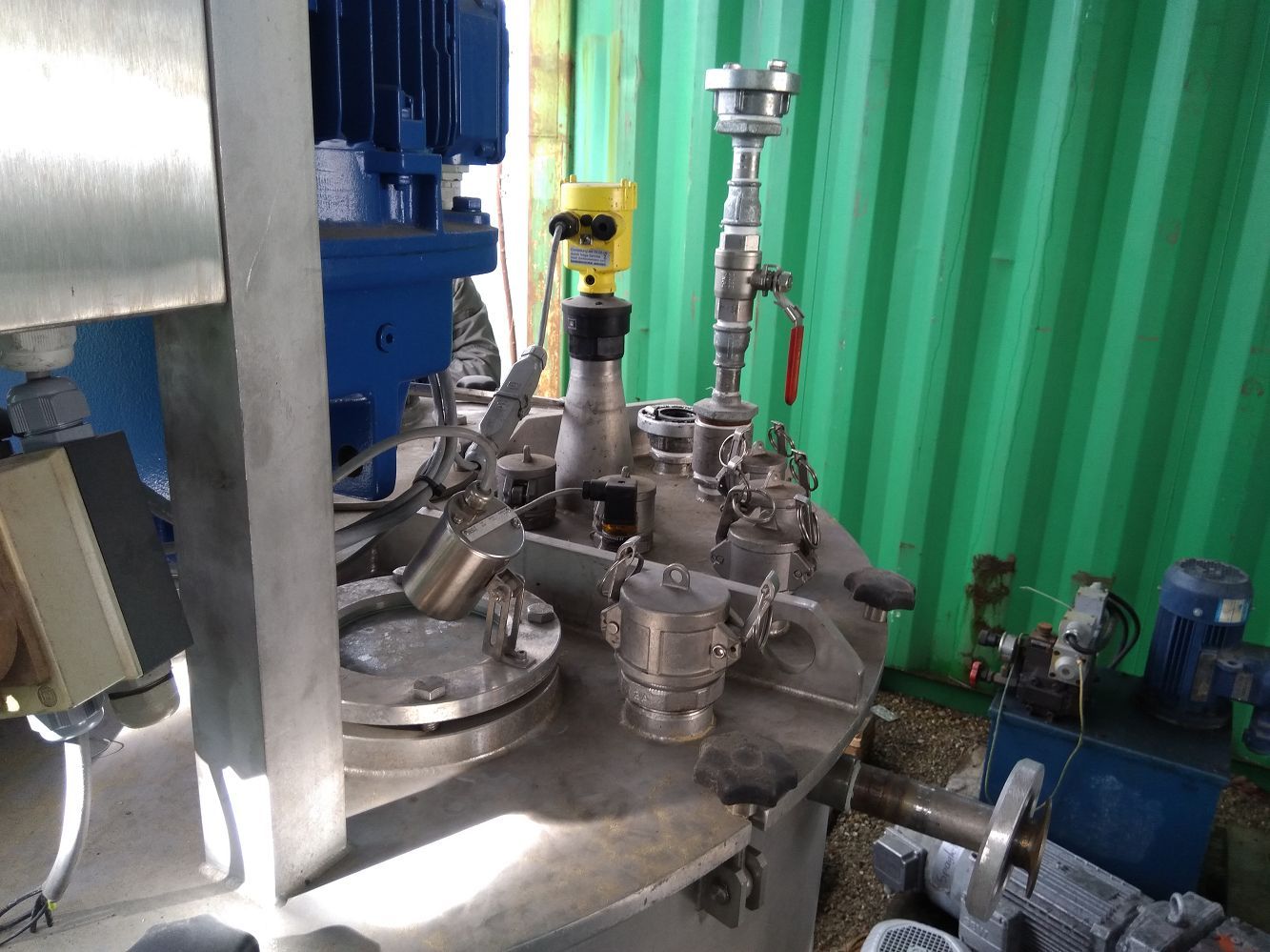

Mixing tank with agitator, double-walled for heating/cooling
Item number B 12507
Manufacturer: Hoffmann + Partner
Content: 500 litres
Year of construction: 2007
Version: Stainless steel, standing
Type: ERA 500
Machine number: 6111/3
Perm. operating pressure: -1 / 6 bar
Perm. operating temperature: 80°C
Internal dimension approx.: Cyl. height 700 x Ø 1100 mm
External dimensions approx.: 1400 x 1300 x 2100 mm (LxWxH),
Weight approx.780 KG
Mixer drive gear motor: Nord SK 132S/4; 400/690 V; 11,4/6,56 A; 50 Hz,
5,5 kW; 1445/307 rpm
With Vegason 61 (ultrasonic sensor for continuous level measurement), Vegaswing 51, stirring disc dissolver disc, sight glass,
quick-coupling closures, manhole
Price on request
reserved

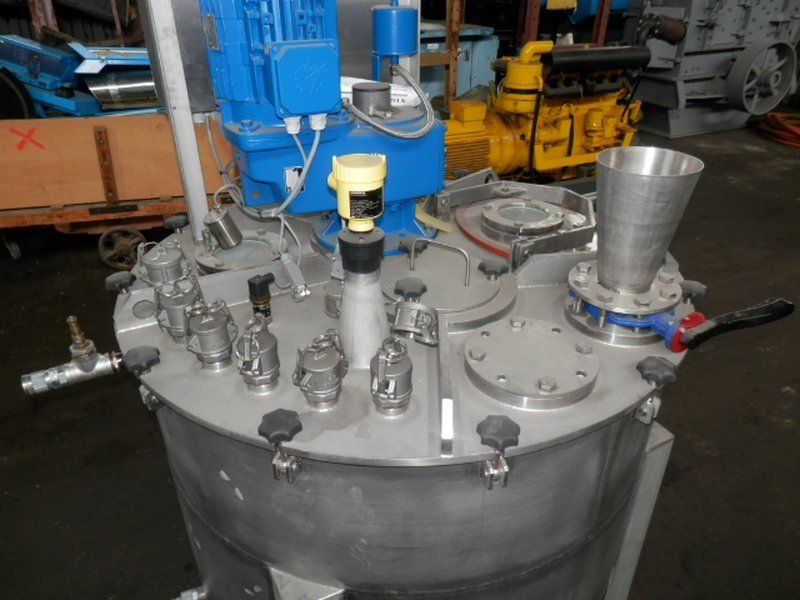

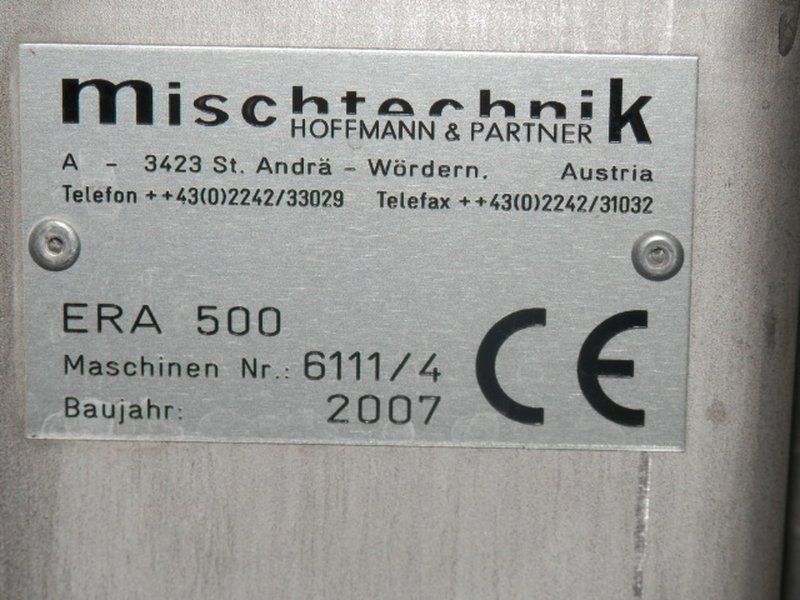

Mixing tank with agitator, double-walled for heating/cooling
Item number B 12508
Manufacturer: Hoffmann + Partner
Content: 500 litres
Year of construction: 2007
Version: Stainless steel, standing
Type: ERA 500
Machine number: 6111/4
Perm. operating pressure: -1 / 6 bar
Perm. operating temperature: 80°C
Internal dimension approx.: Cyl. height 700 x Ø 1100 mm
External dimensions approx.: 1400 x 1300 x 2100 mm (LxWxH),
Weight approx.780 KG
Mixer drive gear motor: Nord SK 132S/4; 400/690 V; 11,4/6,56 A; 50 Hz,
5,5 kW; 1445/307 rpm
With Vegason 61 (ultrasonic sensor for continuous level measurement), Vegaswing 51, stirring disc dissolver disc, sight glass,
quick-coupling closures, manhole
Price on request
reserved

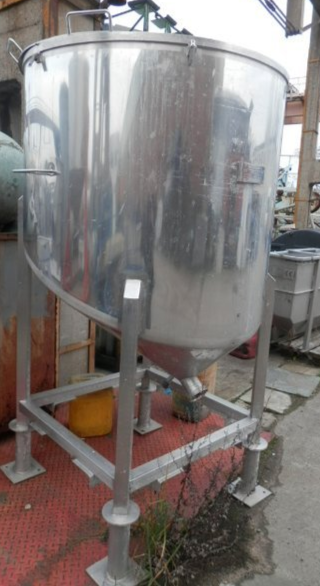

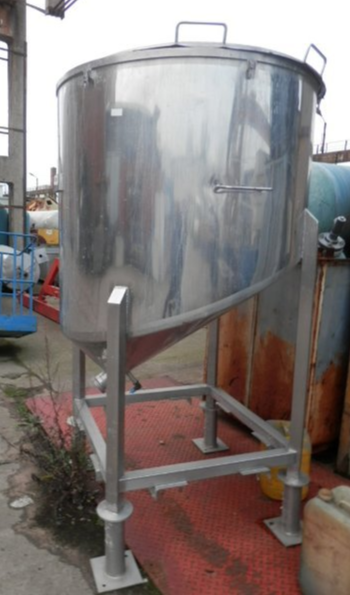

Stainless steel tank with cover
Item number B 12766
Manufacturer: Erweka Verpackungstechnik
Type: L-1000
Content: 1000 Liters
Diameter: approx. 1200 mm
Tank height to outlet: approx. 1600 mm
Outlet: 100 mm Total dimensions: Ø 1300 H 2100 mm
Price on request

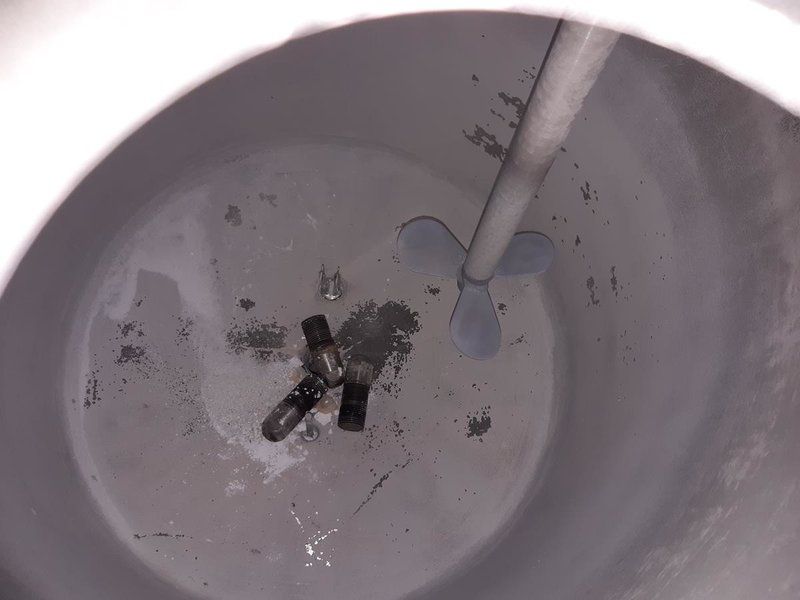

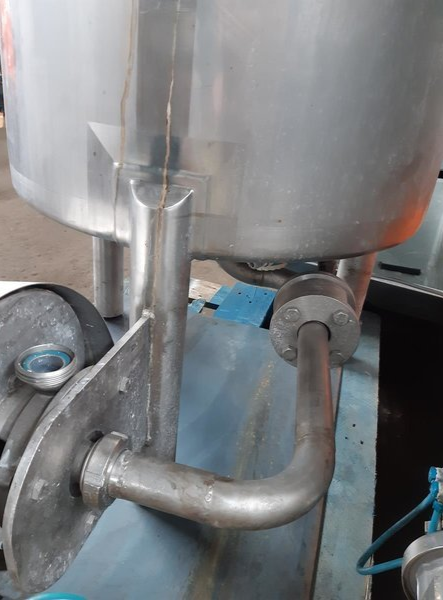

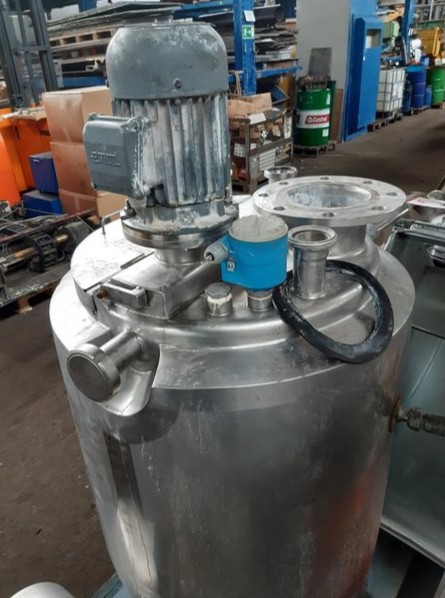

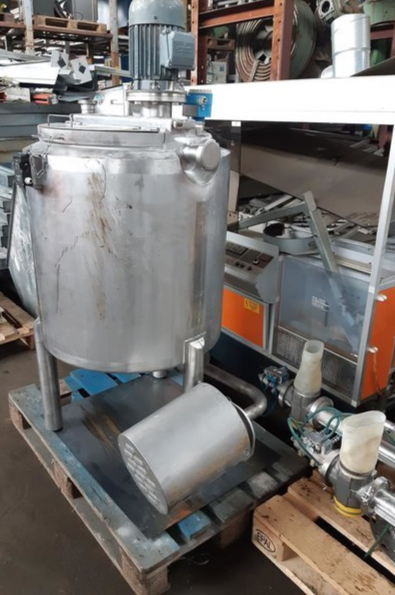

Stainless steel mixing tank with
propeller agitator
Item number B 15493
Manufacturer: unknown
Volume: 350 Liters
Diameter: approx. 800 mm
Cylindrical height: approx. 700 mm
Total dimensions: approx. Ø 900 H 1650 mm
Agitator drive: 2,2 kW 2835 rpm 230/400 V, IP55

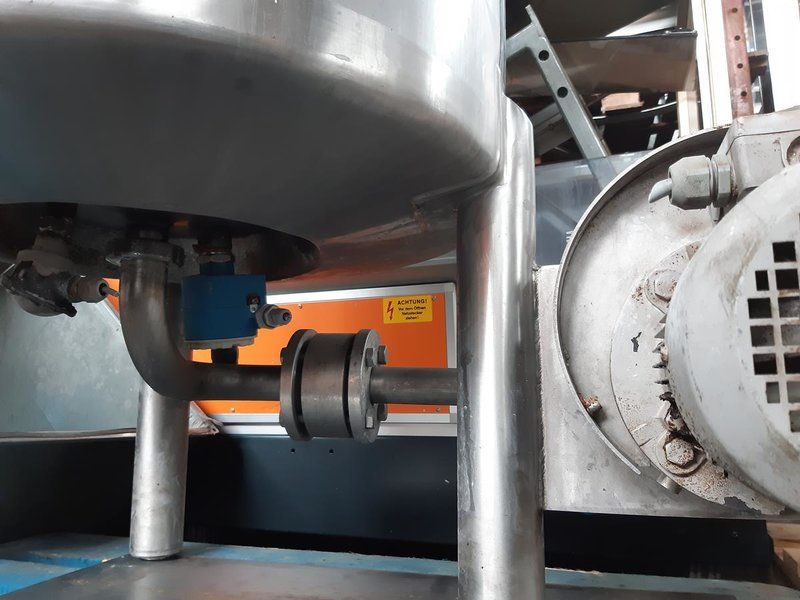

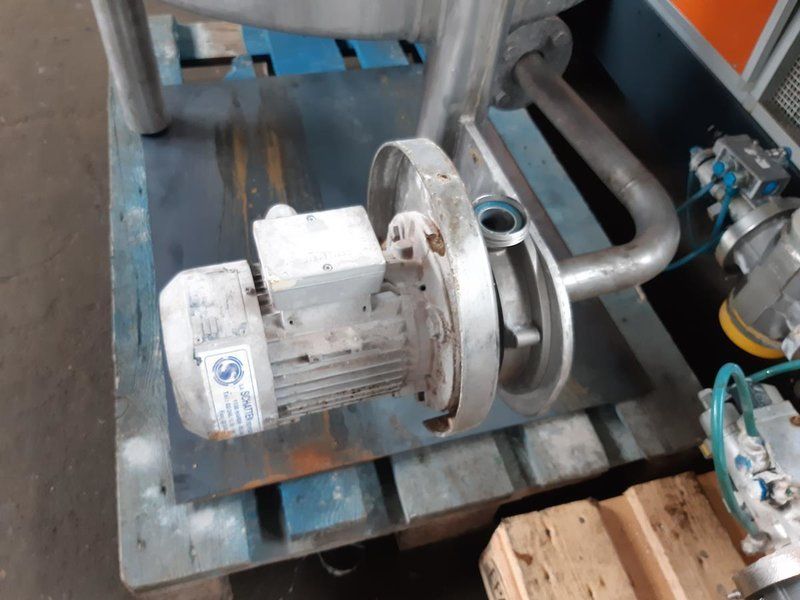

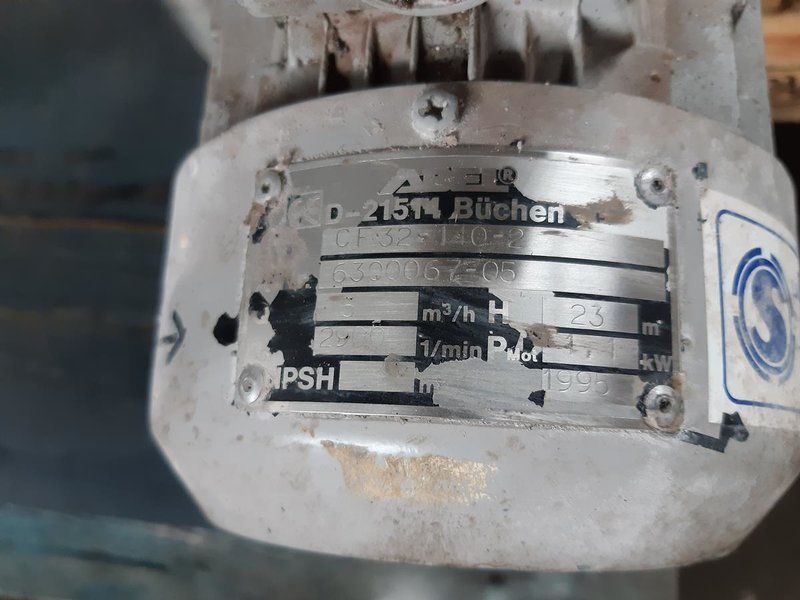

Pump: ABEL, 1,1 kW, CF 32-140-2 Q 5 m³/h H 23m
Without measuring devices and switches
Price on request
sold

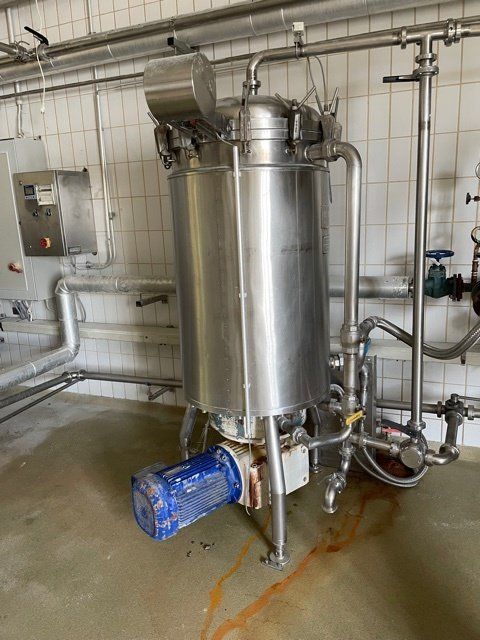

Stainless steel tank with Agitator
Disperser, heatable / coolable
Item number BB 9004
Manufacturer: Klarmann
Year of construction: 2017
Contant: approx. 610 liters
Diameter: approx. 1000 mm
Cylindrical height: approx. 860 mm
Total height: 2300 mm

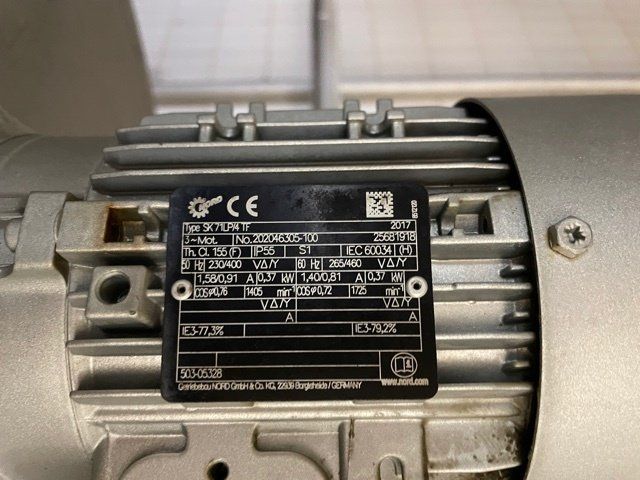

Agitator: 0,37 kW, 1406 U/min.
Outer jacket: max. 5 bar, max. 150° C
Price on request

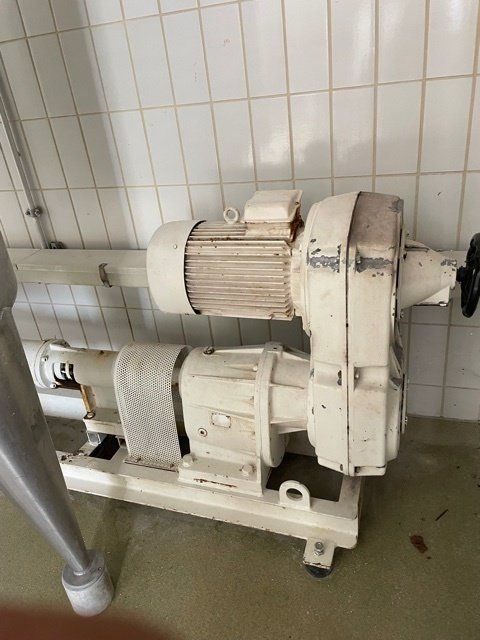

Stainless steel tank scraped heat exchanger
Item number BB 9005
For continuous heating and mixing of
of highly viscous products.
Manufacturer: Terlet
Content inside: 214 liters, 100° C, 5 Kg/cm²
Content jacket: 34 liters, 100° C, 3,5 Kg/cm²
Diameter outside: approx. 700 mm (incl. isolation)
Cylindrical height: approx. 1240 mm
Total height: 2300 mm
Agitator drive: approx. 11 kW
Price on request
Stainless steel tank with disperser
on load cells and lifting device
Item number BB 9006
Manufacturer: unknown
Content: approx. 1250 liters
Diameter: approx. 1200 mm
Cylindrical height: approx. 1100 mm
Total height: 2320 mm
Agitator drive:
Price on request
Decanter, phase separation vessel
Item number B 1119
Manufacturer: unknown
Material: stainless steel
Year of construction: unknown
Content: ca. 1600 ltr.
Dimensions: total heigh approx 3600mm,
cylindrical heigh approx 3000mm, Ø 800 mm
Entrance: DN 80
Exit: DN 80

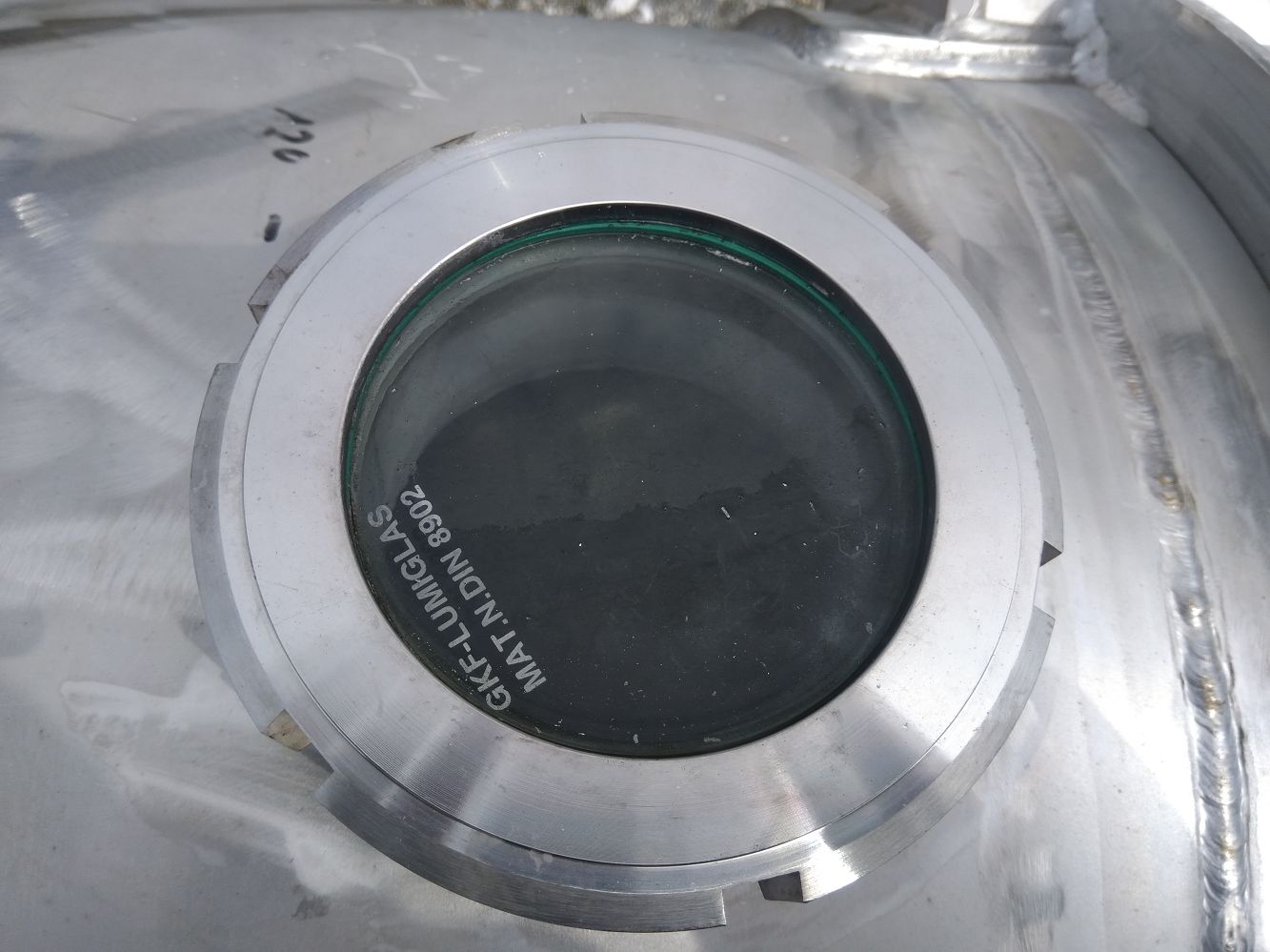

6 sight glasses: GKF Lumiglas, DN 100

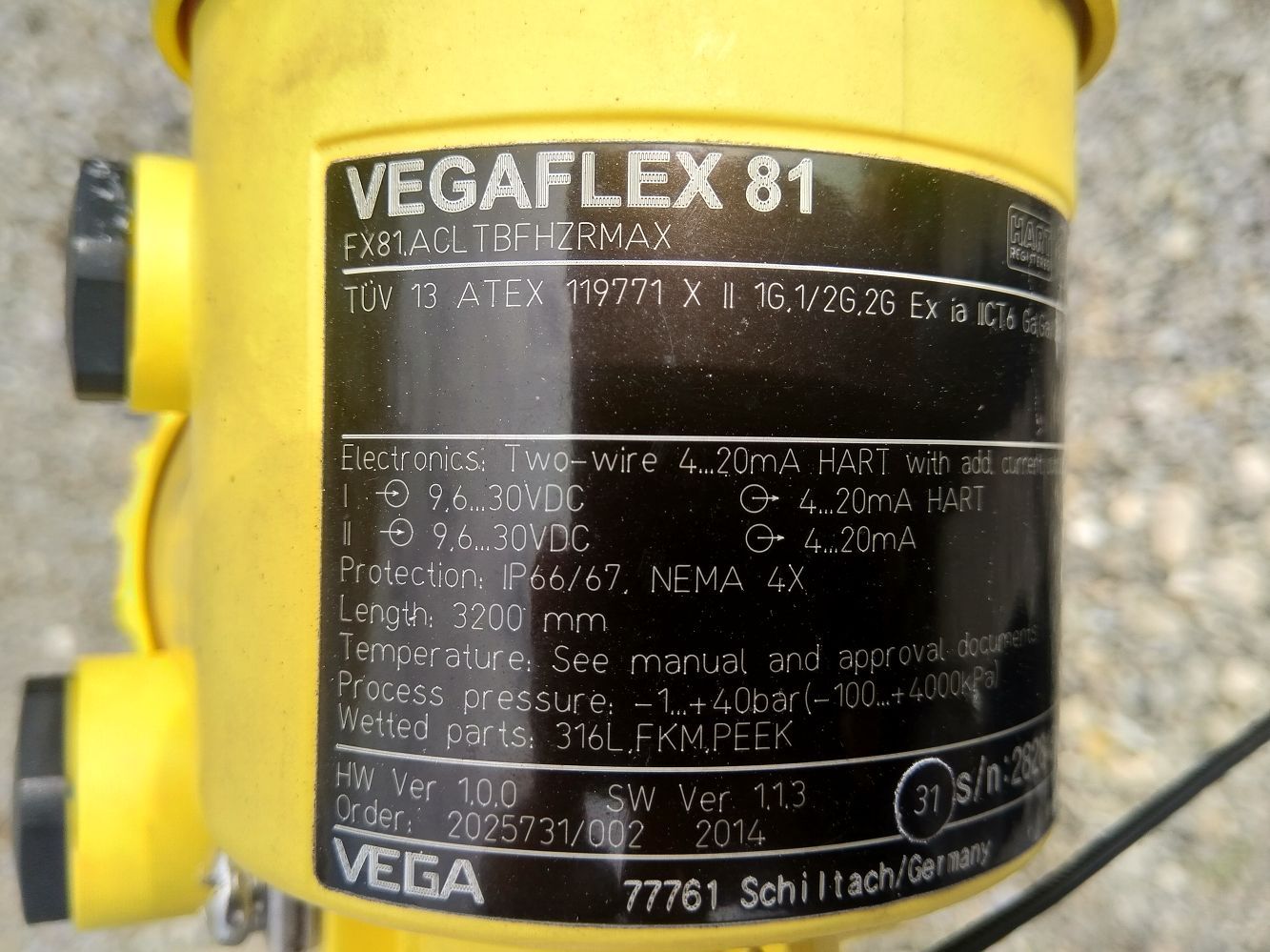

Incl. radar probe Vegaflex 81, TDR-sensor for continuous
level and measurement. Interface measurement of liquids.
sold

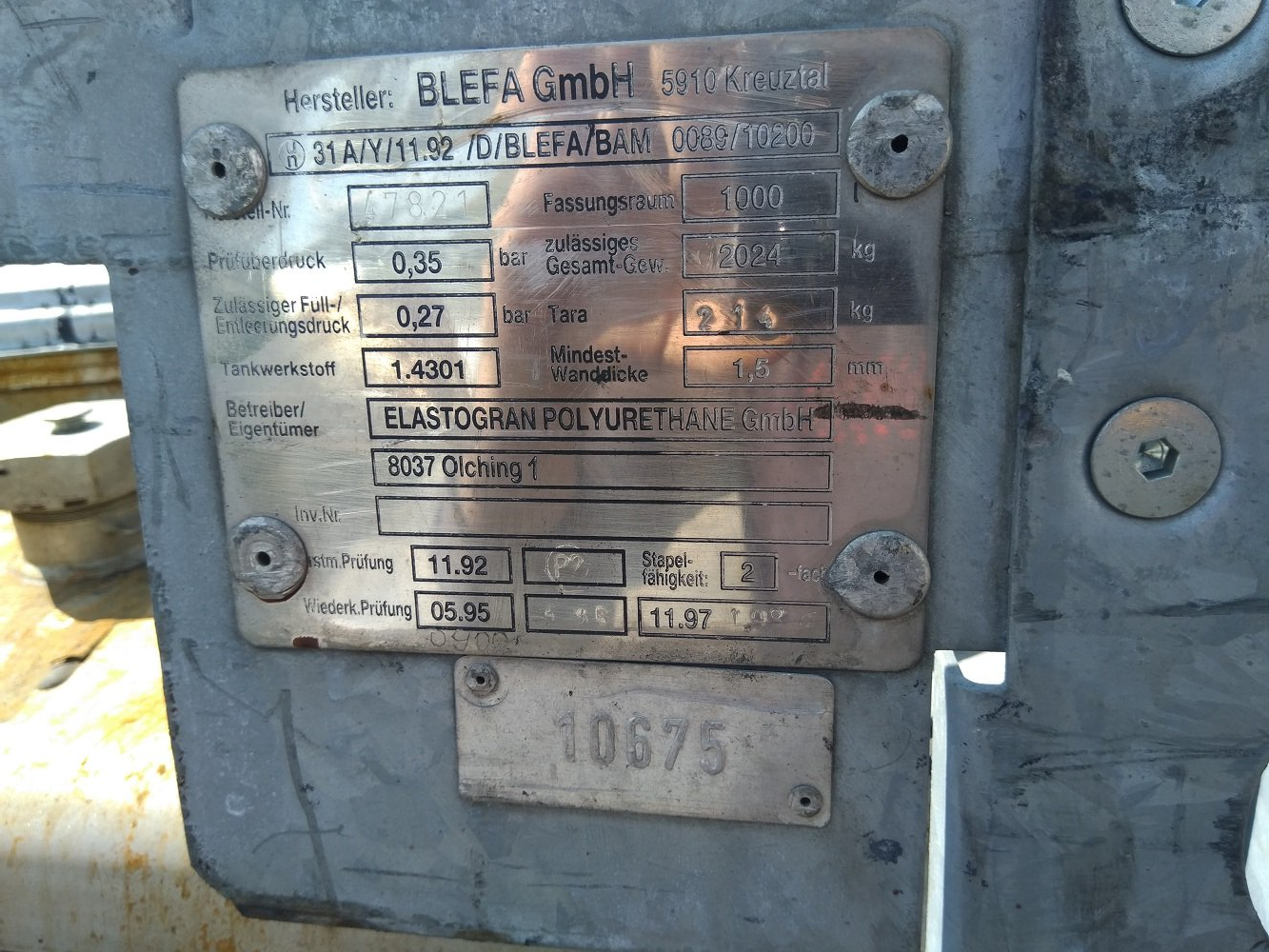

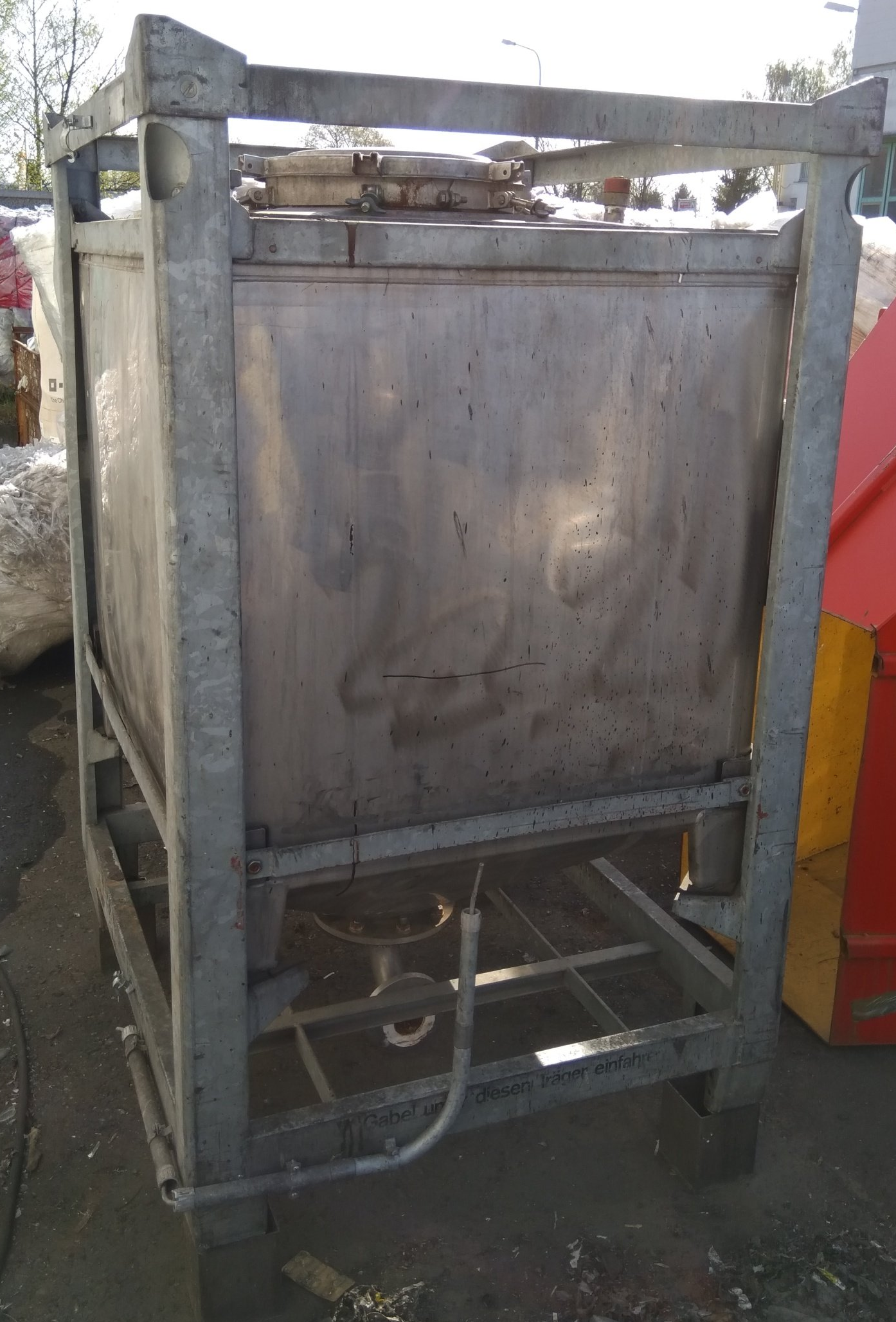

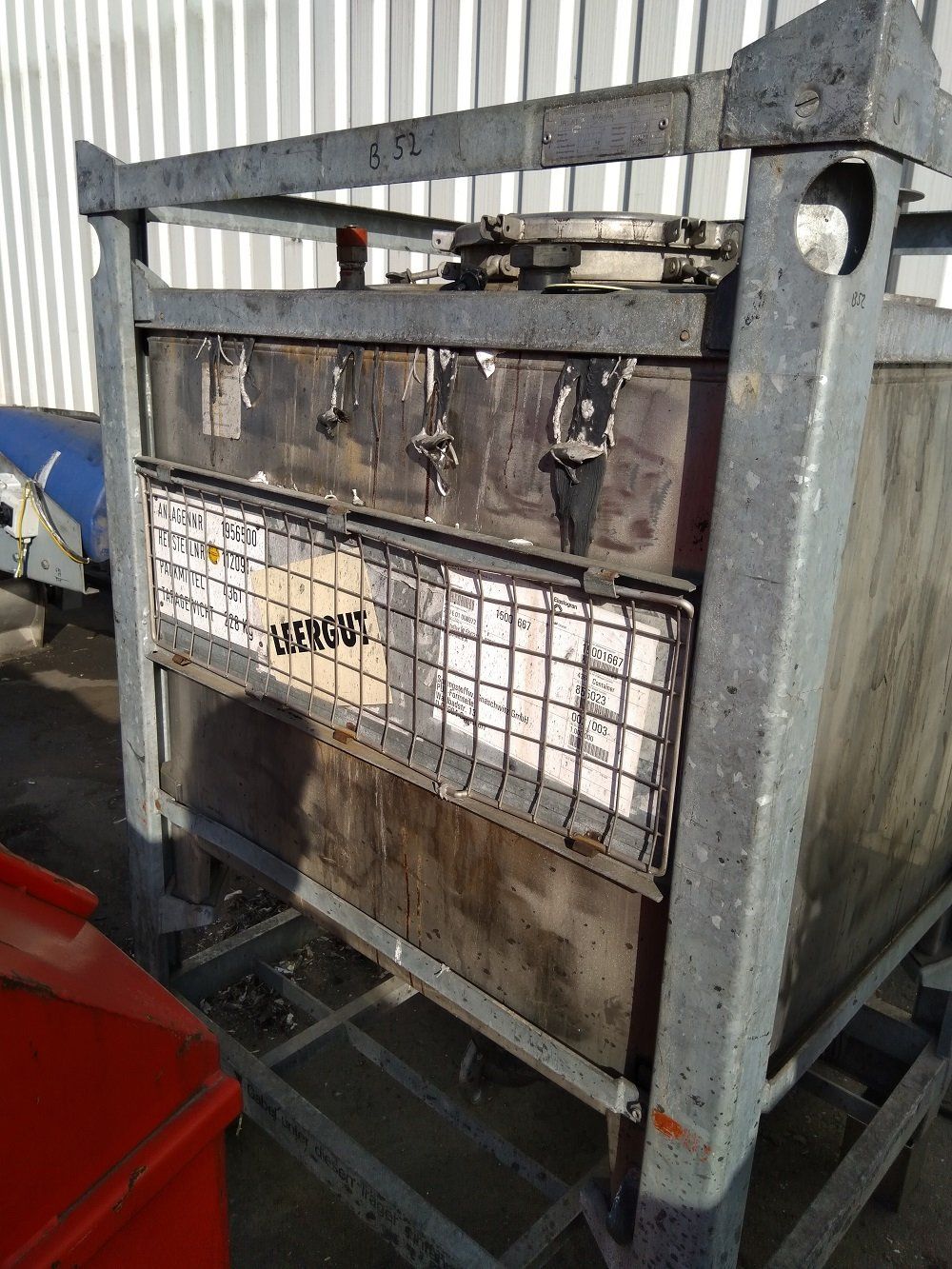

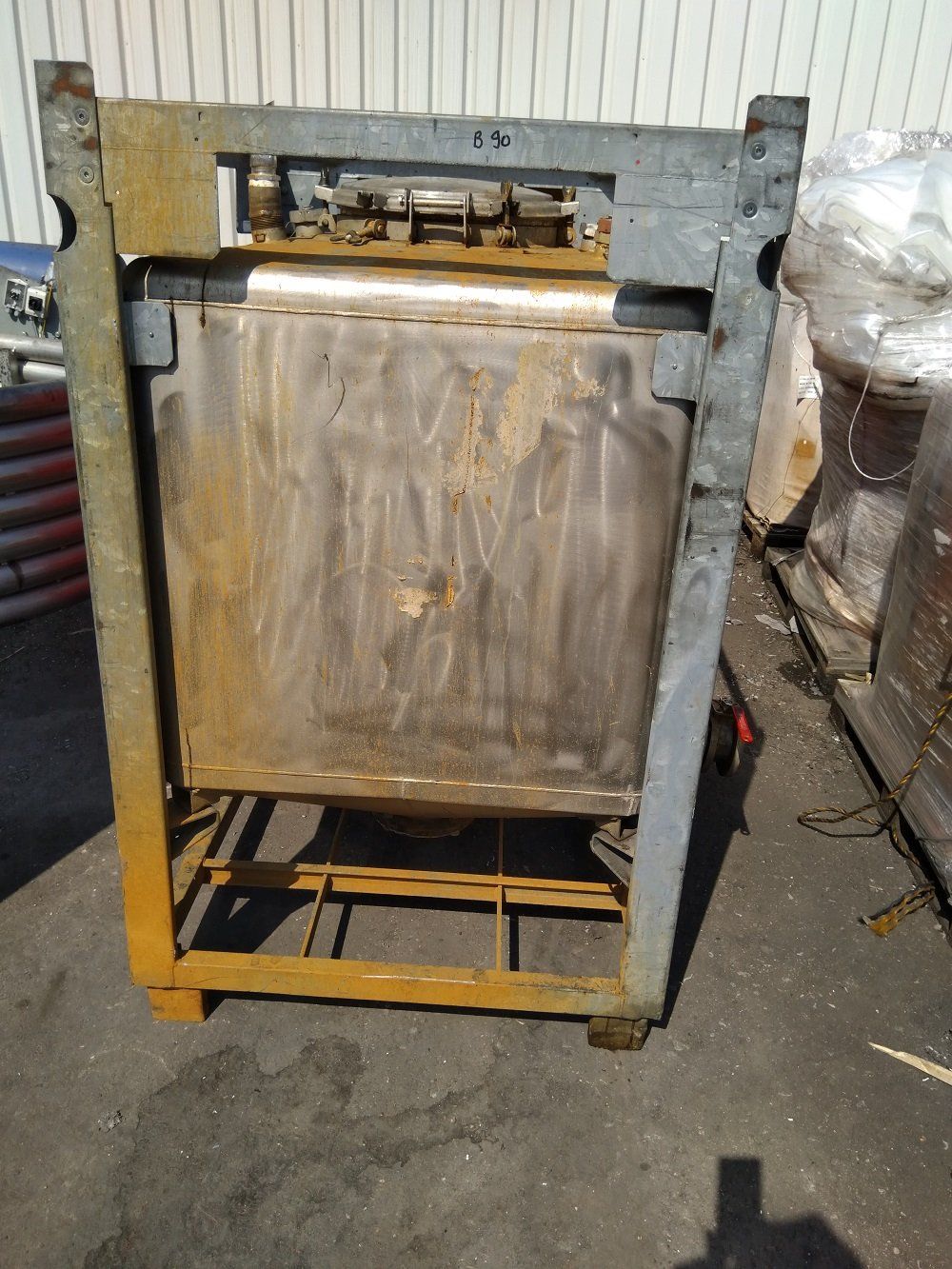

Cubic IBC 1000 litres
Item number B 1110
Manufacturer: Blefa GmbH
Material: Stainless steel
Year of construction: Unknown
Serial number: 47821
Permissible filling and emptying pressure: 0.27 bar
Total weight: 2024 KG
Empty weight: 214 KG
Price € 300.00 net plus VAT, free loading ex works
in stock

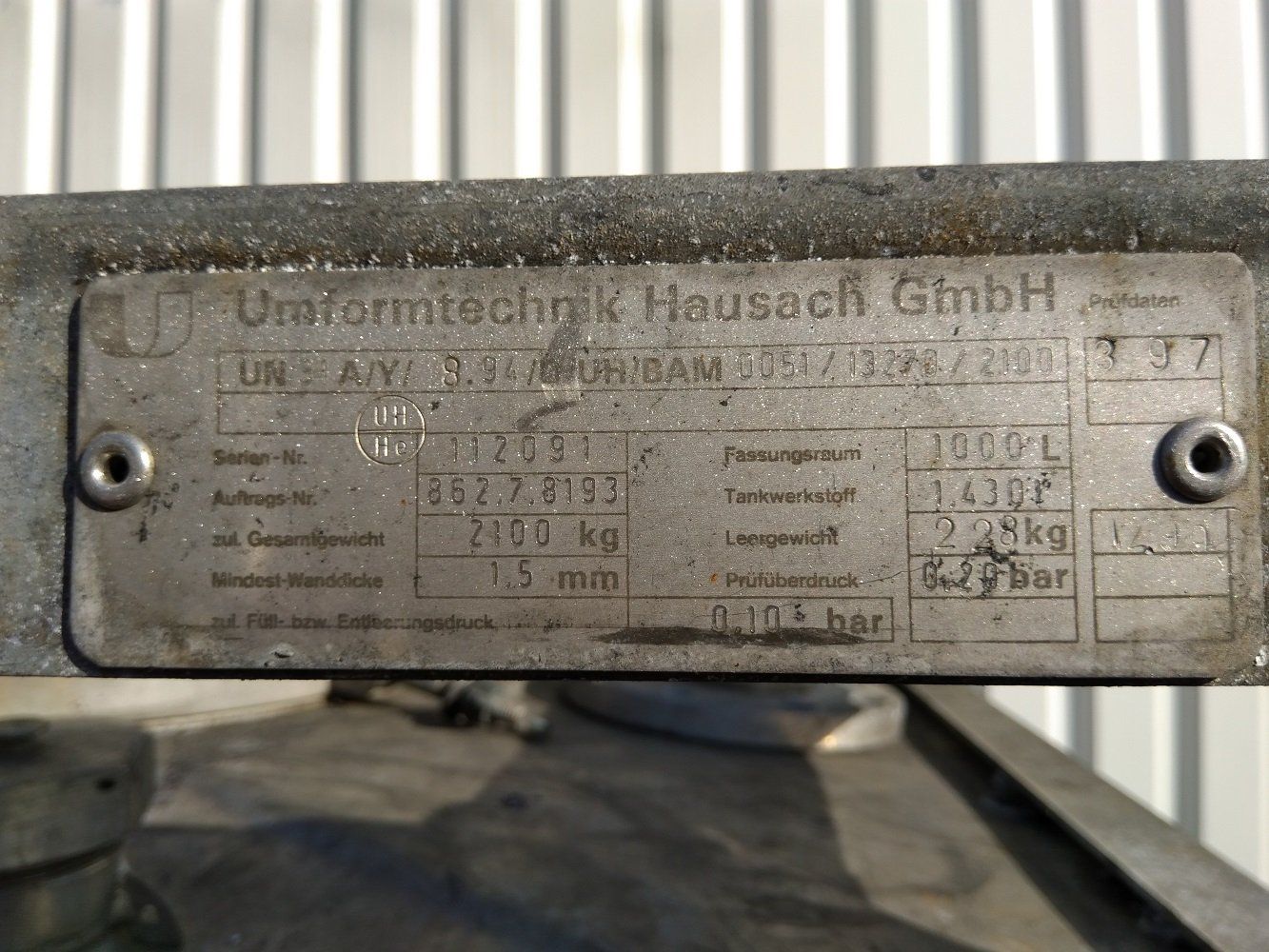

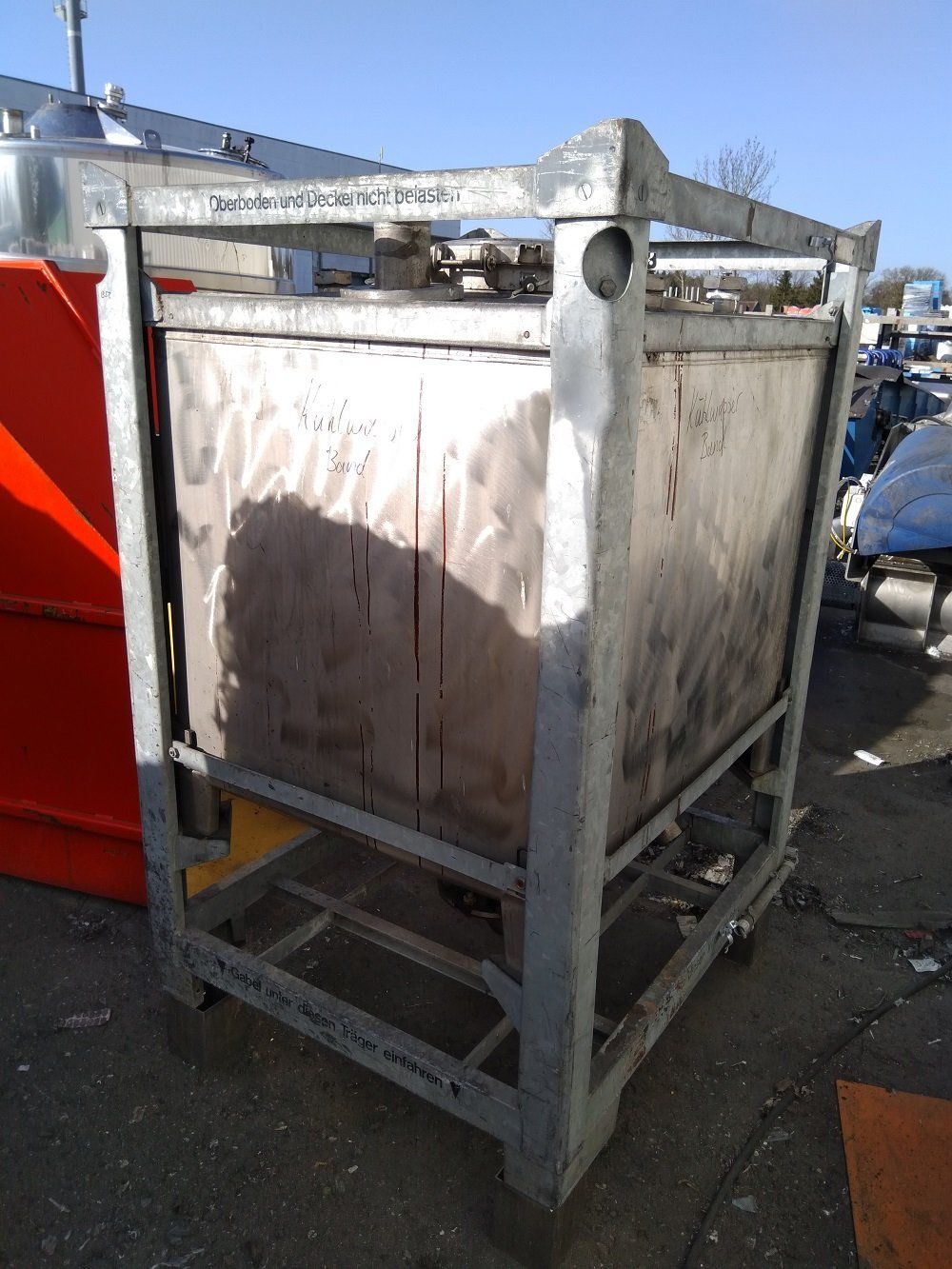

Cubic IBC 1000 litres
Item number B 1111
Manufacturer: Umformtechnik Hausach GmbH
Material: Stainless steel
Year of construction: Unknown
Serial number: 112091
Permissible filling and emptying pressure: 0.1 bar
Total weight: 2100 KG
Empty weight: 228 KG
Price € 300.00 net plus VAT, free loading ex works
in stock
