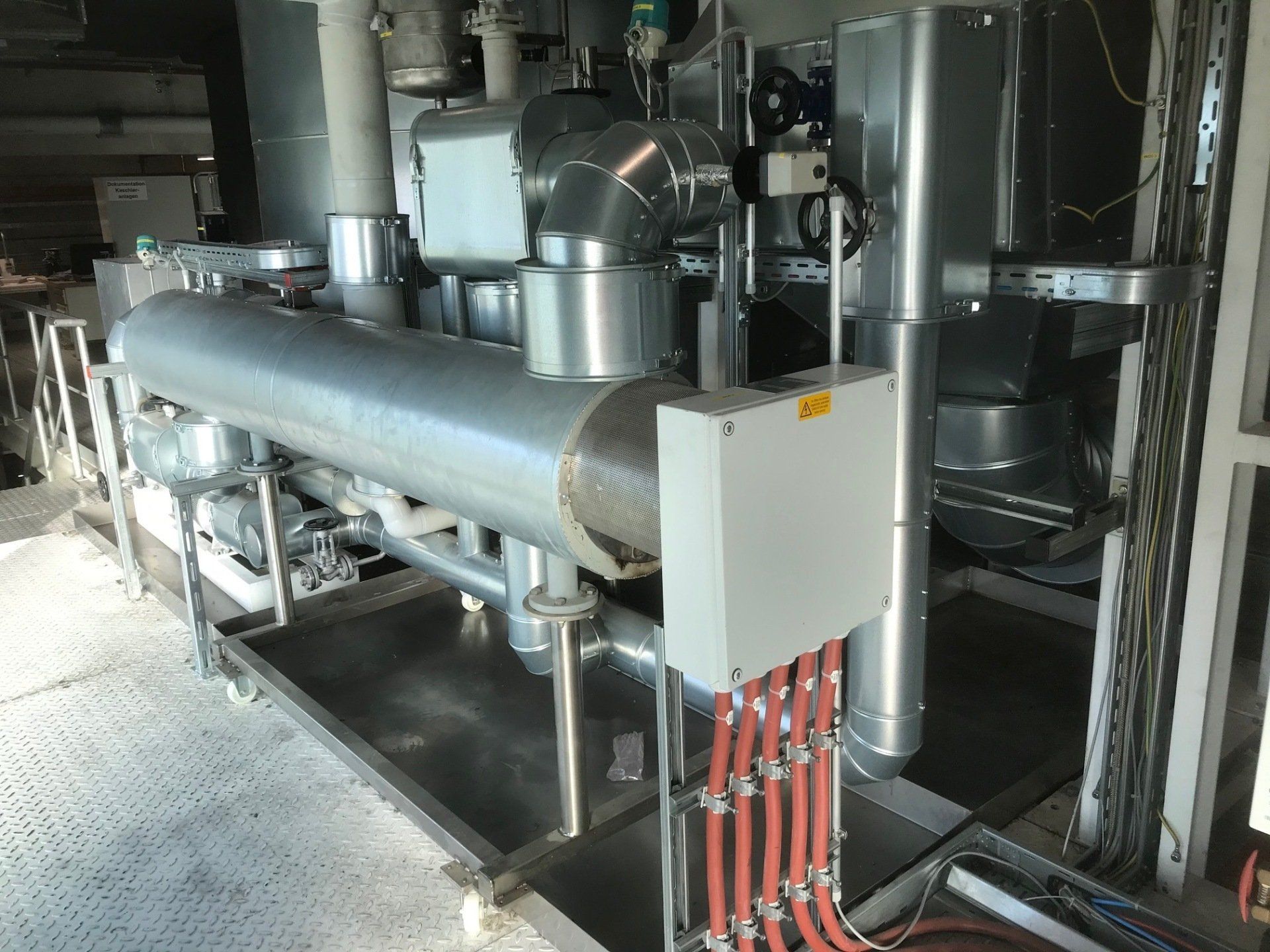

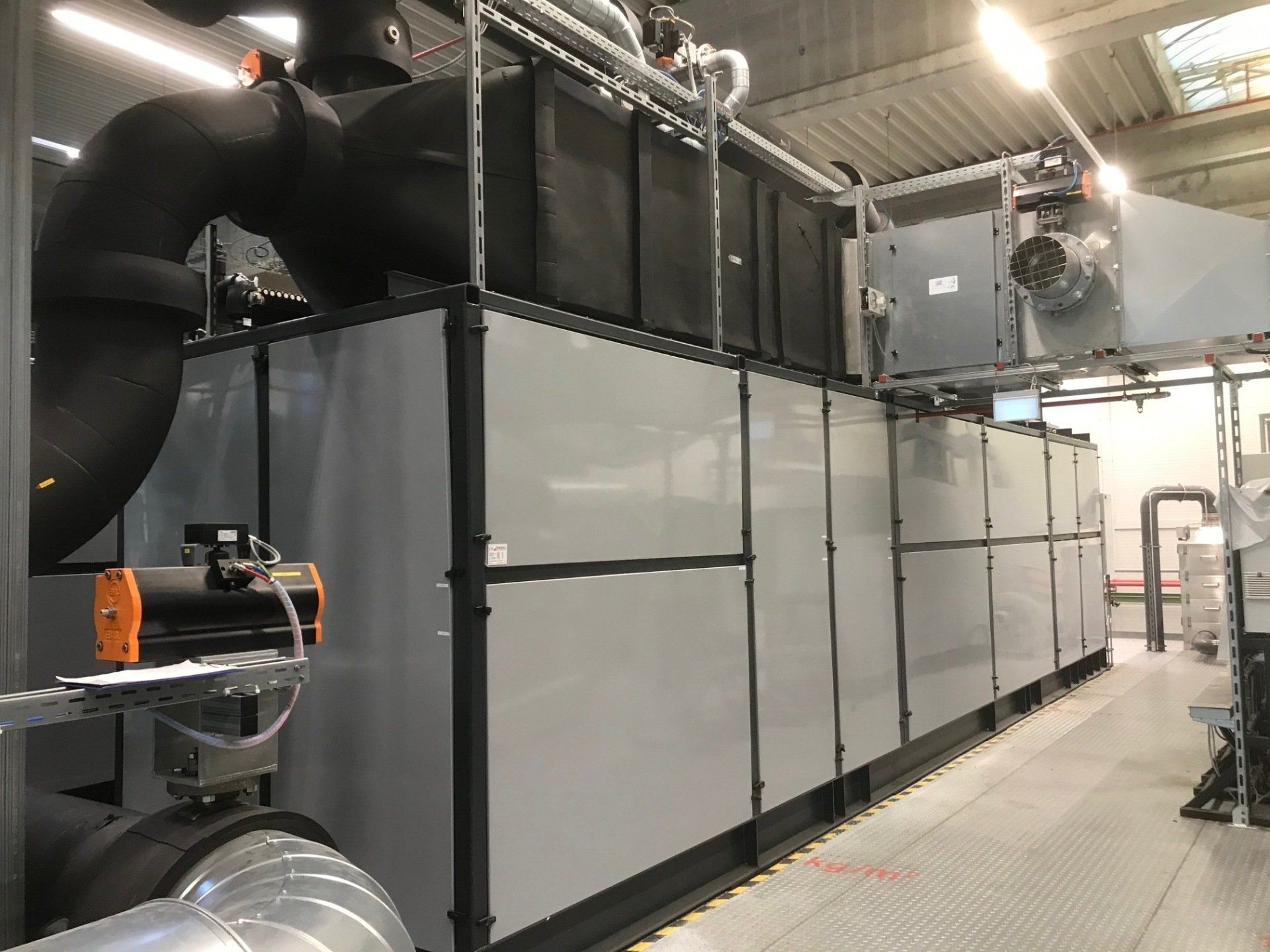

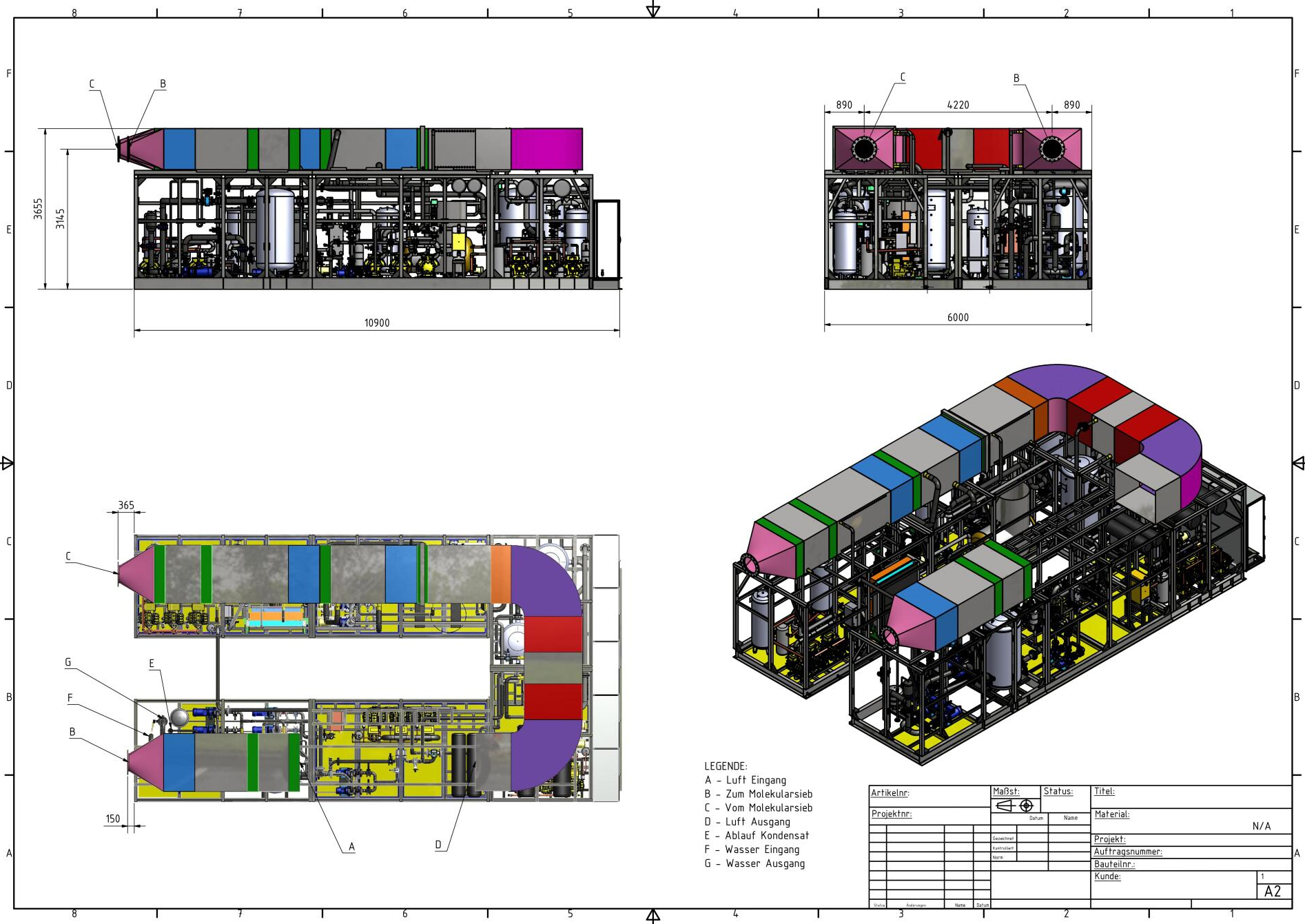

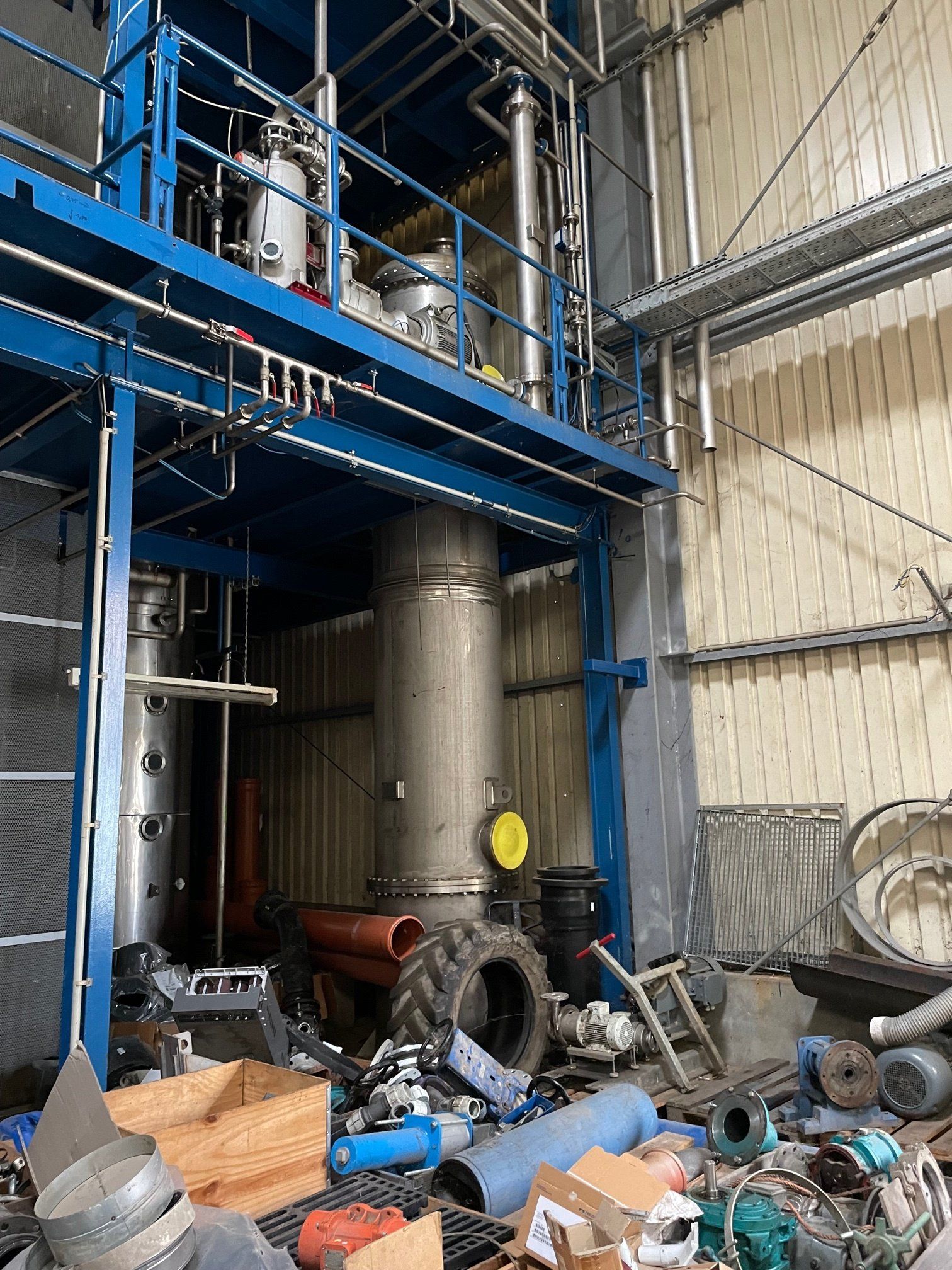

Exhaust air purification system

 - as good as new -

Throughput 6.000 m³ / h

Solvent content 30 g / m³

Item number IA 1117

Previously used for exhaust air purification and recovery for ethyl acetate.
Multi-stage refrigeration system with Mol sieve, thermal oil system and control system.

Function description

In the first part of the refrigeration system, the temperature of the dryer air from the drying ducts is cooled from approx. 55°C to 5°C in two stages.
Subsequently, dehumidification takes place in the Mol sieve to prevent the low-temperature heat exchangers from icing up.
In the second part of the refrigeration system, the dried air is then cooled in several stages to -50°C and then heated again to plus temperatures in the heat exchange process.
The solvent is condensed out and stored in a container for further use.

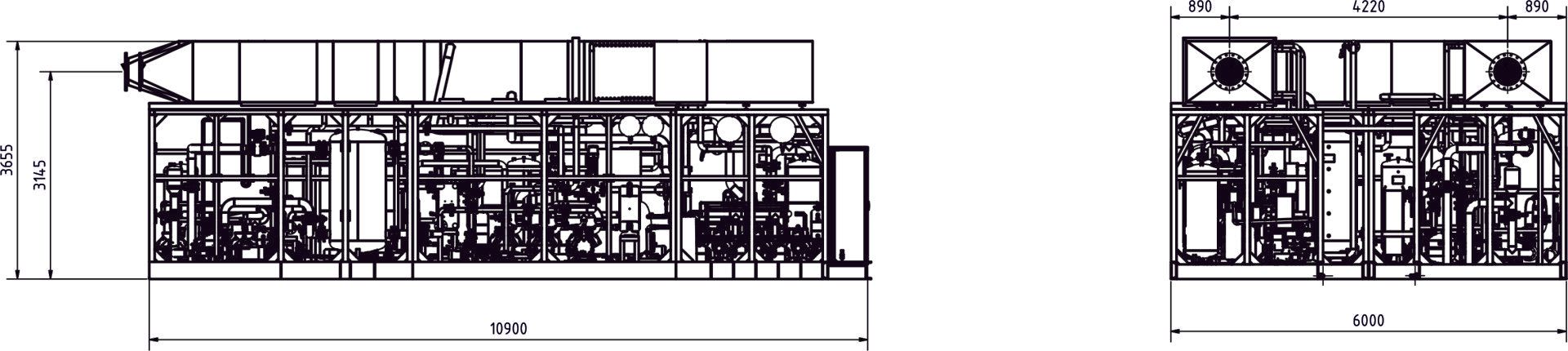

Solvent condensation system

Year of construction: 2016

Total refrigerant charge: 270 kg

Total oil volume: 78 l

Max. Permissible pressure HD side: 28 bar

Mains voltage: 230/400 V, 50 Hz

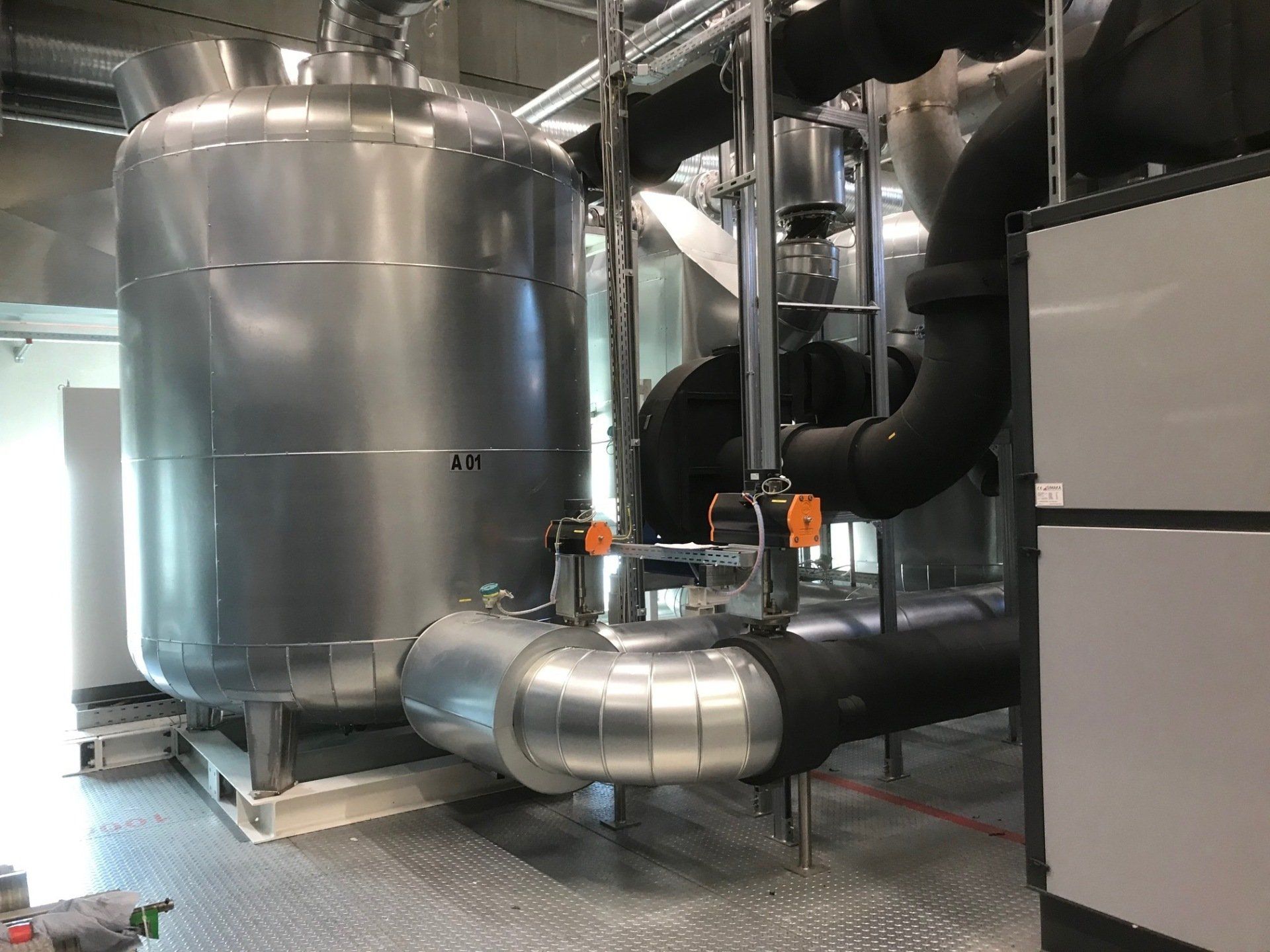

Mol sieve for dehumidifying the exhaust air

(can be used as an activated carbon filter!)

Year of construction: 2016
With cross-flow heat exchanger and thermal oil heater

The stored moisture is regenerated with hot gas in an open circuit.
Design: stainless steel, ATEX, year of construction:2016
Number of adsorbers: 2, diameter 3.000 mm, cyl. height 2.400 mm
Exhaust fan: 6.000 m³/ h, 7.000 Pa pressure, 30 kW

Thermal heat exchangers

Year of construction: 2016

Heat output: 200 kW

Connection voltage: 400 V

Test pressure: 19.2 bar

Perm. Operating pressure: 10 bar

Nominal size: DN 150

Min. Operating temperature: 5 ° C

Max. Operating temperature: 240 ° C

Electric heater: Heating surface 1.4307

Power: 200 kW - 400 V.

Operating temperature: pipe side 0 ° C / 0 ° C, jacket side 240 ° / 220 ° C

Perm. Temperature: 0 - 300 ° C

Test pressure: 34 bar

Max. permissible pressure: 16 bar

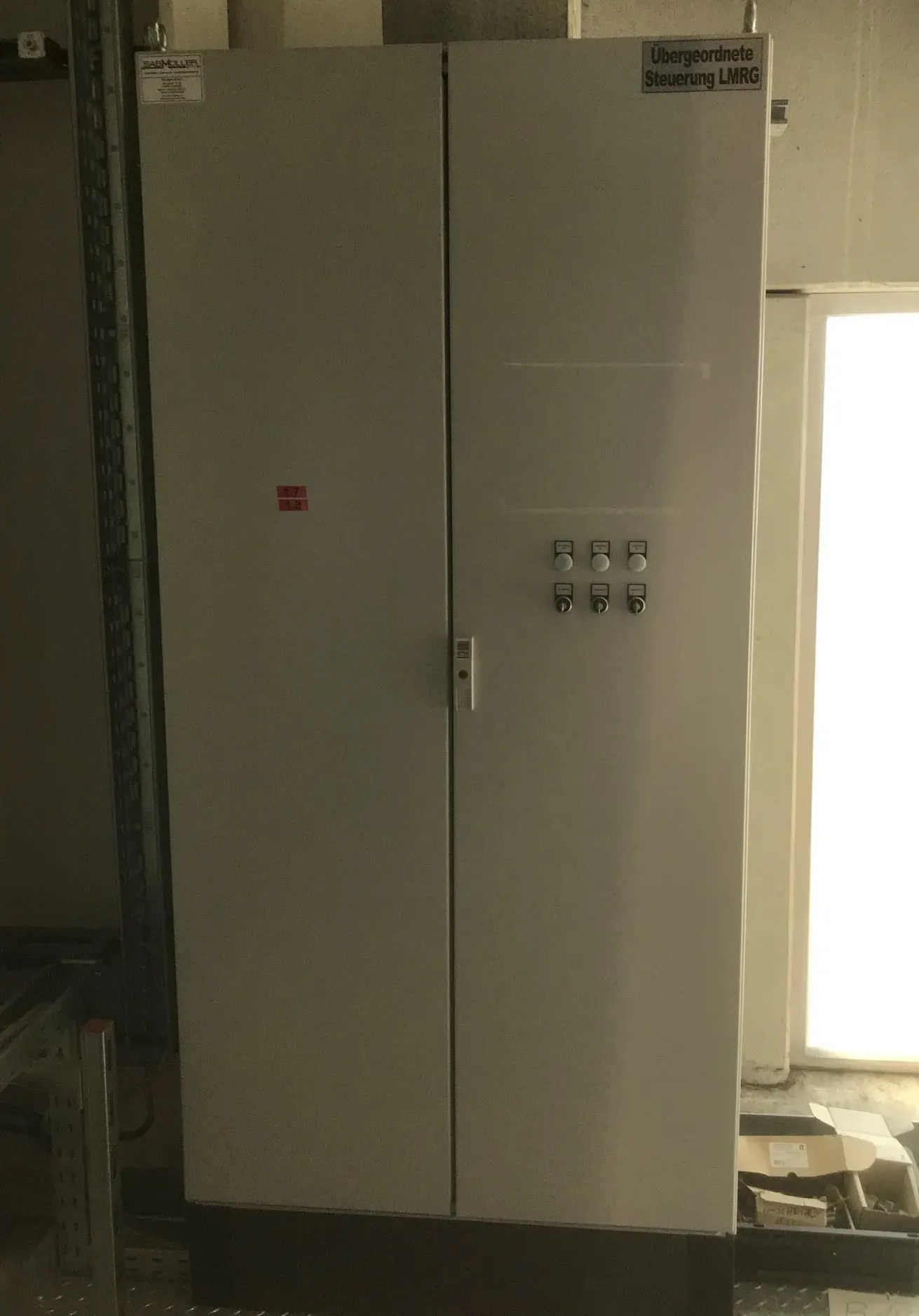

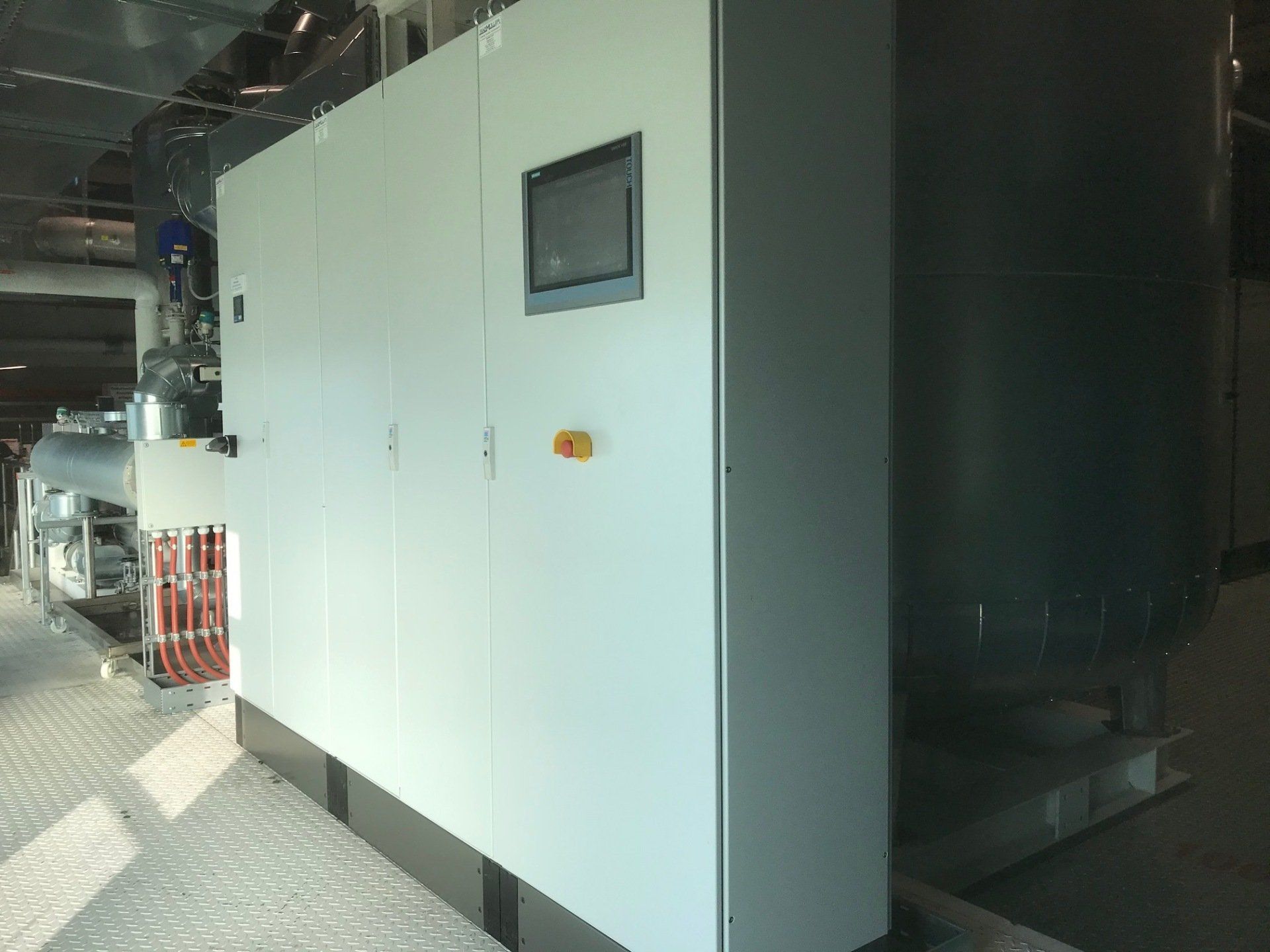

Control system

Year of construction 2016

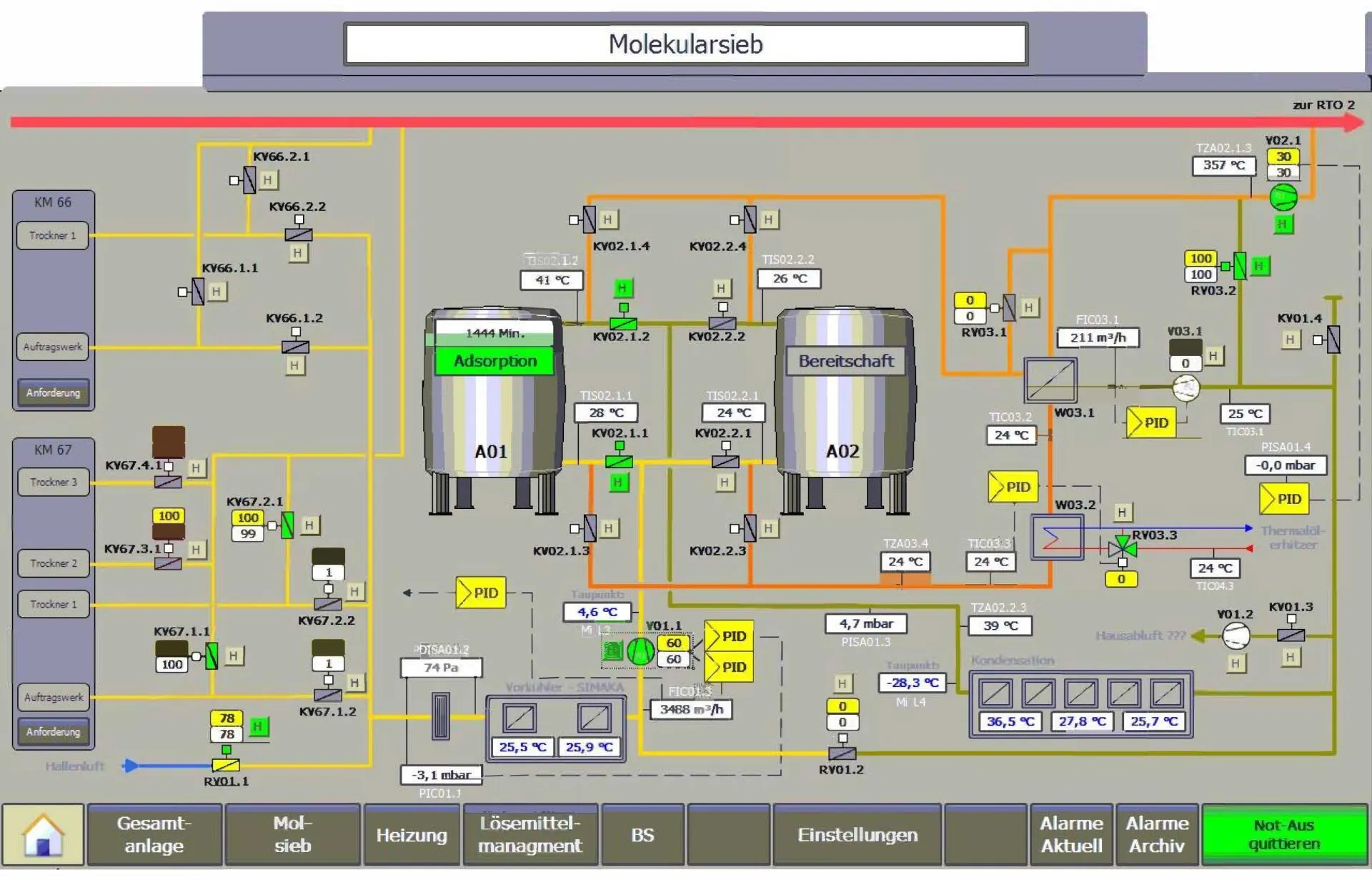

 Simatik S7 with process visualisation

Price on request

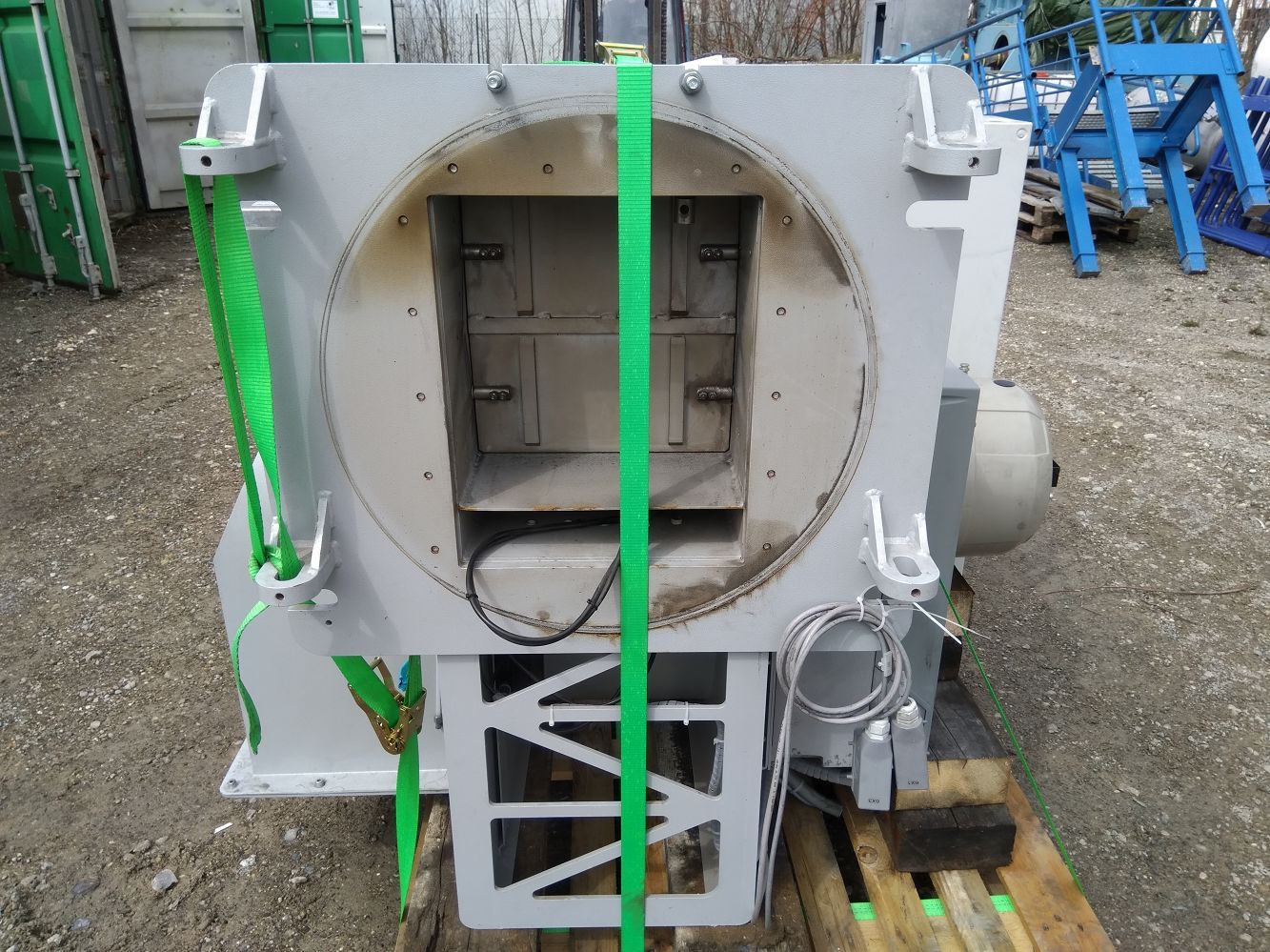

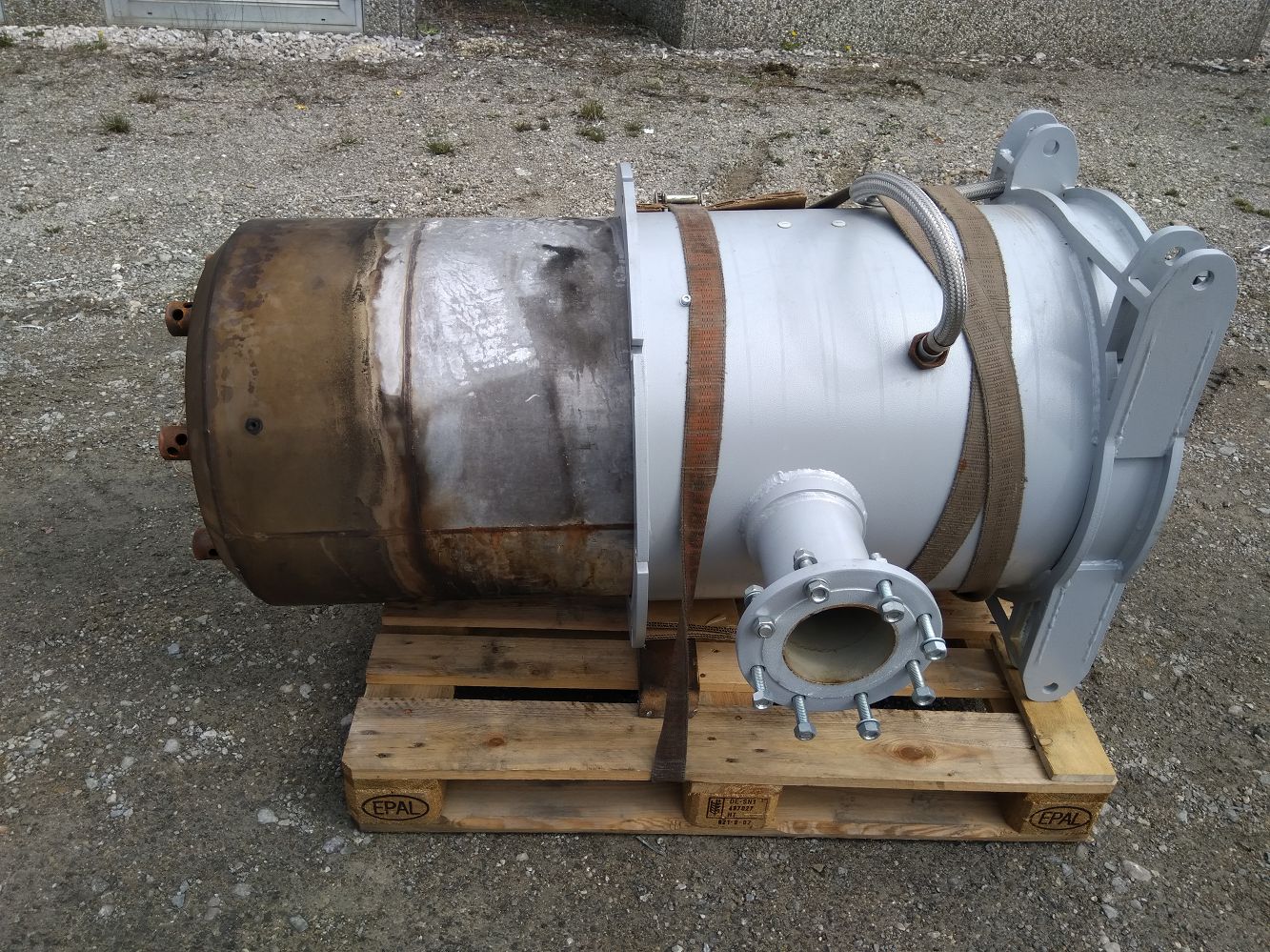

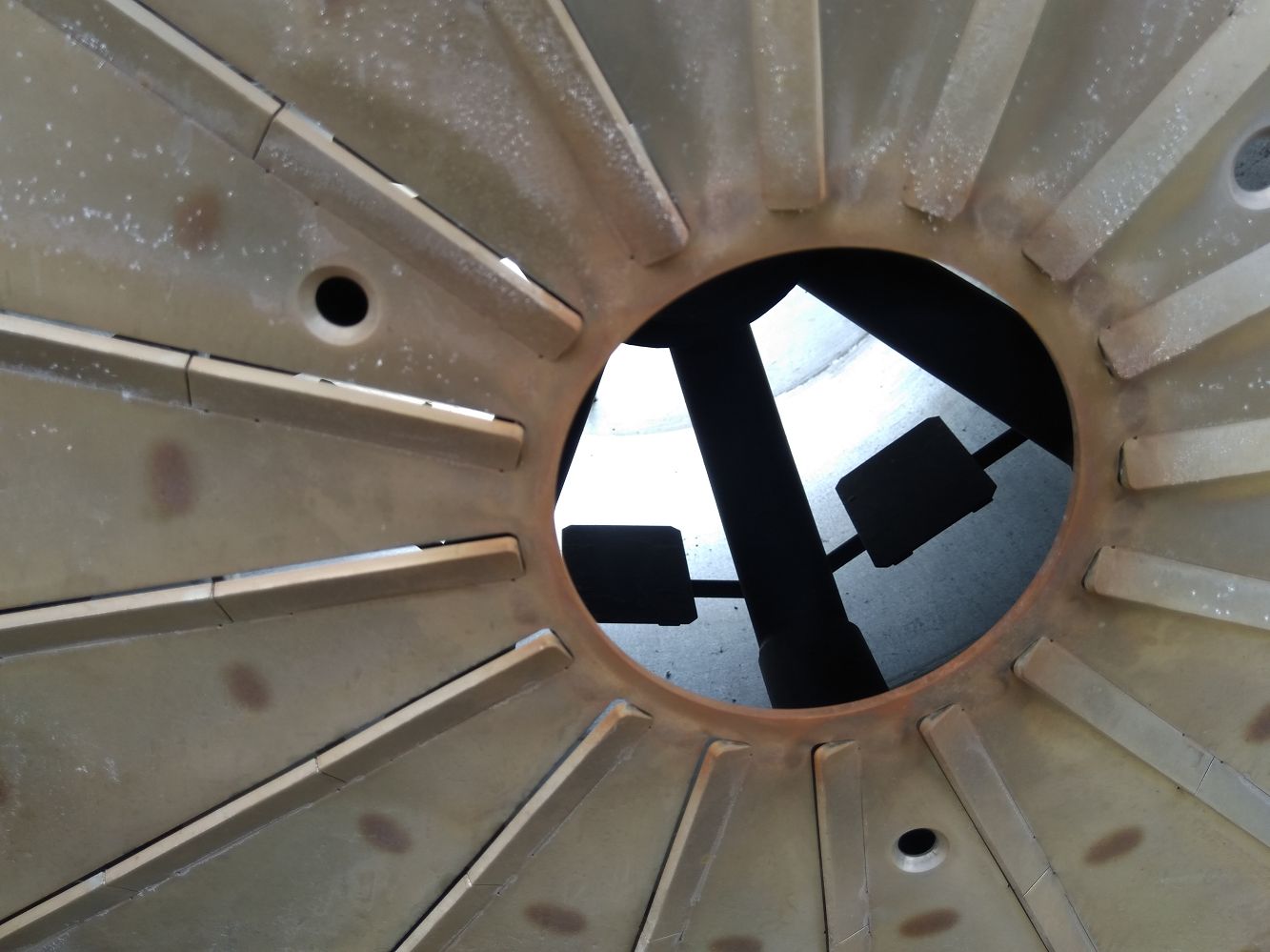

Gas burner type: marathon ® M 10001.3 ARZ

Item number: IA 1118

Burner capacity: 1400 to 13500 kW
                                  Gas burner according to EN 676:

•  Patented flue gas recirculation ARZ integrated in the burner head for particularly low NOx emissions
•  Optimised fan with motor, fan wheel and inlet guide
• Burner housing with LOW-NOx gas/air mixing device for combustion of fuel gases, other gaseous fuels on request
• Two-pole ignition transformer
• Flame monitoring according to the ionisation principle

• Gas shortage protection and air shortage protection on the burner
• With marathon ® burner technology: The regulation of the burner output between minimum and maximum flame is infinitely variable by the servomotor on the air damper via the pneumatic combination of gas and air pressure for gas/air ratio control. With combustion chamber pressure control including all necessary connecting parts and measuring lines.

• Digital firing manager with tested, plug-in wiring, mounted directly on the burner.
• Sound pressure level approx. 90 dB(A) standard version, additional silencing possible

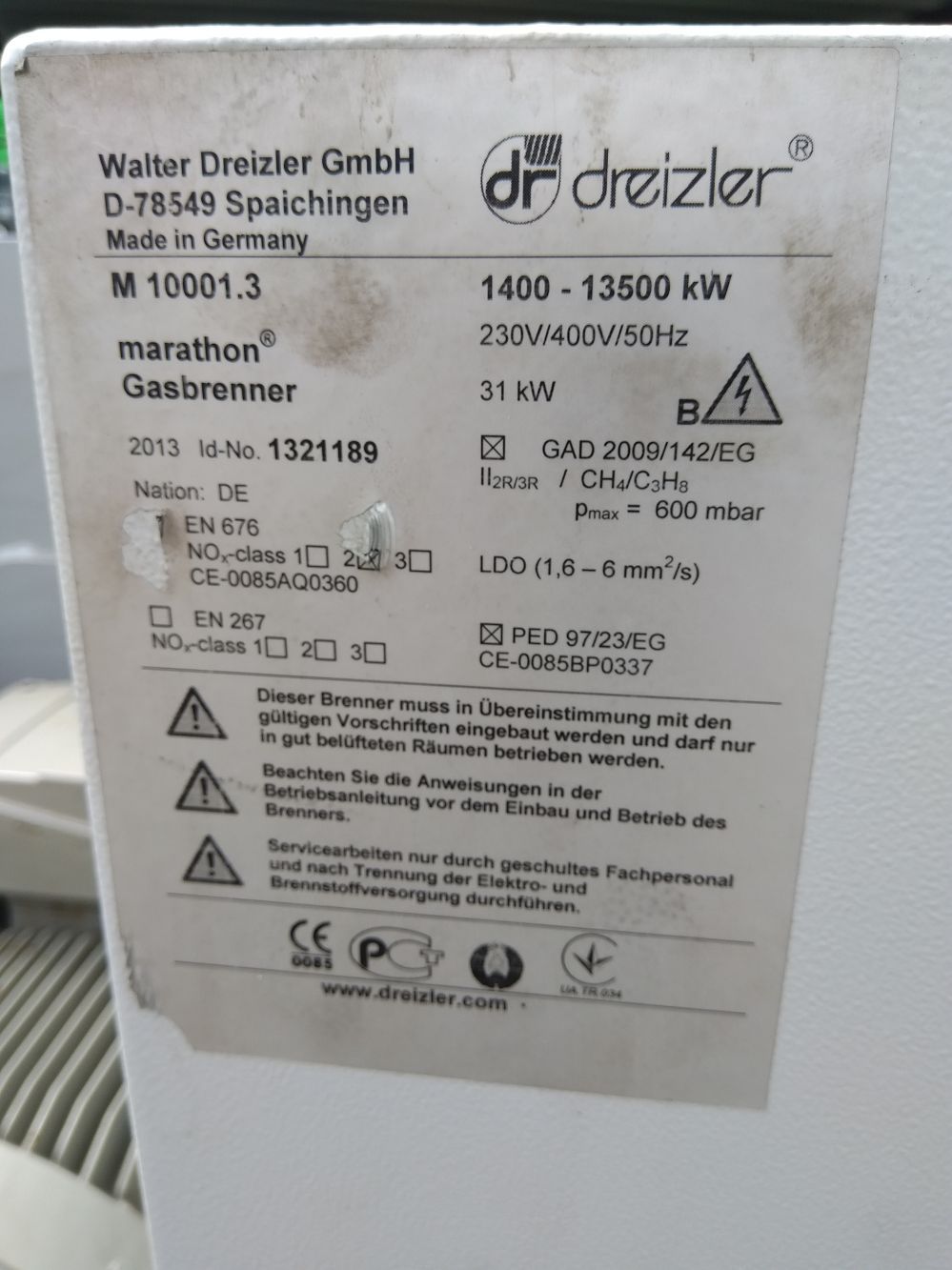

Technical date: M 10001.3 ARZ

Manufacturer: Dreizler

Year of construction: 2013

Burner capacity: 1400 - 13500 kW

Product identification number: CE-0085AP0743

Gas type: II2R3R Natural gas / LPG

Connection pressure: up to 4 bar (Overpressure), higher pressures according to design

Control mode: modulating

Control range: up to 1:10, depending on the compound

Power supply burner: 220/230 V, 50 Hz

Engine power: 30 kW

Power supply motor: 380/400 V, 50 Hz

As good as new condition, complete documentation available

Price 11999.00 € net plus VAT, free loading ex works.

in Stock

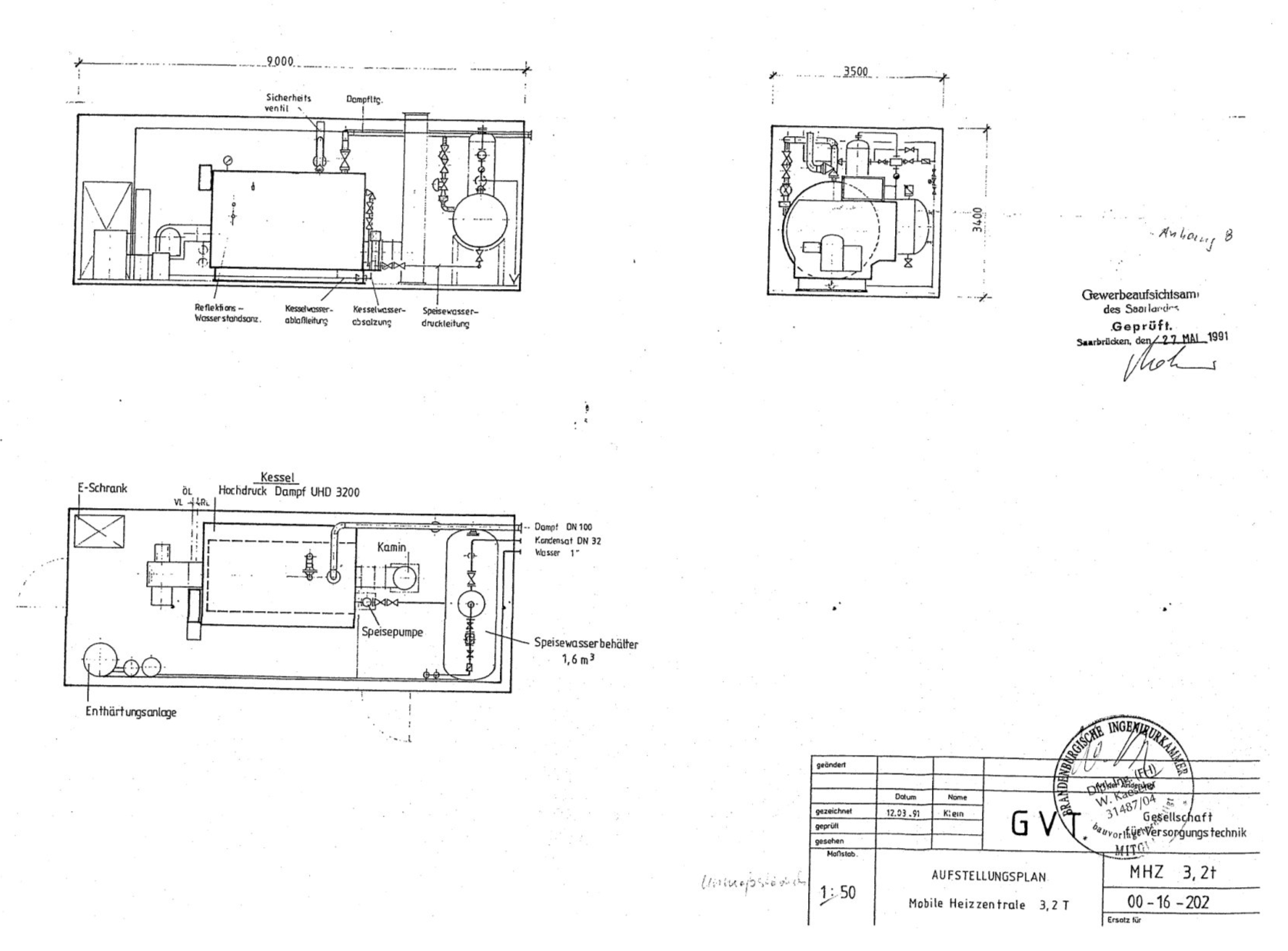

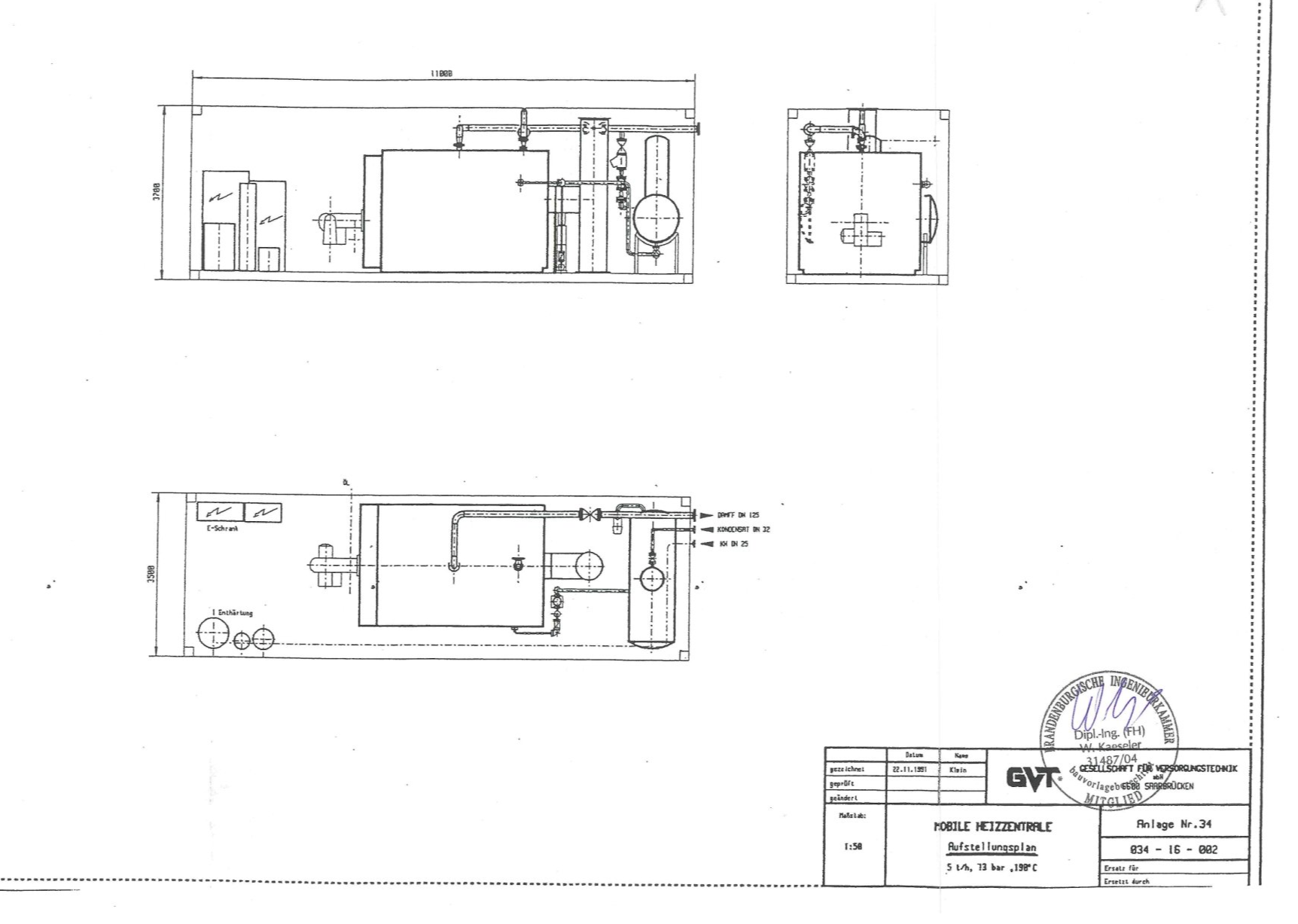

Mobile heating system 3.2 to, oil/gas

year of construction 1991

Steel construction, heat and sound isolated

Item number IA 1152

 Manufacturer : LOOS; Gunzenhausen

Condition: used, good
Series: U-HD

Permissible steam output: 3.200 Kg/hr

Permissible operating overpressure: 13 bar

Boiler capacity: 2.650 litres

External dimensions: 9,2 x 3,6 x 3,6m (LxWxH)

Transport and operating weight: 25/30 to

Mains connection: DN 150, PN 40
Gas connection: DN 100, PN 40
Condensate connection: DN 32, PN 16
oil connection: DN 20, PN 40
Water connection: 1"

Testing up to and including February 2020 complete

Equipped with:

Weishaupt burner, type D112/140-2, 7000 kW

Feed water tank 2.100 ltr.

Double softening plant

Control cabinets

Chimney

Completely equipped with pumps and fittings, documentation available.

Price on request
