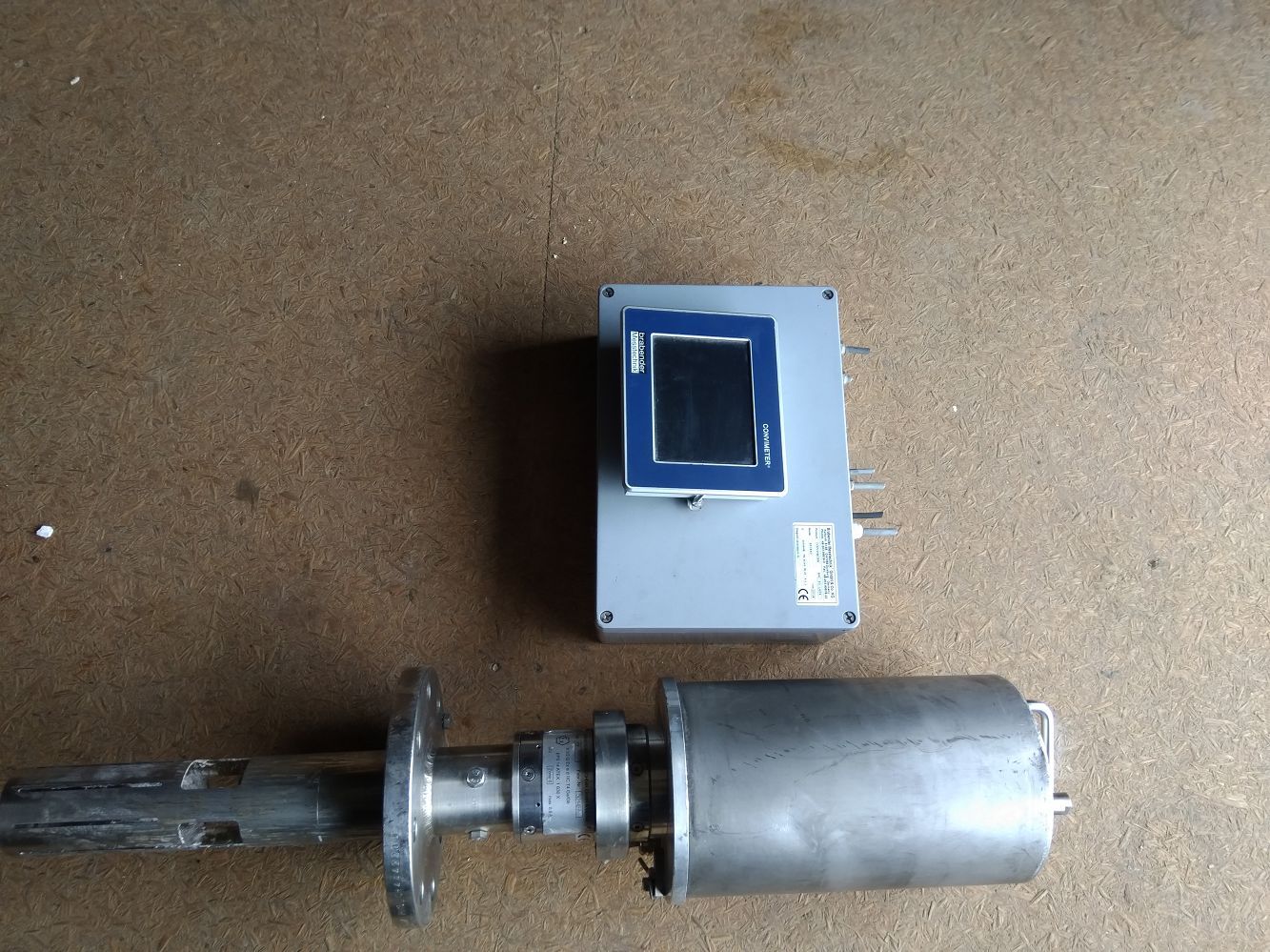

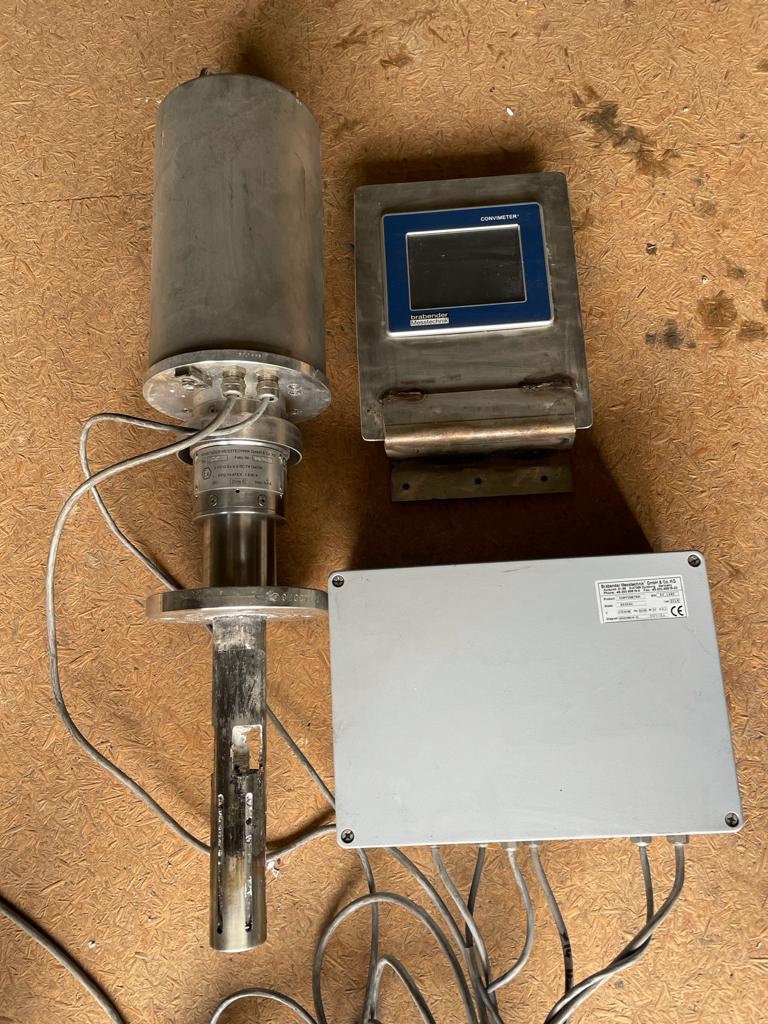

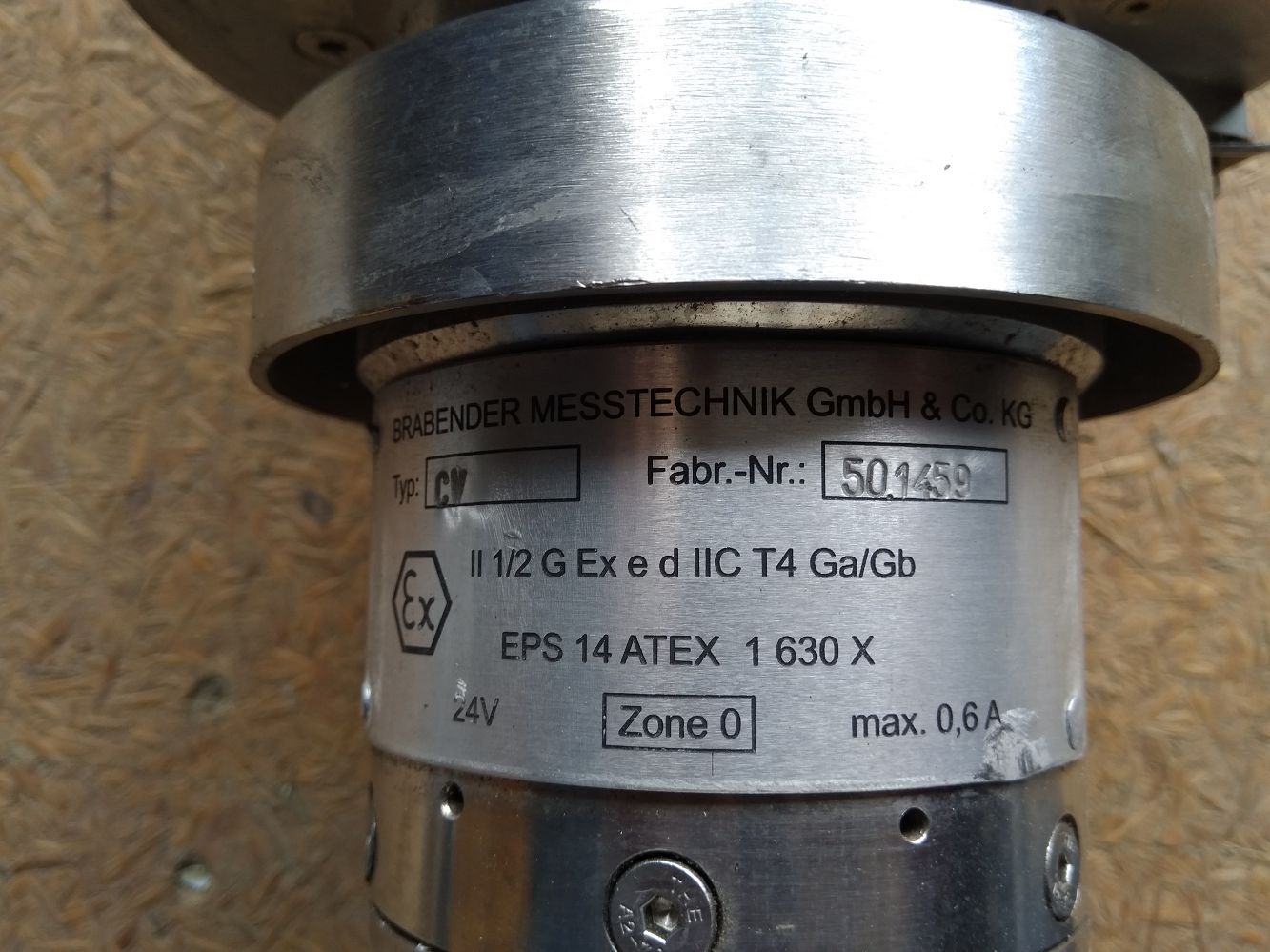

Viscometer V 42.1
Item number MW 1105
Manufacturer: Brabender Messtechnik
Type: CV NW 80 Ex
Version: Flange DN 80 Ex, PN 16, closed housing with drive motor, range spring and travel sensor
Ex-protected version II 1/2 G Ex ed IIC T4 Ga/Gb,
pipe diameter 69 mm, including protective tube for
protection against cross flow,
Wetted parts in stainless steel, material: 1.4571
Year of construction: 2014
Viscosity measuring range: max. 20000 mPas
Manufacturer number: 50.1459
Temperature: max. 140°C
Operating pressure: max. 10 bar
Seals: Viton

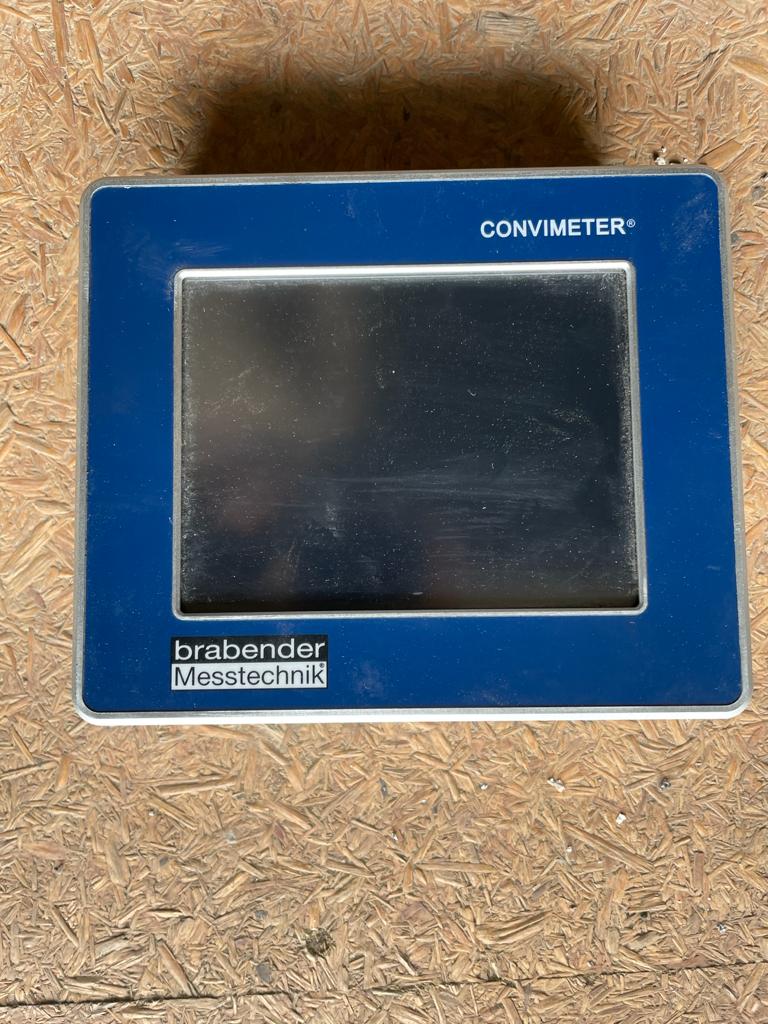

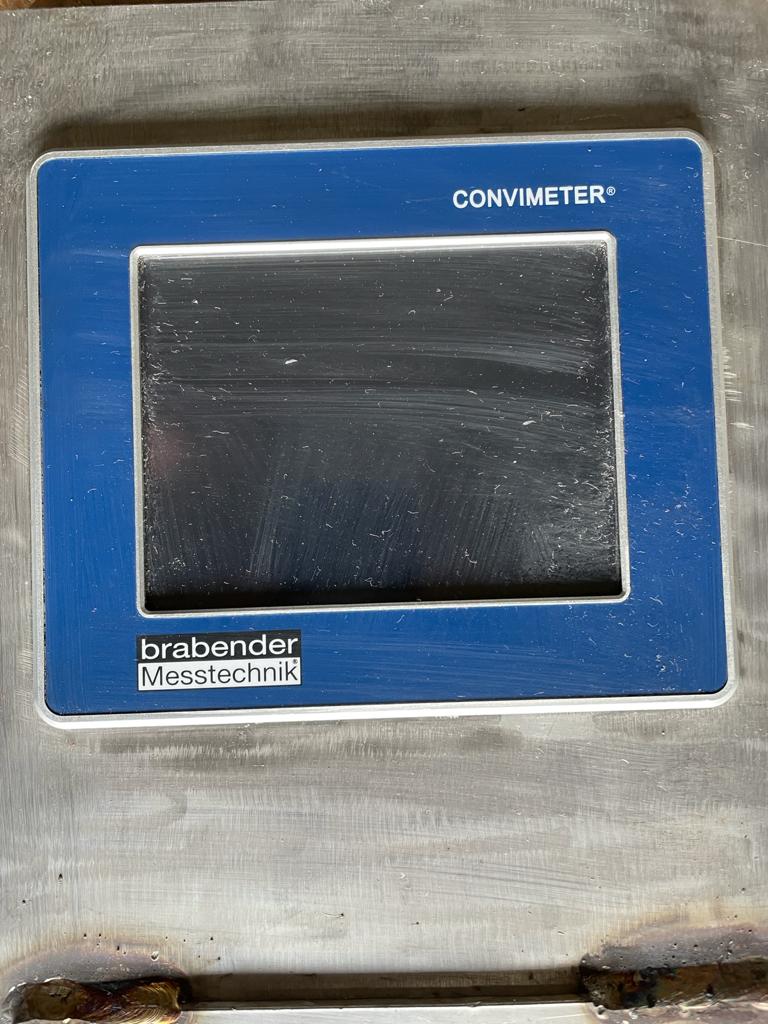

Operating terminal: CV-T DE-COP5, 5,7“ LCD TFT, IP65/20
PROFIBUS interface, PROFIBUS-DPV1 protocol for reading out the measurement data, Remote control
Price 3200.00 € net plus VAT, free loading ex works
in stock

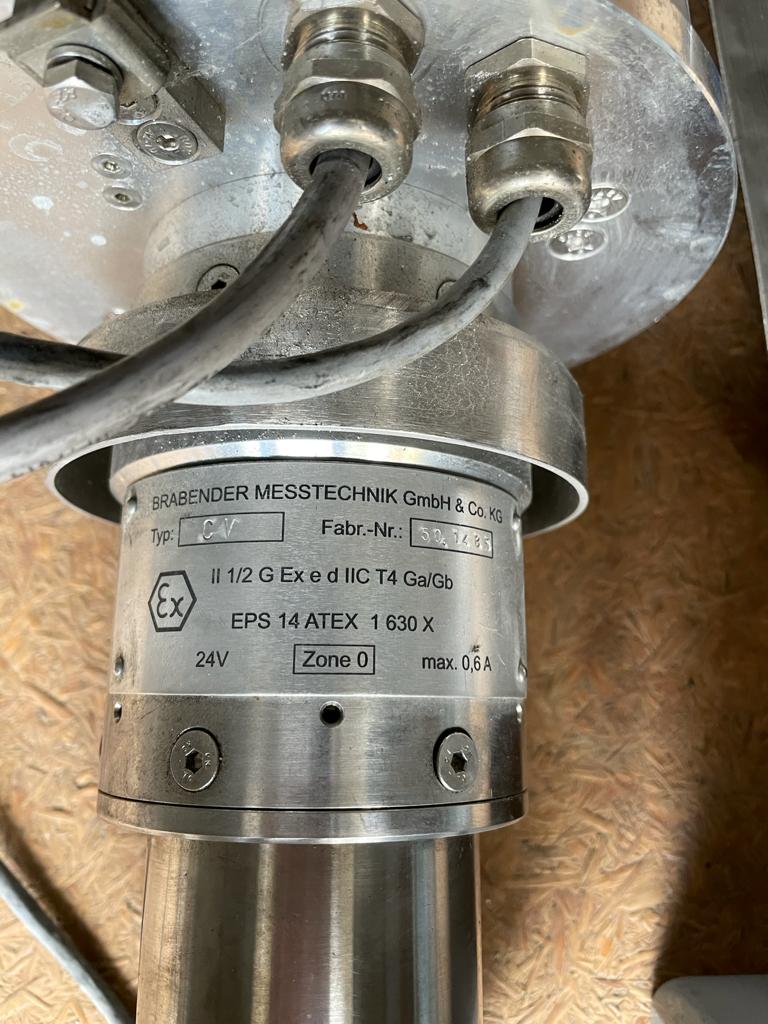

Viscometer
Item number MW 1120
Manufacturer: Brabender Messtechnik
Type: CV NW 50 Ex
Version: Flange DN 50 Ex, PN 10, closed housing with drive motor,
range spring and travel sensor
Ex-protected version II 1/2 G Ex ed IIC T4 Ga/Gb,
pipe diameter 69 mm, including protective tube for
protection against cross flow,
Wetted parts in stainless steel, material: 1.4571
Year of construction: 2016
Viscosity measuring range: max. 50000 mPas
Manufacturer number: 50.1485
Temperature: max. 140°C
Operating pressure: max. 8 bar
Seals: Viton

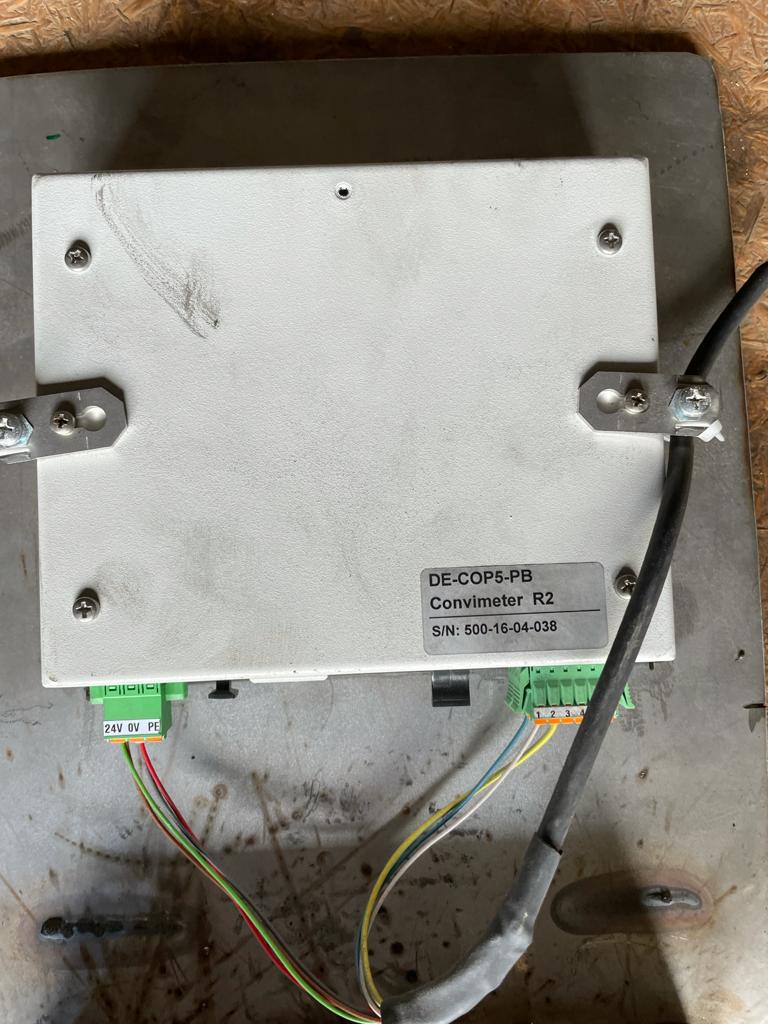

Operating terminal: CV-T DE-COP5, 5,7“ LCD TFT, IP65/20
With connection cable 5m between operating terminal and electronics, PROFIBUS interface,
PROFIBUS-DPV1 protocol for reading out the measurement data,
Remote control
Price 2990.00 € net plus VAT, free loading ex works
in stock

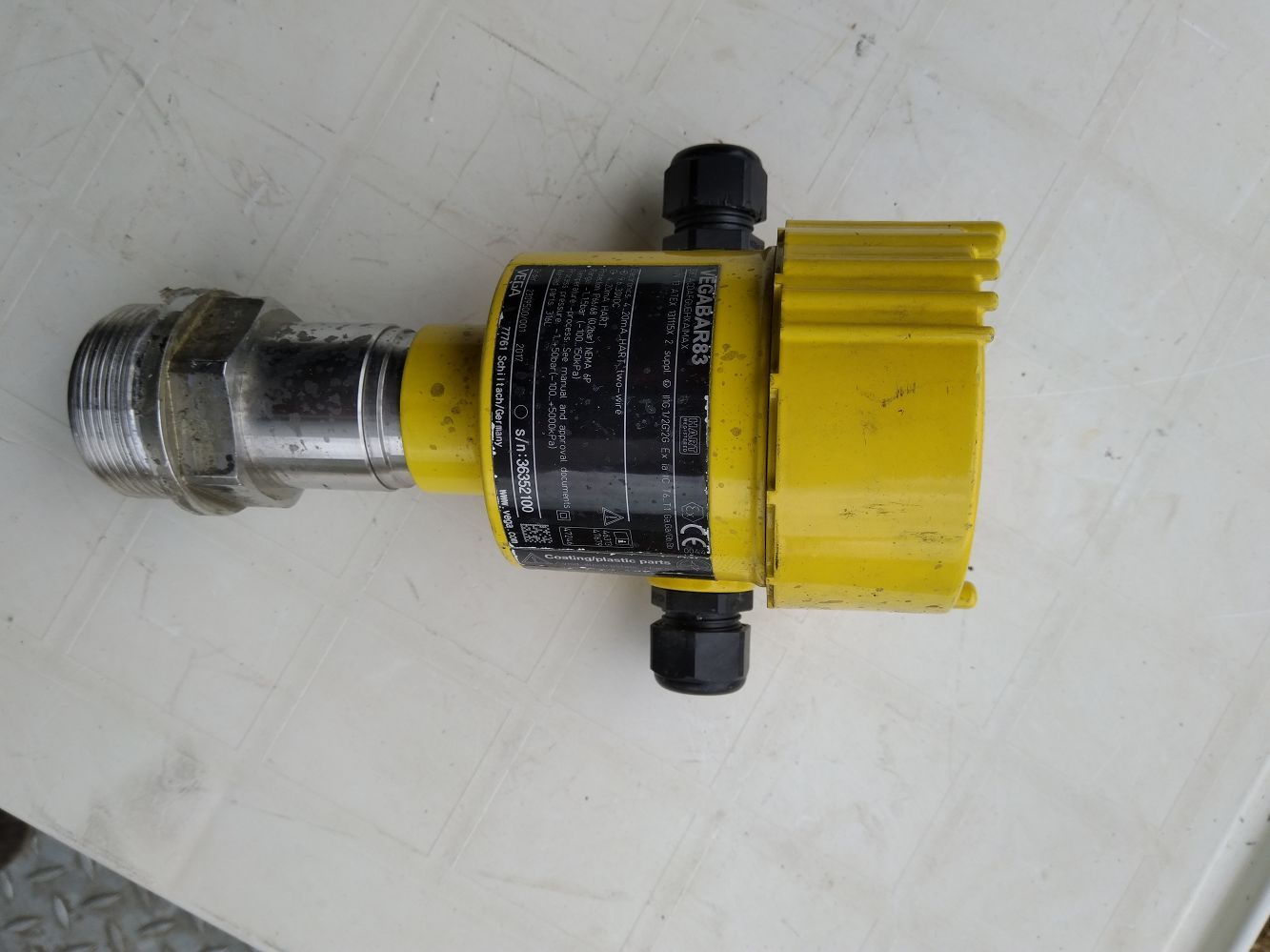

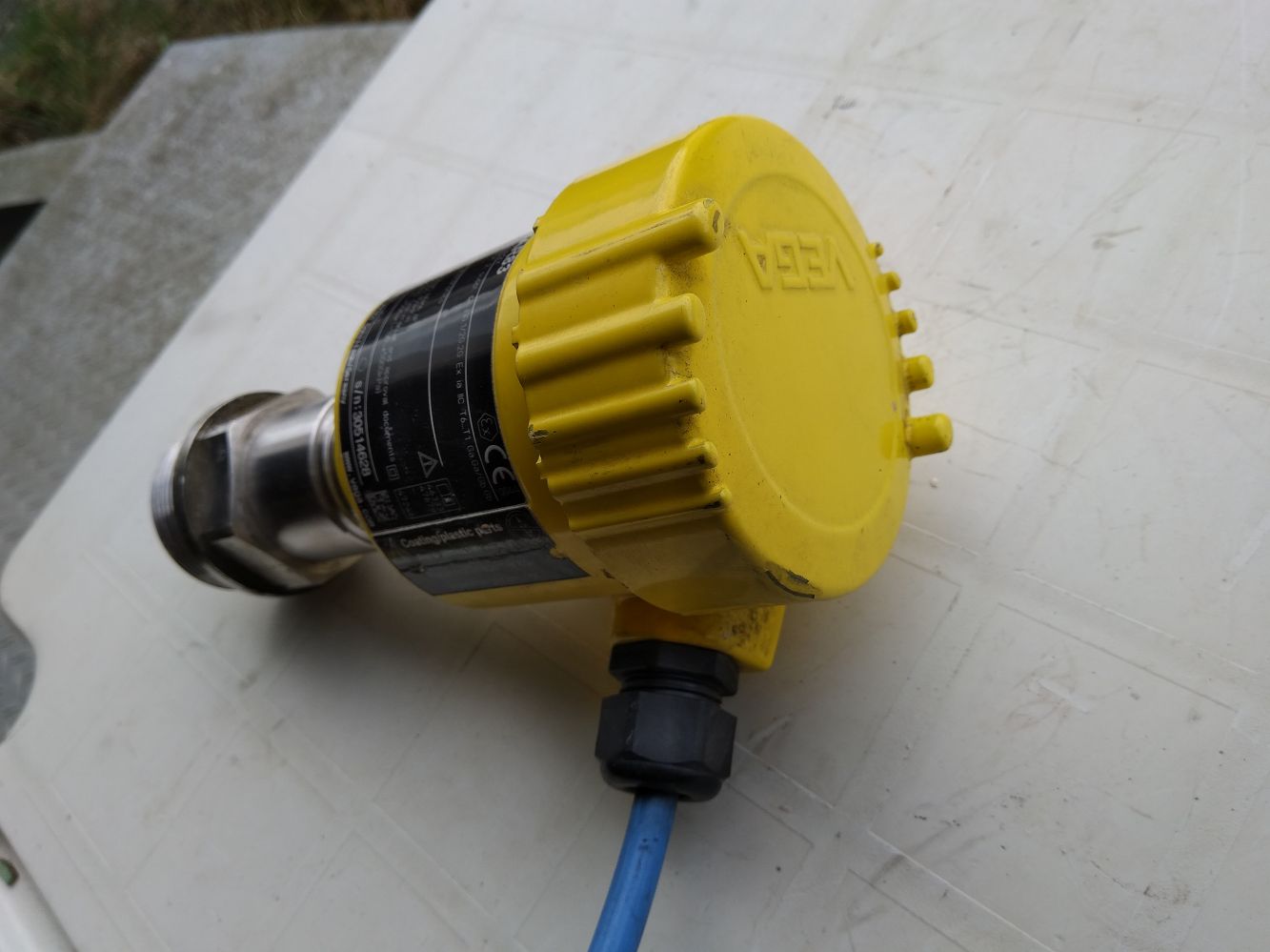

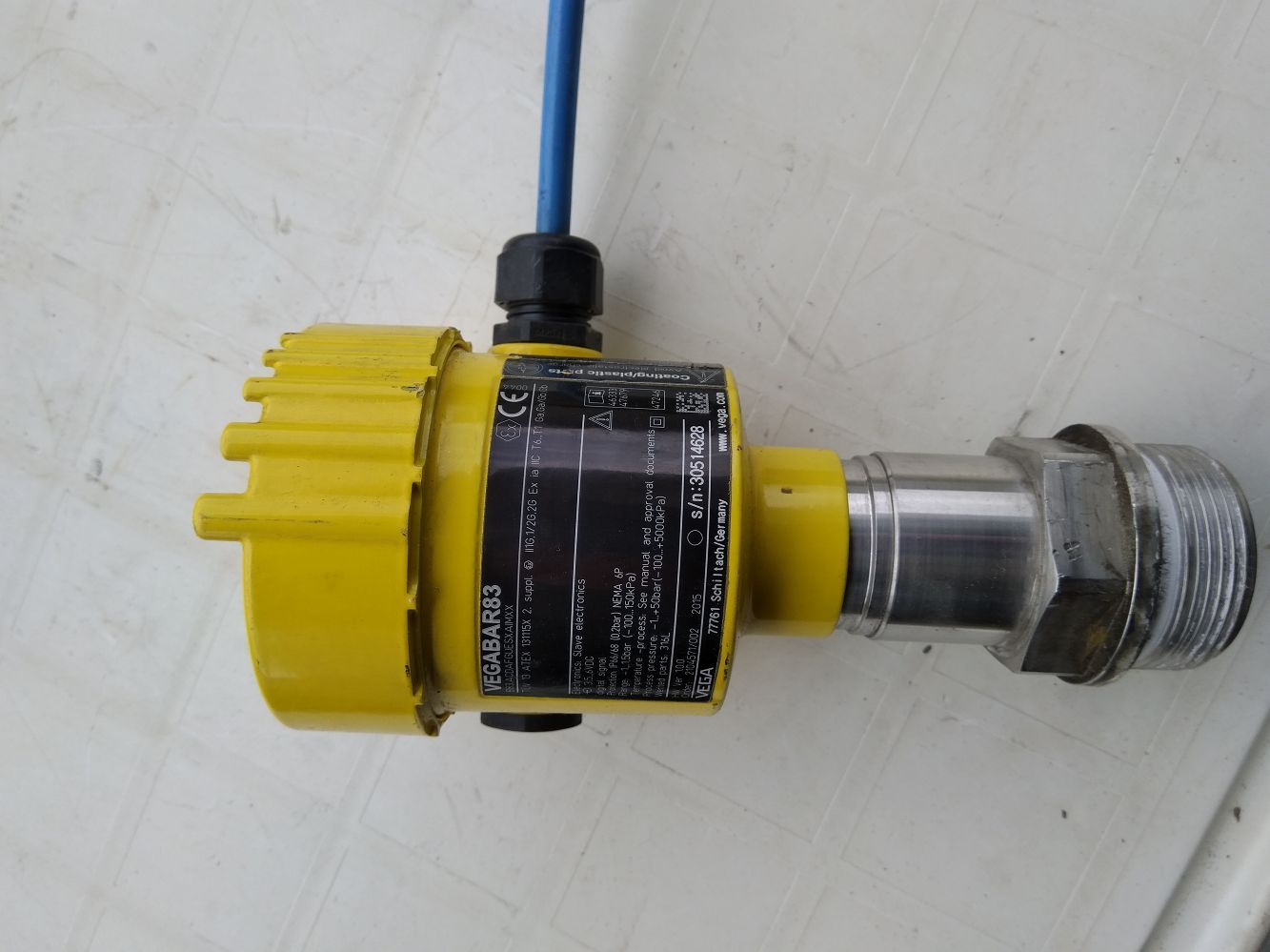

Vegabar 83
Pressure transducer
Item number MW 1121
Manufacturer: VEGA Grieshaber KG
Type: Vegabar 83, B83.AODAFGUEHXAIMAX, Atex
Version: Pressure transmitter with metallic measuring cell
as well as indicating and adjustment module PLICSCOM
Year of construction: Unknown
Process connection: Thread
Process pressure: -1 … 50 bar
Protection class: IP 66/68 NEMA 6P
Two-wire electronics: 4 ….. 20 mA/HART
Process temperature: - 40 …. +200°C
Operating voltage: 9,6 ….35 V DC
4 pieces in stock
VEGABAR 83 is a pressure transmitter for pressure measurement of gases, vapours and liquids in all industrial areas. VEGABAR 83 offers special advantages in applications with high pressures.
Price on request
in stock

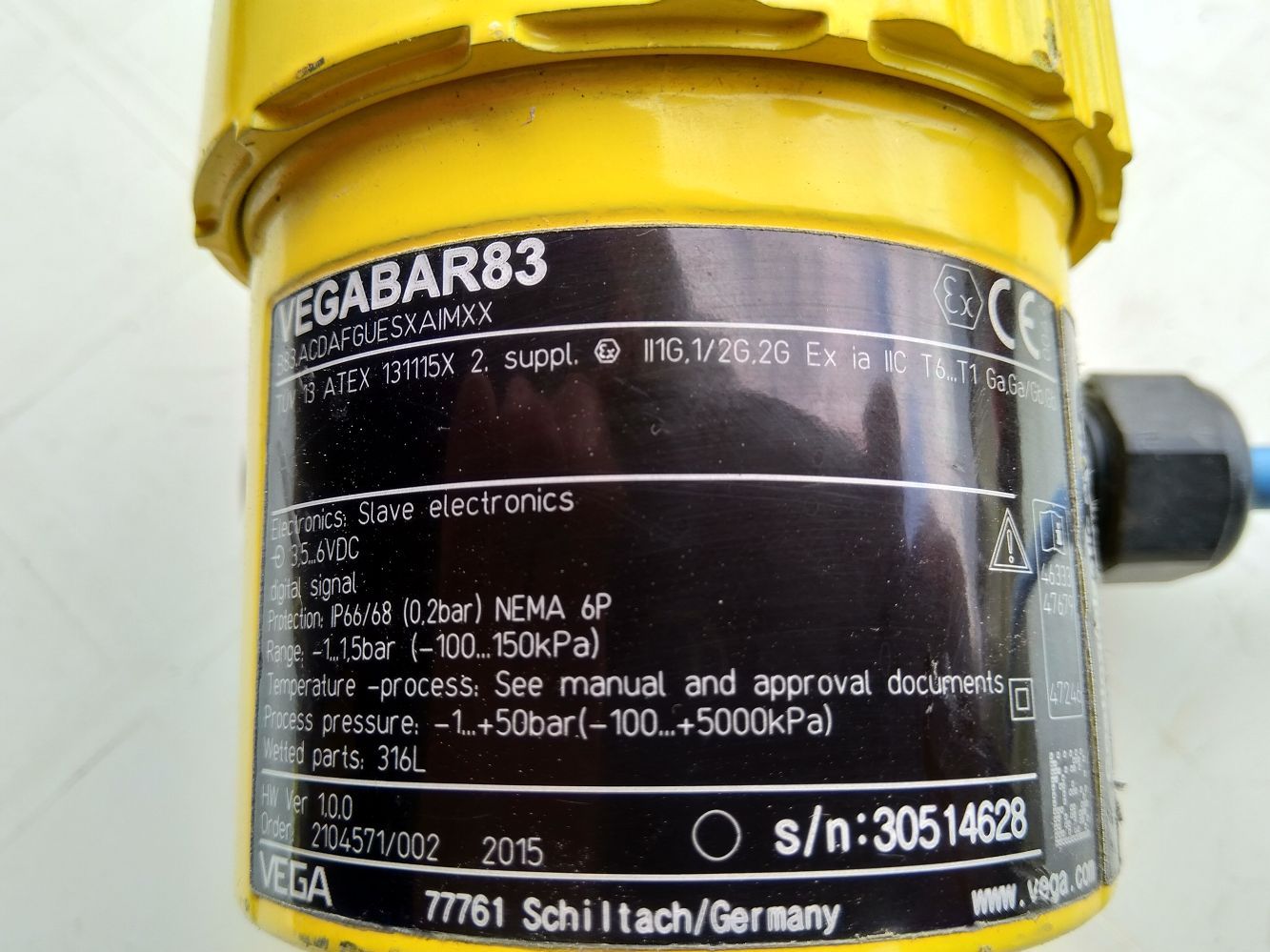

Vegabar 83
Pressure transducer
Item number MW 1122
Manufacturer: VEGA Grieshaber KG
Type: Vegabar 83, B83.AODAFGUEHXAIMAX, Atex
Version: Pressure transmitter with metallic measuring cell
Year of construction: Unknown
Process connection: Thread
Process pressure: -1 … 50 bar
Protection class: IP 66/68 NEMA 6P
Two-wire electronics: Slave Sensor
Process temperature: - 40 …. +200°C
Operating voltage: 3.5 ….6 V DC
2 pieces in stock
VEGABAR 83 is a pressure transmitter for pressure measurement of gases,
vapours and liquids in all industrial areas. VEGABAR 83 offers special advantages in applications with high pressures.
Price on request
in stock
Vegaswing 61
Vibration limit switch for liquids
Item number MW 1123
Manufacturer: VEGA Grieshaber KG
Type: Vegaswing 61 SWING61.CAGAVXMNX, Atex
Year of construction: Unknown
Process connection: Thread
Process pressure: -1 … 64 bar
Protection class: IP 66/67
Process temperature: - 50 …. +150°C
Operating voltage: For connection to isolation amplifiers according to
NAMUR IEC 60947-5-6, 8.2 V
3 pieces in stock
VEGASWING 61 is a universally applicable vibrating level switch for all
liquids. Regardless of the mounting position, it detects the limit level reliably
and with millimetre accuracy. The instrument can be used for full or empty
signal, as approved overfill protection or dry run or pump protection in vessels and pipelines.
Price on request
in stock

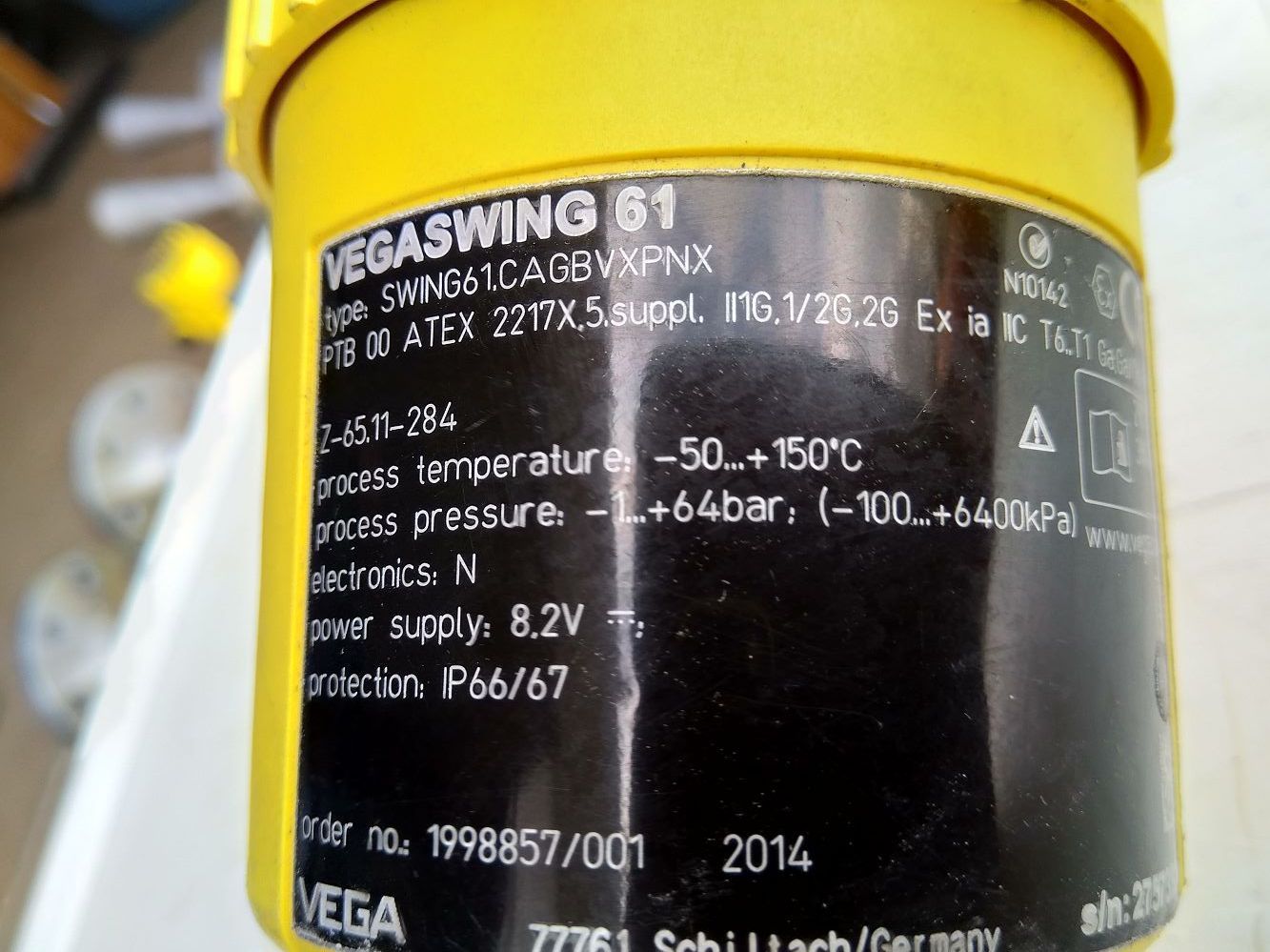

Vegaswing 61
Vibration limit switch for liquids
Item number MW 1124
Manufacturer: VEGA Grieshaber KG
Type: Vegaswing 61 SWING61.CAGBVXPNX, Atex
Year of construction: Unknown
Process connection: Thread
Process pressure: -1 … 64 bar
Protection class: IP 66/67
Process temperature: - 50 …. +150°C
Operating voltage: For connection to isolation amplifiers according to NAMUR IEC 60947-5-6, 8.2 V
6 pieces in stock
VEGASWING 61 is a universally applicable vibrating level switch for all liquids. Regardless of the mounting position, it detects the limit level reliably and with millimetre accuracy. The instrument can be used for full or empty signal, as approved overfill protection or dry run or pump protection in vessels and pipelines.
Price on request
in stock

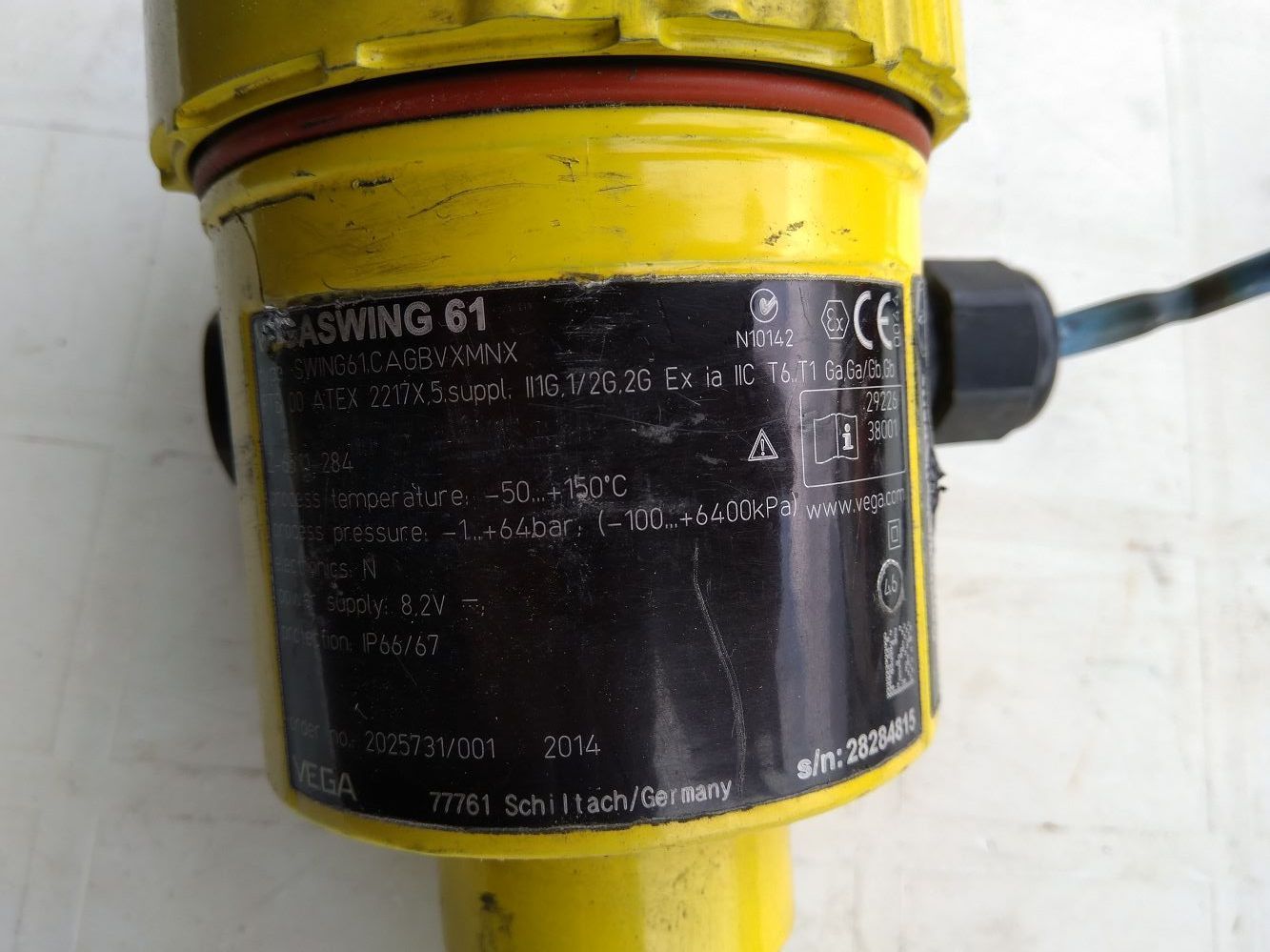

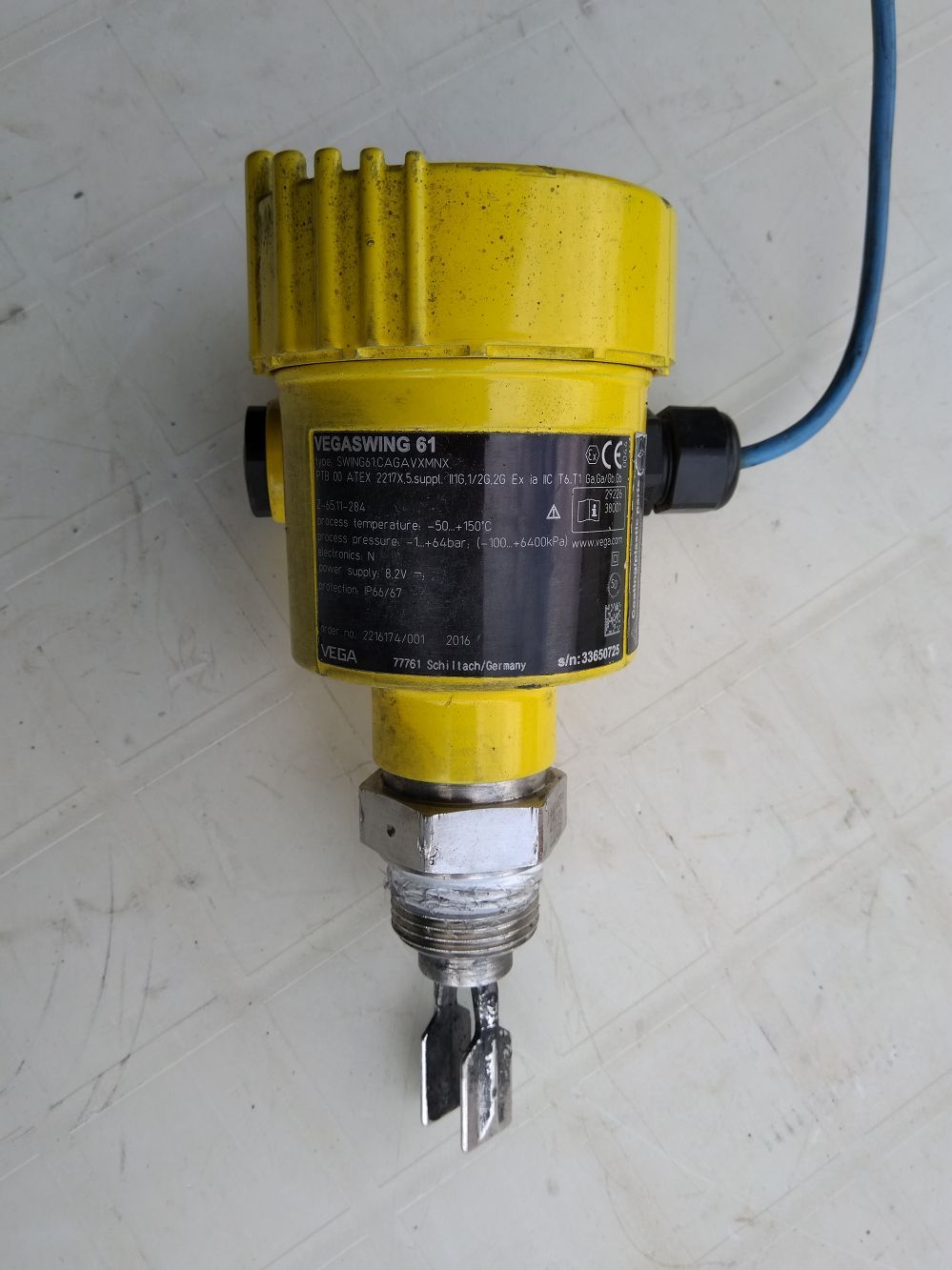

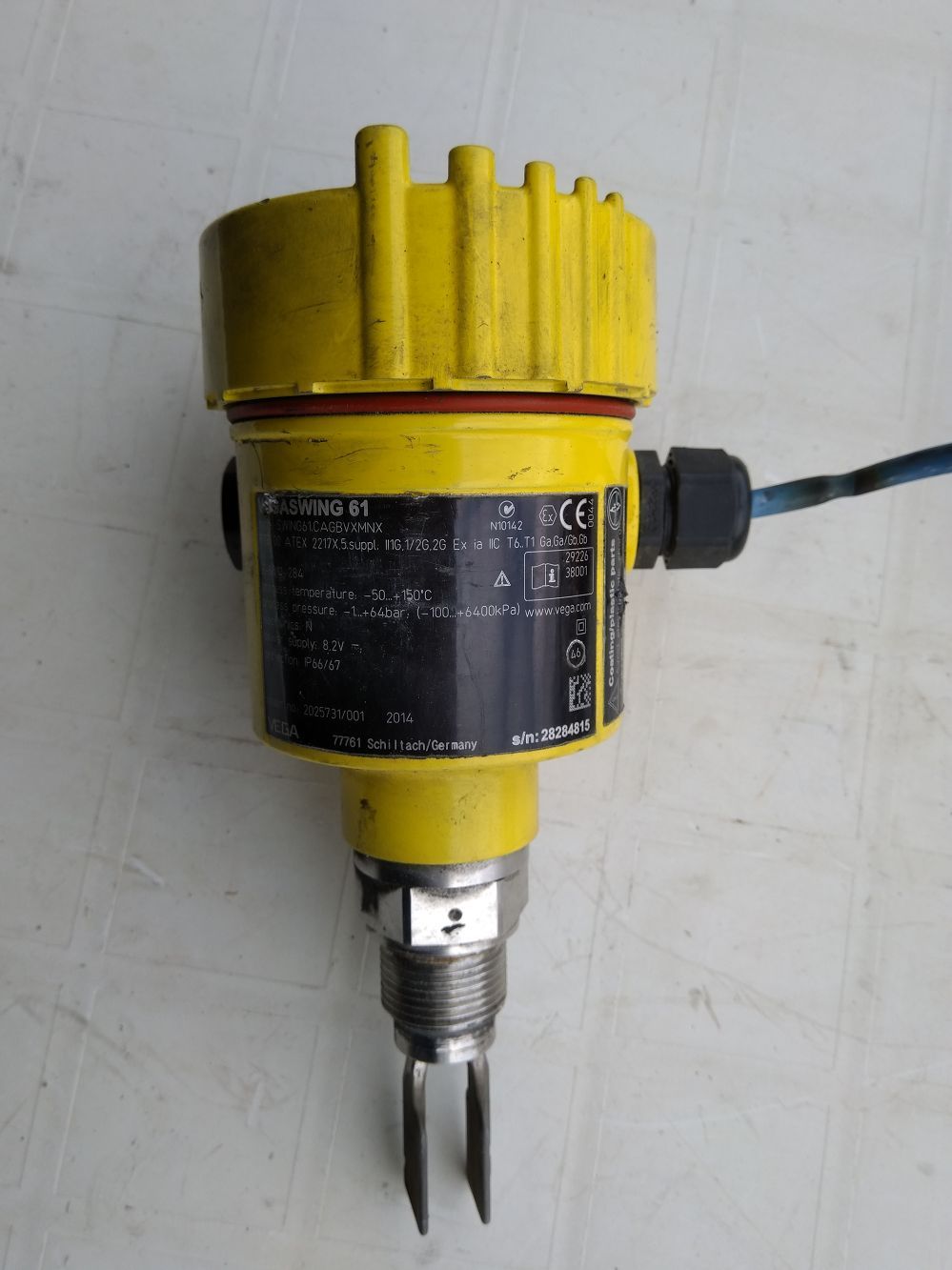

Vegaswing 61
Vibration limit switch for liquids
Item number MW 1125
Manufacturer: VEGA Grieshaber KG
Type: Vegaswing 61 SWING61.CAGBVXMNX, Atex
Year of construction: Unknown
Process connection: Thread
Process pressure: -1 … 64 bar
Protection class: IP 66/67
Process temperature: - 50 …. +150°C
Operating voltage: For connection to isolation amplifiers according to
NAMUR IEC 60947-5-6, 8.2 V
4 pieces in stock
VEGASWING 61 is a universally applicable vibrating level switch for all liquids. Regardless of the mounting position, it detects the limit level reliably and with millimetre accuracy. The instrument can be used for full or empty signal, as approved overfill protection or dry run or pump protection in vessels and pipelines.
Price on request
in stock

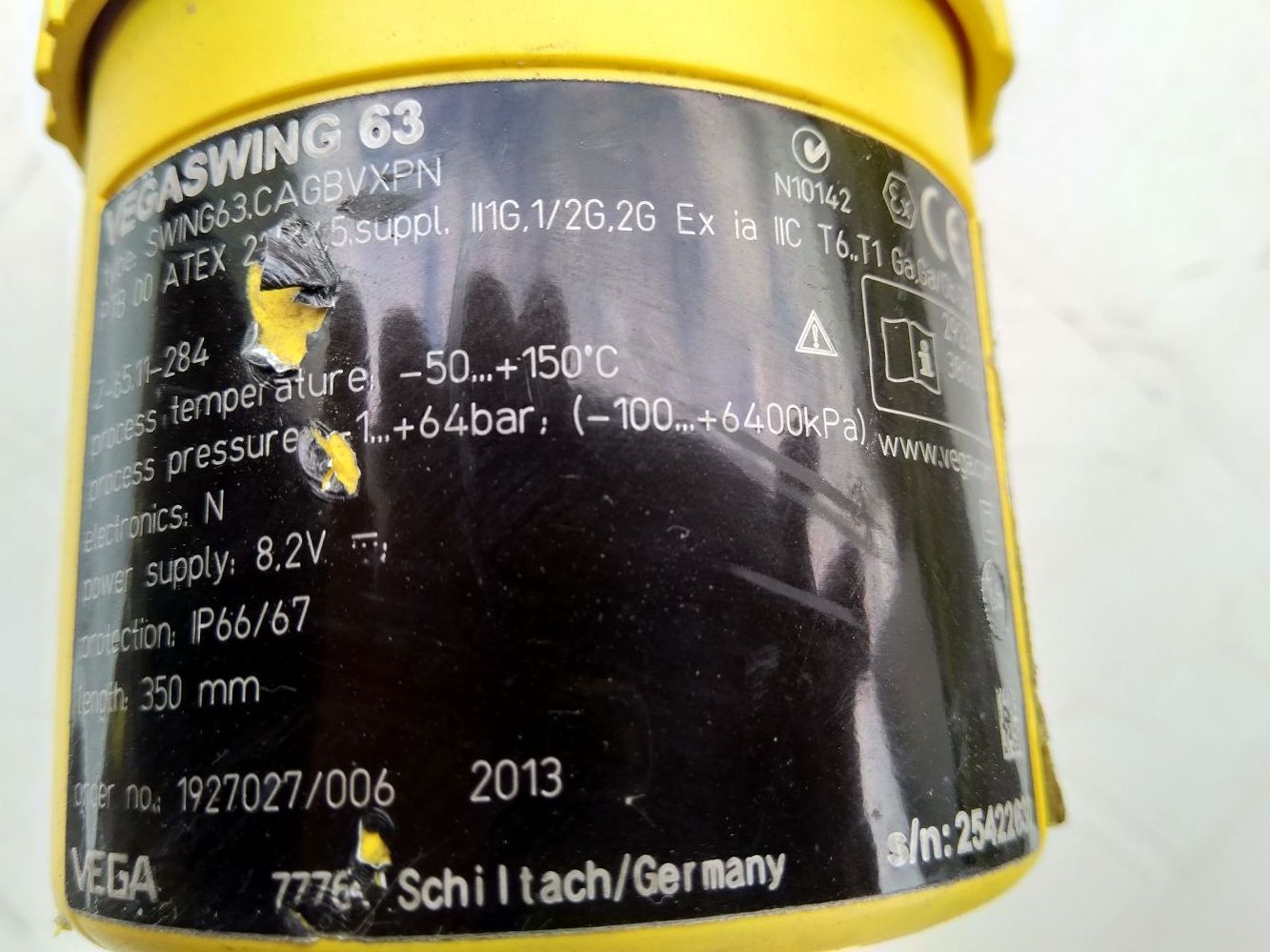

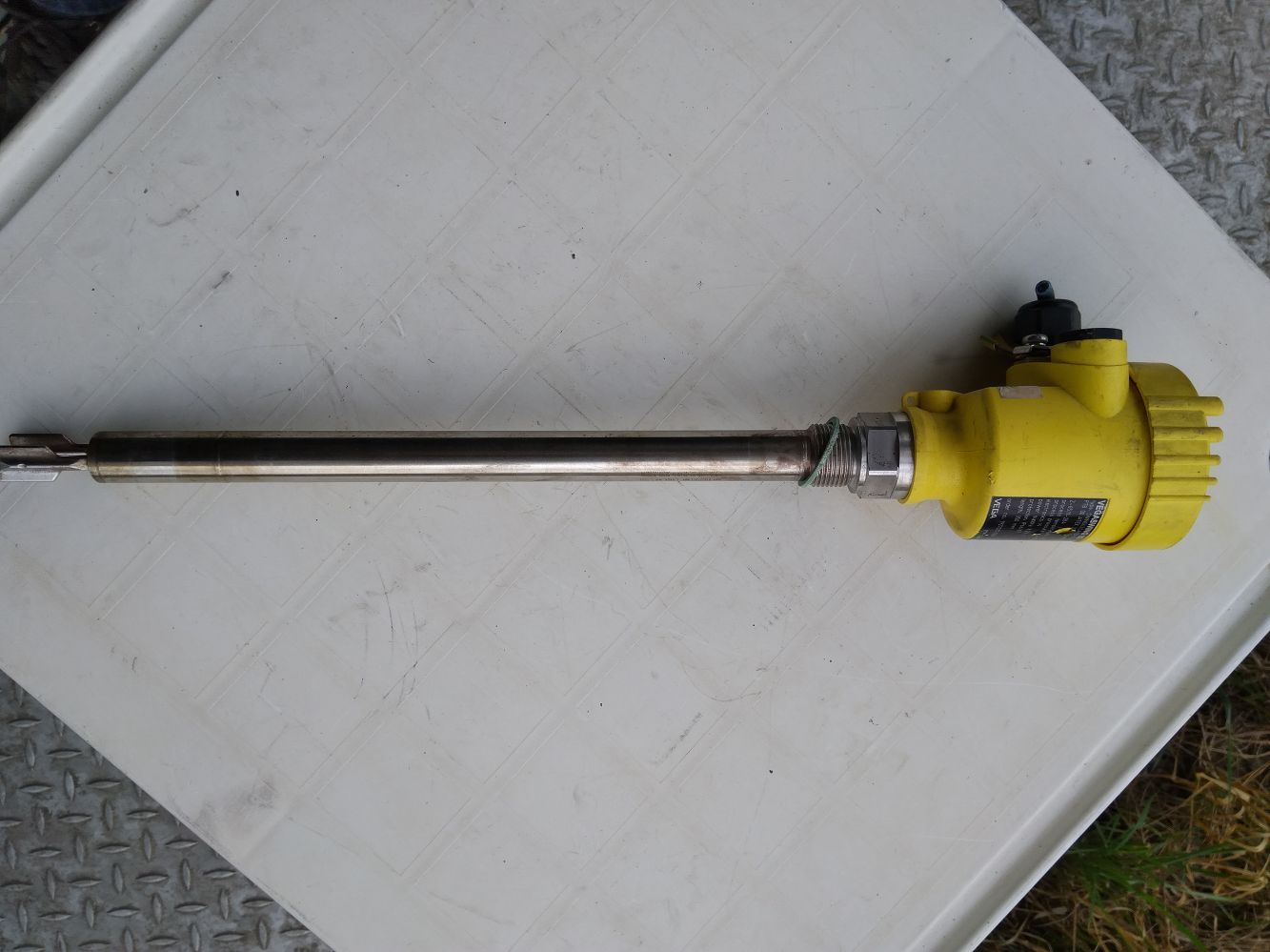

Vegaswing 63
Vibrating level switch with tube extension
for liquids
Item number MW 1126
Manufacturer: VEGA Grieshaber KG
Type: Vegaswing 63, SWING63.CAGBVXPN, Atex
Year of construction: Unknown
Process connection: Thread
Sensor length: 350 mm
Process pressure: -1 … 64 bar
Protection class: IP 66/67
Process temperature: - 50 …. +150°C
Operating voltage: For connection to isolation amplifiers according to NAMUR IEC 60947-5-6, 8.2 V
2 pieces in stock
VEGASWING 63 is a universally applicable vibrating level switch for all liquids. It detects the limit level reliably and with millimetre accuracy, independent of the mounting position. The instrument can be used for full or empty signal, as approved overfill protection or dry run or pump protection in vessels. The position of the switching point is determined via the tube extension. VEGASWING 63 offers highest reliability and safety in a wide range of applications.
Price on request
in stock

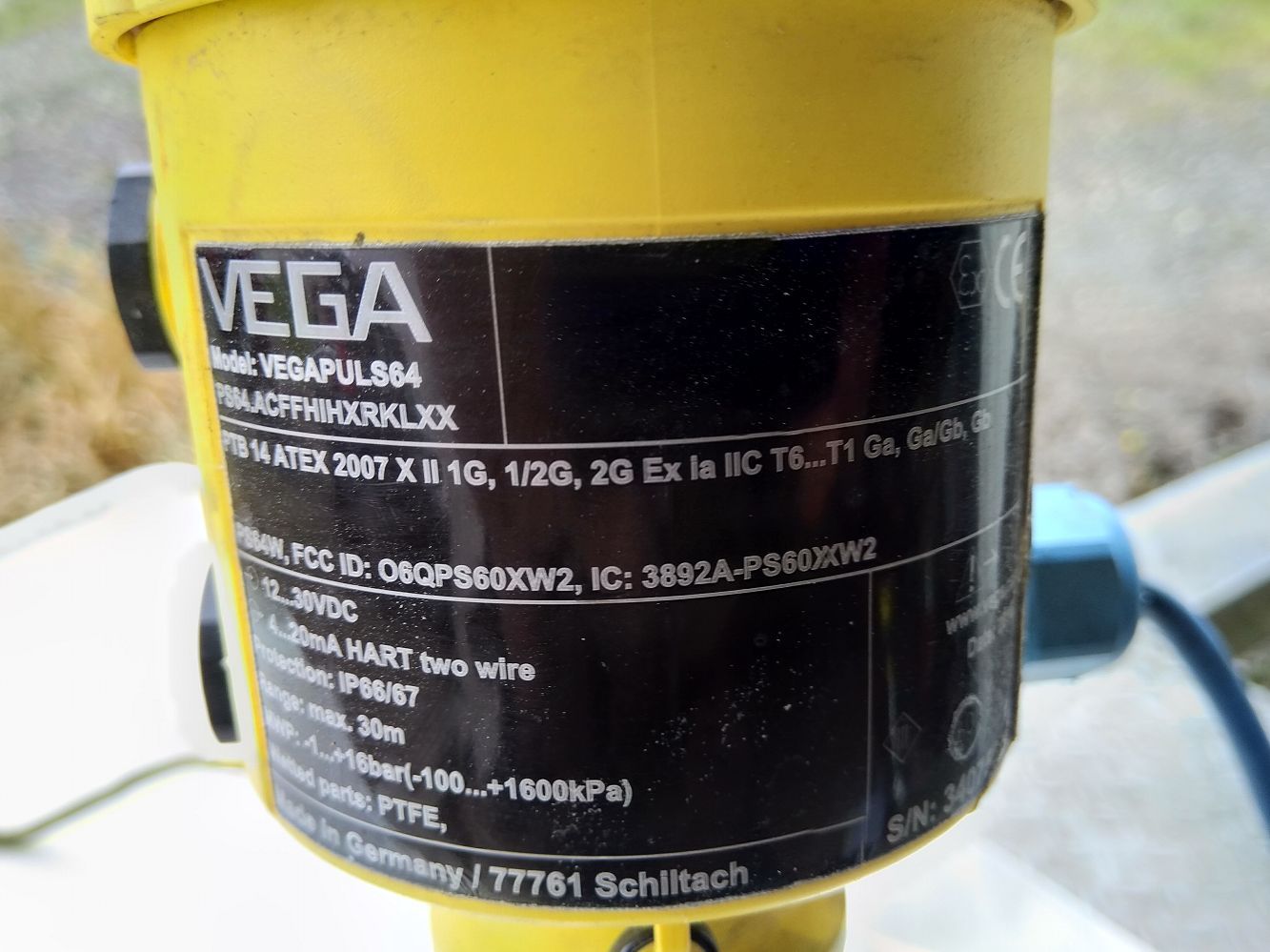

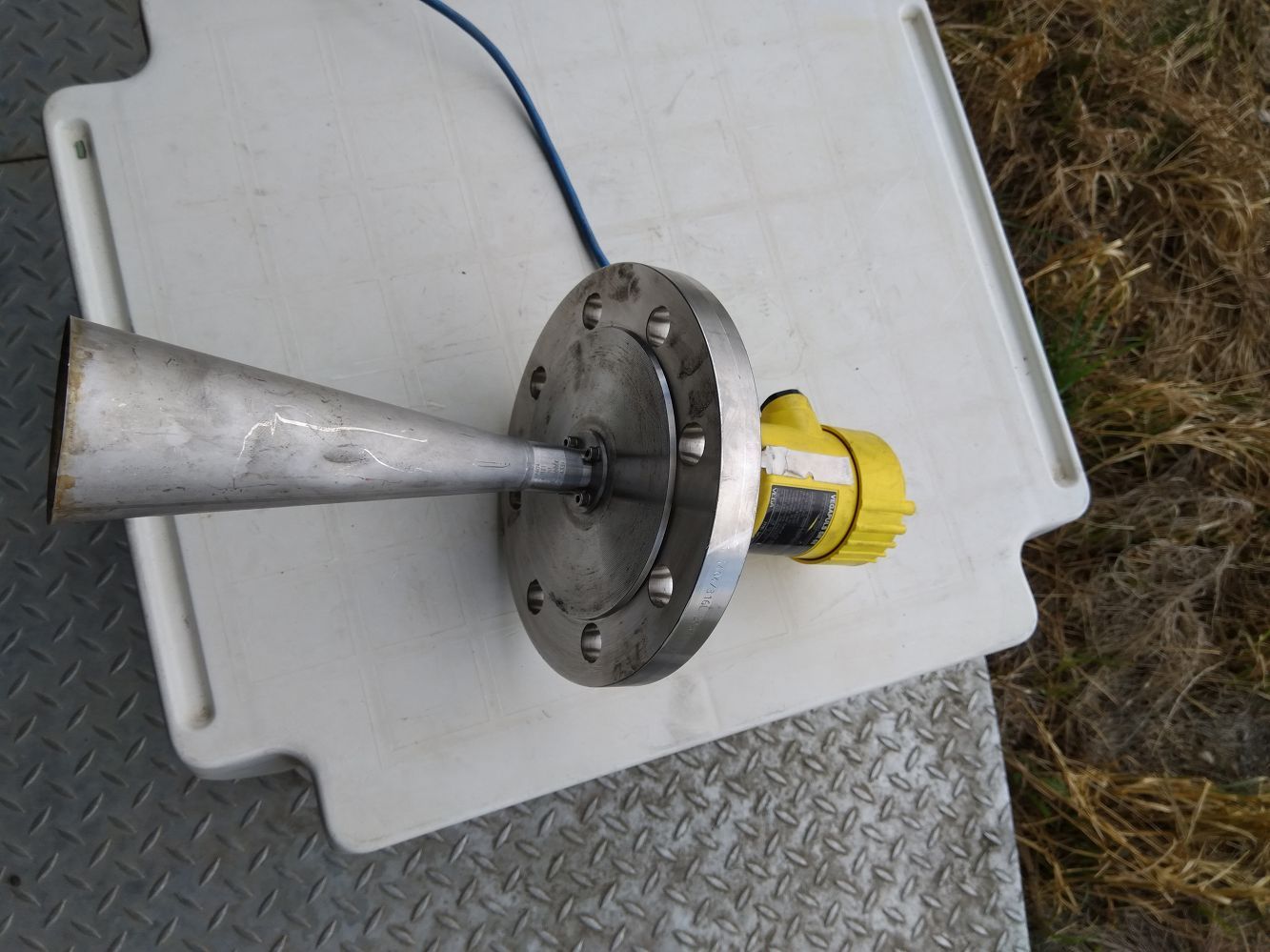

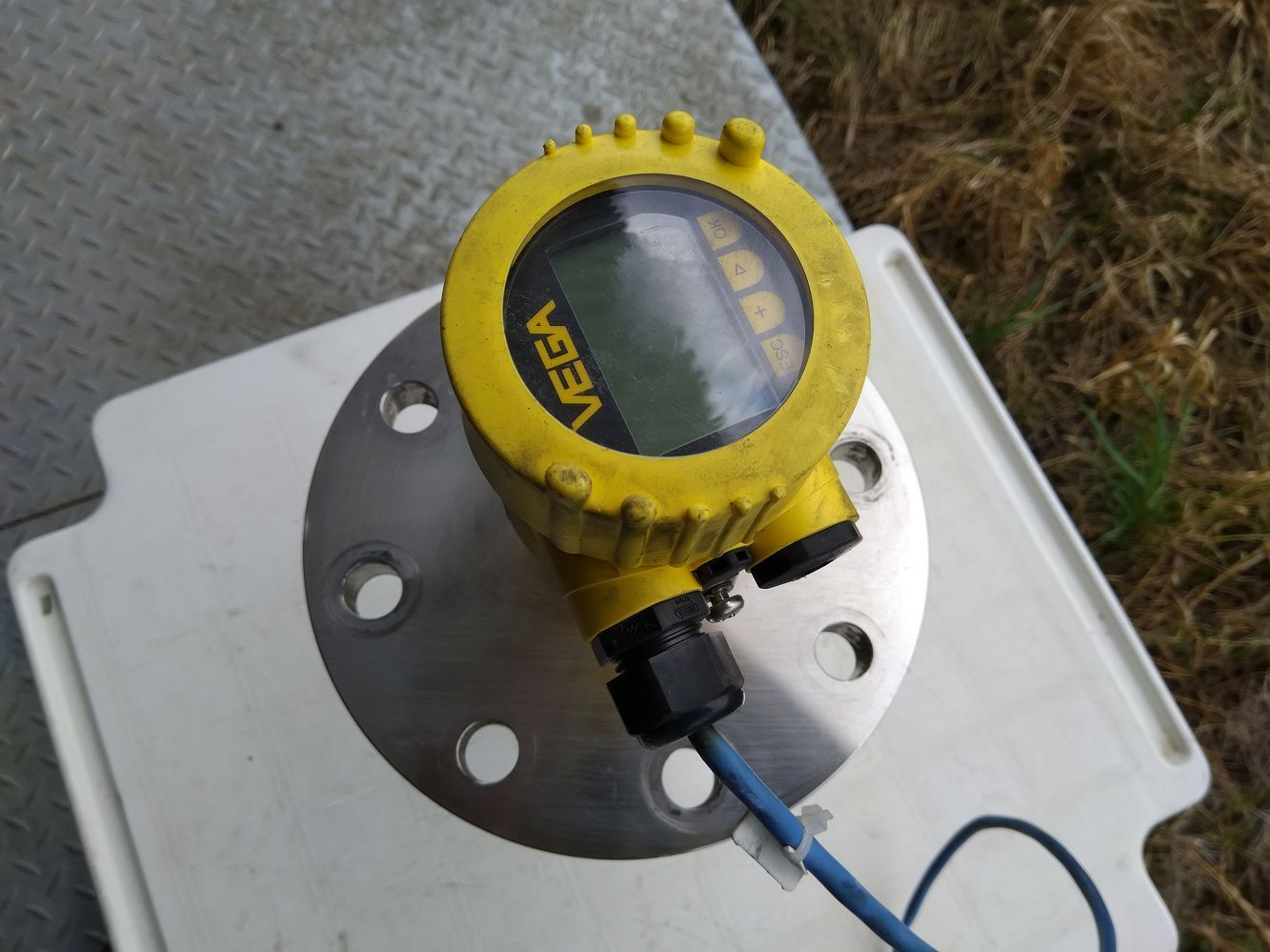

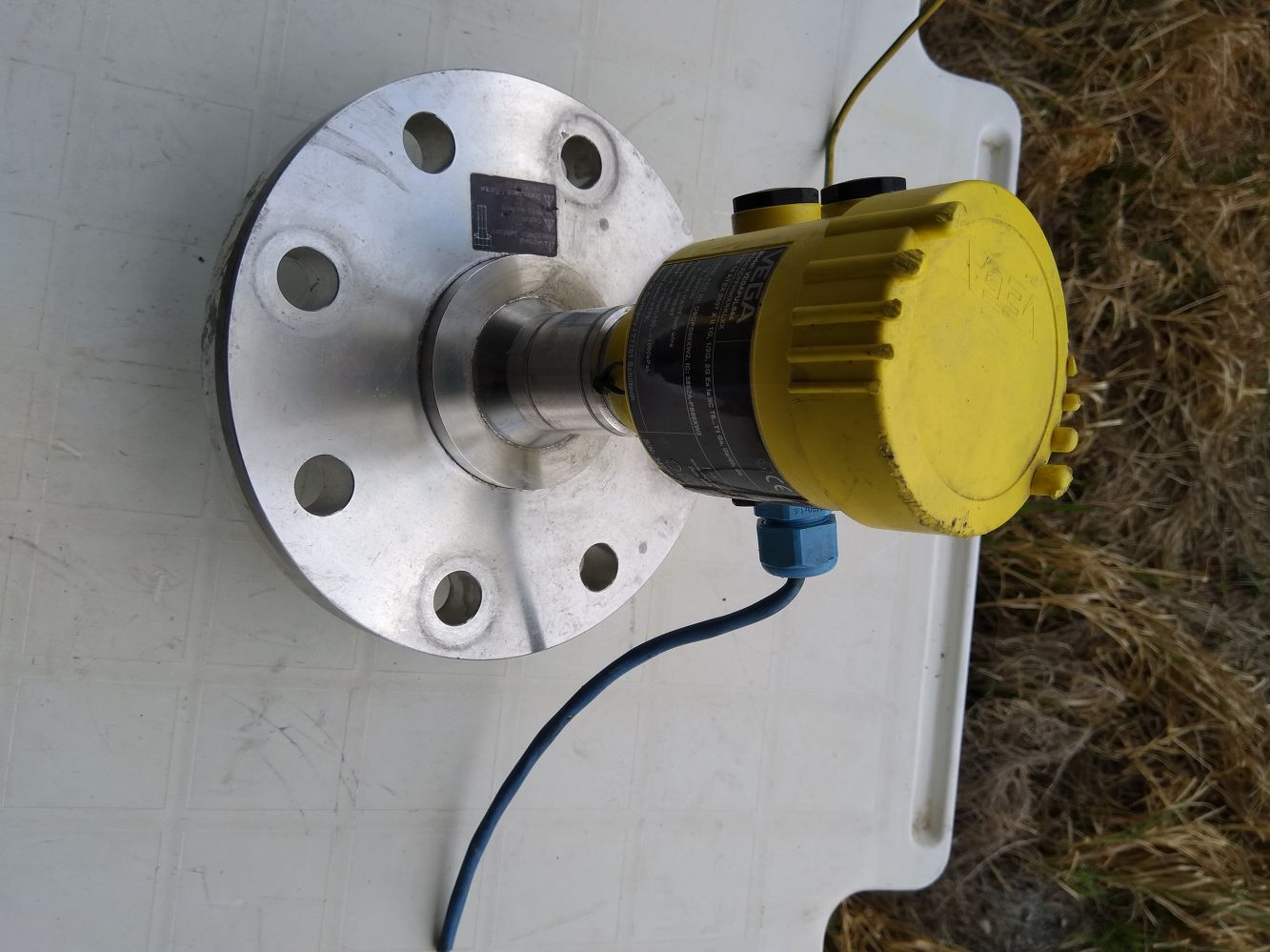

Vegapuls 64
Radar sensor for continuous level measurement
for liquids
Item number MW 1127
Manufacturer: VEGA Grieshaber KG
Type: Vegapuls 64, PS64.ACFFHIHXRKLXX, Atex
Year of construction: Unknown
Version: Flange, DN 80, PN40
Measuring range: to 30 m
Process pressure: -1 … 16 bar
Protectionclass: IP 66/67
Process temperature: - 196 …. +200°C
Operating voltage: 4 …. 20 mA/HART
2 pieces in stock
VEGAPULS 64 is a radar sensor for continuous level measurement of liquids. The small process fittings offer special advantages in small tanks or confined spaces. The very good signal focusing enables use in vessels with many installations, e.g. agitators and heating coils.
Price on request
in stock

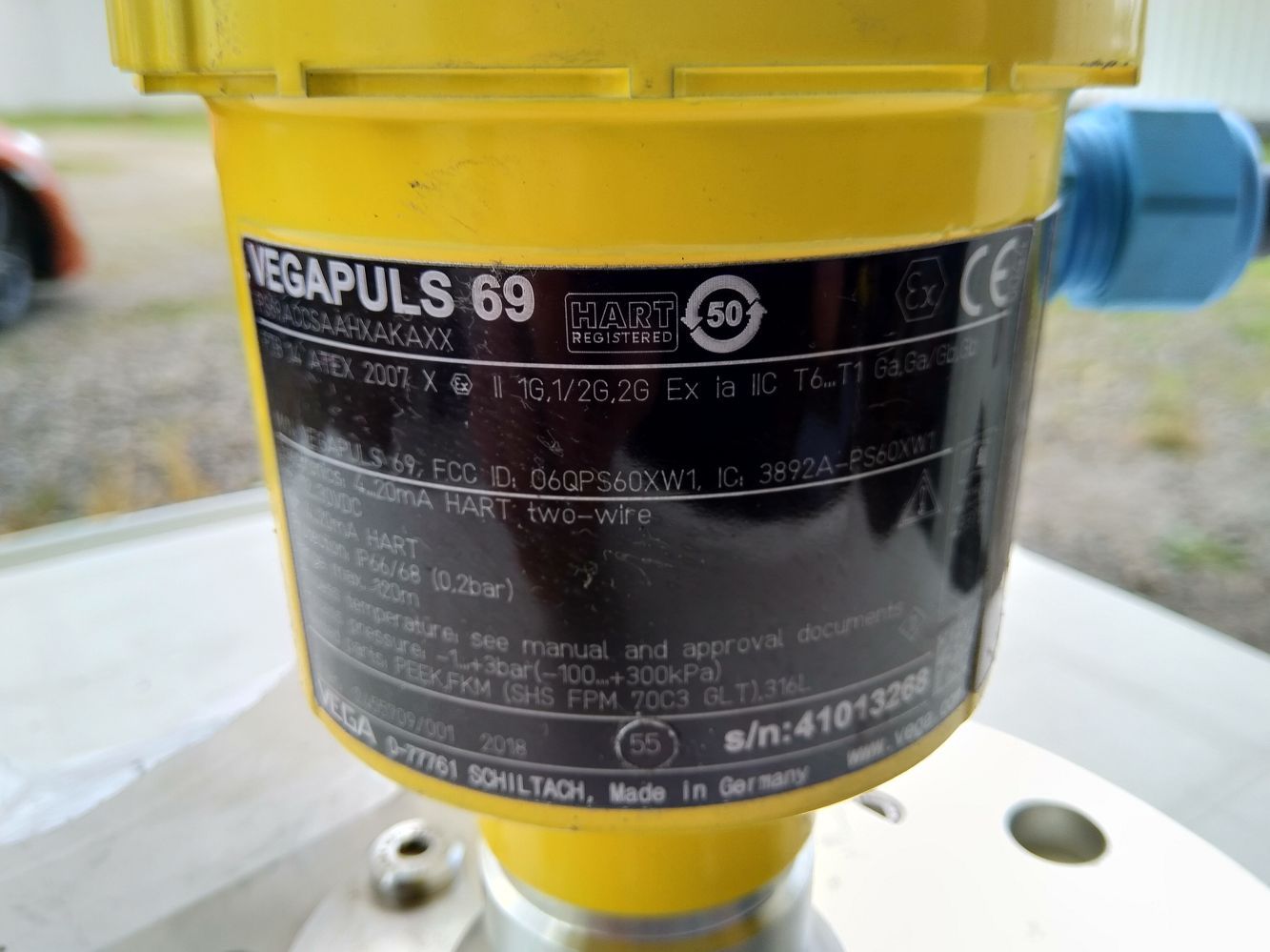

Vegapuls 69
Radar sensor for continuous level measurement
of bulk solids
Item number MW 1128
Manufacturer: VEGA Grieshaber KG
Type: Vegapuls 69, PS69.ACCSAAHXAKAXX, Atex
Year of construction: unbekannt
Version: Threaded flange, PG4 / PG9
Measuring range: to 120m
Process pressure: -1 … 3 bar
Protection class: IP 66/68
Process temperature: n- 40 …. +200°C
Operating voltage: 4 …. 20 mA/HART
1 piece in stock, unused.
VEGAPULS 69 is a sensor for continuous measurement of bulk solids under various process conditions. It is ideal for level measurement in very high silos, large bunkers and segmented vessels. VEGAPULS 69 can be
equipped with an encapsulated plastic antenna or a lens antenna integrated
in the metal flange. This enables optimum adaptation to the different areas of application.
Price on request
in stock

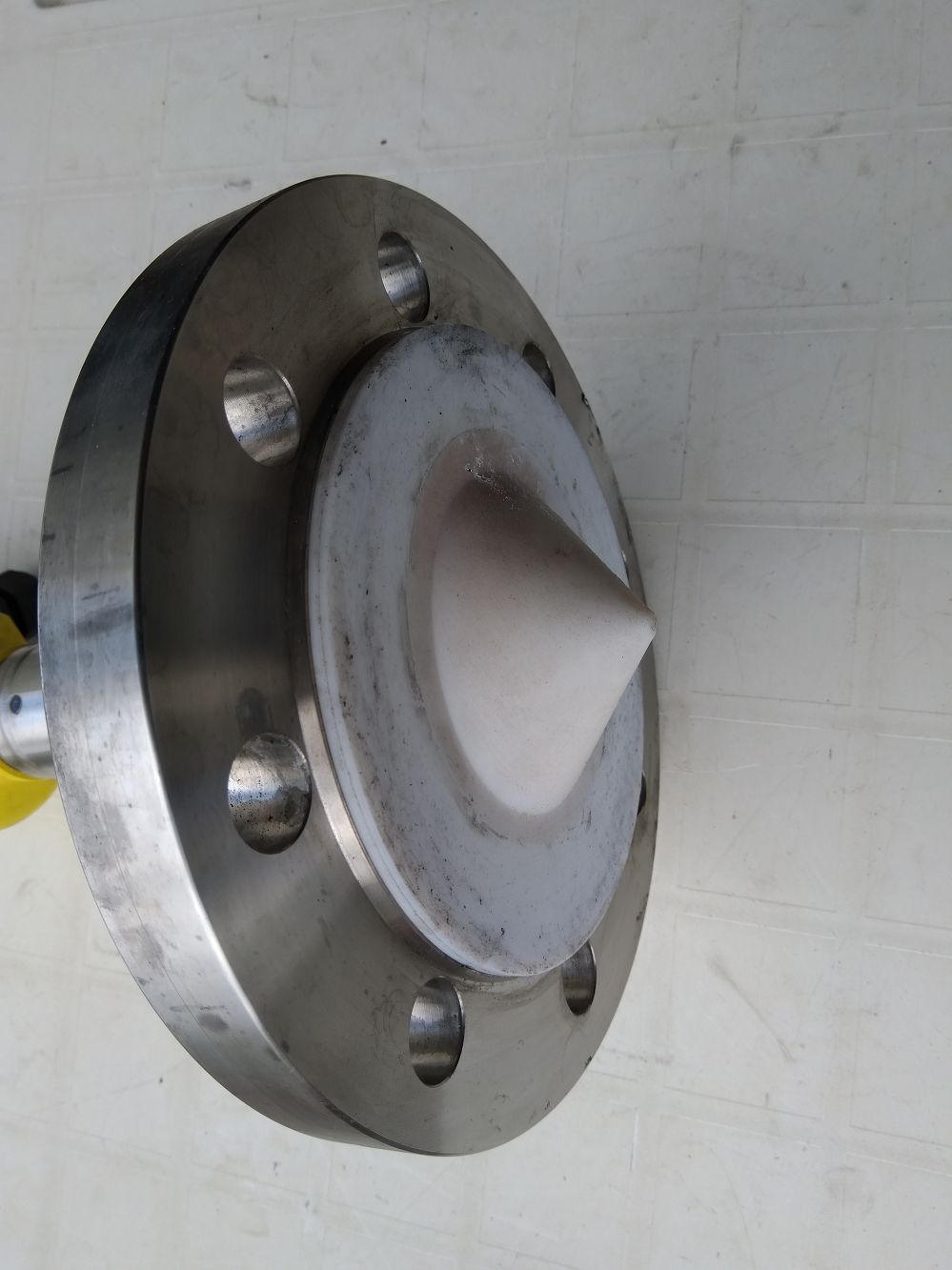

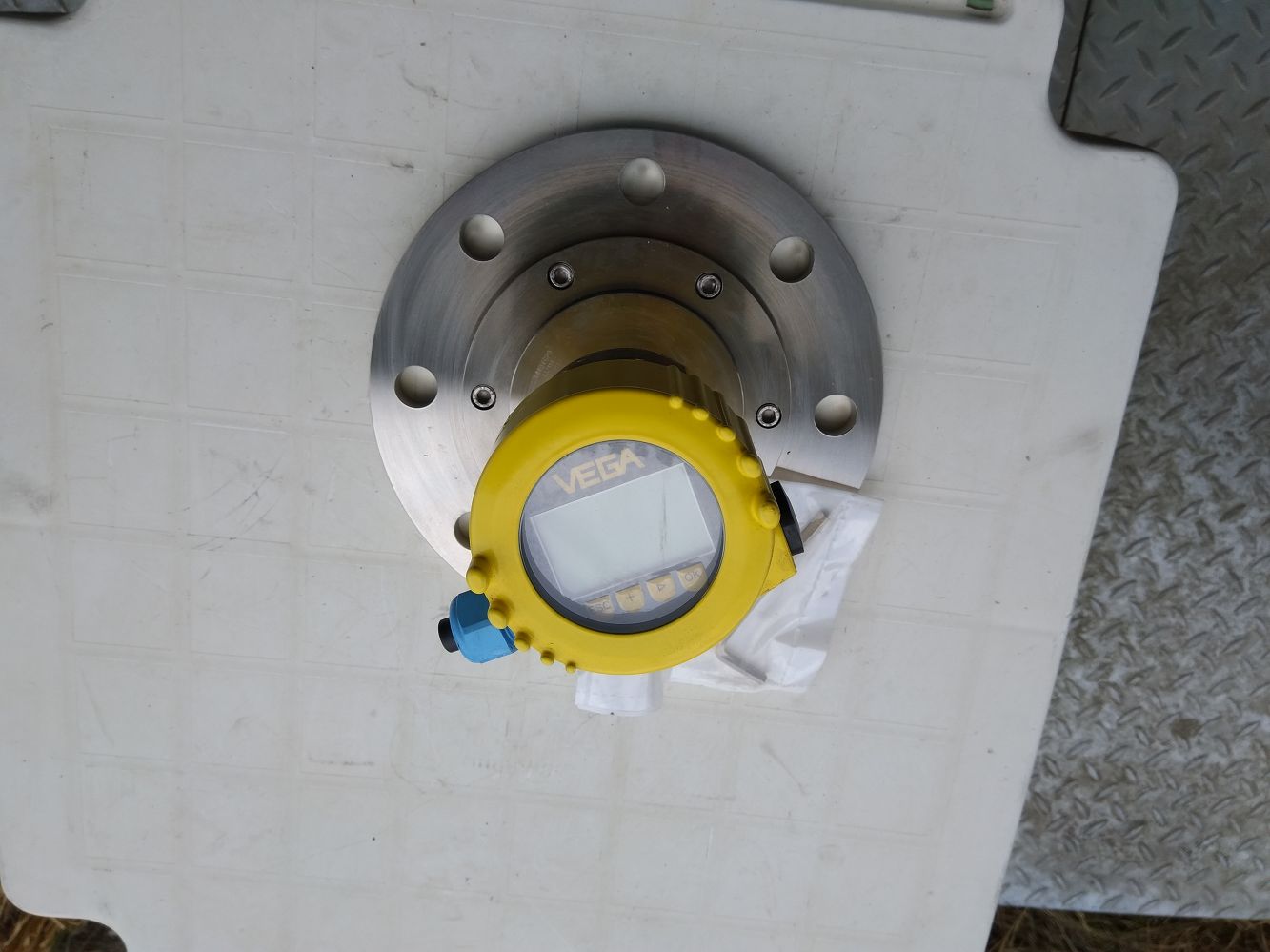

Vegapuls 63
Radar sensor for continuous level measurement
for liquids
Item number MW 1129
Manufacturer: VEGA Grieshaber KG
Type: Vegapuls 63, PS63.CXNFDHKMAX, Atex
Year of construction: Unknown
Version: Flange, DN 80
Measuring range: to 35 m
Process pressure: -1 … 16 bar
Protection class: IP 66/67
Process temperature: - 196 …. +200°C
Operating voltage: 4 …. 20 mA/HART
1 piece in stock
VEGAPULS 63 is a radar sensor for continuous level measurement of aggressive liquids or for hygienic requirements. It is suitable for applications in storage tanks, process vessels, dosing vessels and reactors. The encapsulated antenna system of VEGAPULS 63 protects against contamination and guarantees maintenance-free continuous operation. The front-flush mounting ensures optimum cleaning even with high hygiene requirements.
Price on request
in stock

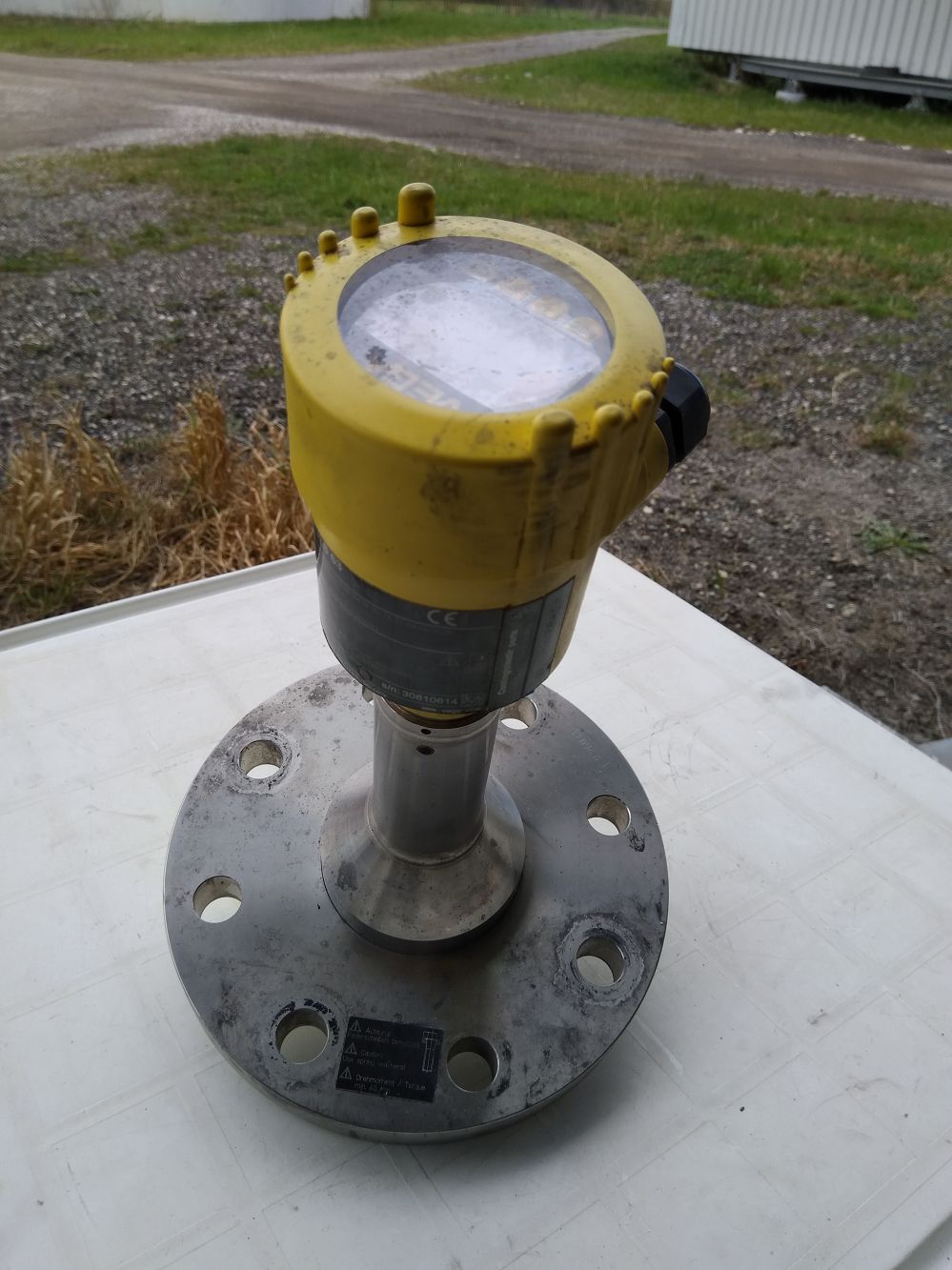

Vegapuls SR68
Radar sensor for continuous level measurement
for bulk solids
Item number MW 1130
Manufacturer: VEGA Grieshaber KG
Type: Vegapuls SR68, PSSR68.XXDFD2HKMAX, Atex
Year of construction: Unknown
Version: Flange, DN 80, PN 40
Measuring range: to 30 m
Process pressure: -1 … 40 bar
Protection class: IP 66/67
Process temperature: - 40 …. +250°C
Operating voltage: 4 …. 20 mA/HART
1 piece in stock
VEGAPULS SR 68 is a radar sensor for continuous measurement of bulk solids even under difficult process conditions. It is particularly suitable for level measurement in high silos and large bunkers. Due to its simple setup and reliable, maintenance-free operation, VEGAPULS SR 68 is an economical solution.
Price on request
in stock
Vegapuls SR68
Radar sensor for continuous level measurement
for bulk solids
Item number MW 1131
Manufacturer: VEGA Grieshaber KG
Type: Vegapuls SR68, PSSR68.CXDFD2HKMAX, Atex
Year of construction: Unknown
Version: Flange, DN 80, PN 40
Measuring range: to 30 m
Process pressure: -1 … 40 bar
Protection class: IP 66/67
Process temperature: - 40 …. +250°C
Operating voltage: 4 …. 20 mA/HART
1 piece in stock
VEGAPULS SR 68 is a radar sensor for continuous measurement of bulk solids even under difficult process conditions. It is particularly suitable for level measurement in high silos and large bunkers. Due to its simple setup and reliable, maintenance-free operation, VEGAPULS SR 68 is an economical solution.
Price on request
in stock
